Removal [12/2021 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH
    Refer to PROCEDURE - Step 4
  2. REMOVE DOOR ASSIST GRIP COVER LH
    Refer to PROCEDURE - Step 3
  3. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  4. REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6

  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  6. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone of the front No. 2 speaker assembly.

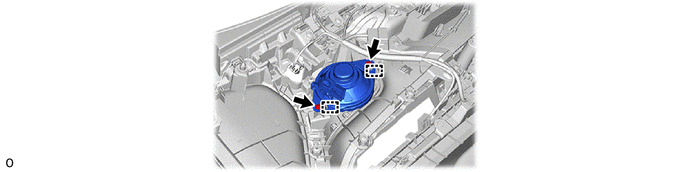

    1. GTY1071209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone of the front No. 1 speaker assembly.

    HINT:

    The illustrations are representative examples and details may differ.

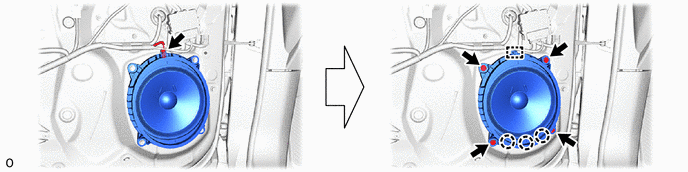

    1. GTY1071478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
