Installation [05/2023 - ]: Procedure

  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Lift up the instrument panel safety pad sub-assembly and set it on the vehicle as shown in the illustration.
      GTY836869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    2. Push as shown in the illustration to insert the guide.
      GTY830942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    3. Install the instrument panel safety pad sub-assembly with the 8 bolts <D> and nut <C>.
      GTY949426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cooler Thermistor (Recirculated Air Temperature) - -
      Bolt <D> Nut <C>
    4. Attach the claw to install the cooler thermistor (recirculated air temperature) to the instrument panel safety pad sub-assembly.
    5. Attach the clamp.
    6. Connect the connector.
      GTY838293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the 2 connectors.
      GTY825270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Attach the clamp.
      GTY825305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the connector and attach the clamp.
      GTY825306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Attach the clamp.
      GTY1242199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Install the 2 bolts <H>.
      GTY949451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <H>

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

    12. Attach the clamp and connect the airbag connector.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector: Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [05/2023 - ]

      GTY1242886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 3 SIDE DEFROSTER NOZZLE DUCT
    1. Install the No. 3 side defroster nozzle duct.
      GTY952003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 4 SIDE DEFROSTER NOZZLE DUCT

    HINT:

    Use the same procedure described for the No. 3 side defroster nozzle duct.

  4. INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
    1. Install the No. 3 instrument panel to cowl brace sub-assembly with the bolt <A> and nut <B>.
      GTY953079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Clearance Sonar System
      Bolt <A>
      Nut <B>

      Bolt <A>

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      Nut <B>

      Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

    2. Attach the clamp.
  5. INSTALL CENTER HEATER TO REGISTER SUB DUCT
    1. Install the heater to register center sub duct with the 2 screws <E> or <G>.
      GTY949434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <E> or <G>
  6. INSTALL NO. 1 AIR DUCT
    1. Insert the No. 1 air duct in the direction of the arrow shown in the illustration to install it with the 2 bolts.
      GTY805087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

  7. INSTALL STEERING WHEEL SWITCH HOUSING

    Refer to INSTALLATION [05/2023 - ]

  8. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 3

  10. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Insert the guide in direction indicated by the arrow shown in the illustration.
      GTY825674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Attach the claw to install the No. 1 instrument panel speaker panel sub-assembly as shown in the illustration.
    3. Attach the claw to install the connector holder to the vehicle.
      GTY834912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the 2 connectors.
      GTY810001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Insert the guide in direction indicated by the arrow shown in the illustration.
      GTY823281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Attach the claw to install the No. 2 instrument panel speaker panel sub-assembly as shown in the illustration.
  12. INSTALL FRONT PILLAR GARNISH LH

    See step  6

  13. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  14. INSTALL CENTER INSTRUMENT PANEL REINFORCEMENT SUB-ASSEMBLY
    1. Install the center instrument panel reinforcement sub-assembly with the 3 bolts <D>.
      GTY1243455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <D>
  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
    1. Attach the claw as shown in the illustration.
      GTY1241735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    2. Install the instrument cluster finish panel ornament with the 3 bolts <D>.
      GTY1243224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <D> - -
  16. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Attach the clamp and pull the hook.
      GTY835165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Hook
    2. Connect the 3 connectors.
    3. Attach the claw in the direction of the arrow shown in the illustration.
      GTY805235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the glove compartment door assembly with the 2 bolts <D> and 2 screws <F> or <G>.
      GTY949448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <D>
      Screw <F> or <G>
    5. Attach the clamp.
  17. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. INSTALL NO. 2 GLOVE COMPARTMENT PANEL
    1. Attach the claw in the direction of the arrow shown in the illustration to install the No. 2 glove compartment panel.
      GTY838648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  19. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Insert the guide in direction indicated by the arrow shown in the illustration.
      GTY781853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
    3. Lift up the No. 2 instrument panel under cover sub-assembly in the direction of the arrow shown in the illustration and attach the claw to install it.
      GTY814053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  20. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Remove the protective tape.
    2. Connect the connector.
    3. Attach the claw as shown in the direction of the arrow shown in the illustration to install the No. 2 instrument panel register assembly.
      GTY1242056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  21. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

    Refer to PROCEDURE - Step 4

  22. INSTALL ANTENNA DIVIDER

    Refer to PROCEDURE - Step 3

  23. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 5

  24. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1

  25. INSTALL INSTRUMENT PANEL REGISTER BEZEL
    1. Attach the claw as shown in the direction of the arrow shown in the illustration to install the instrument panel register bezel.
      GTY784835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  26. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Attach the clamp and connect the 2 connectors.
      GTY838333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the clamp and connect the 2 connectors.
      GTY825489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the clip in the direction of the arrow shown in the illustration.
      GTY834849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Attach the claw and align the guide as shown in the direction of the arrow shown in the illustration to install the No. 1 instrument panel safety pad sub-assembly.
      GTY784123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    5. Install the 3 bolts <D>.
      GTY949442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <D>
  27. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Align the guide and attach the claw, connect the hood lock control lever sub-assembly to the No. 1 instrument panel safety pad sub-assembly.
      GTY825486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
    1. Attach the claw and guide as shown in the direction of the arrow shown in the illustration to install the No. 1 instrument panel garnish sub-assembly.
      GTY1242611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  29. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

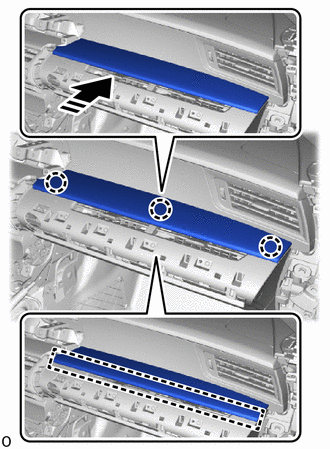

    1. Attach the claw and guide as shown in the direction of the arrow shown in the illustration to install the No. 2 instrument panel garnish sub-assembly.
      GTY1242751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  30. INSTALL MULTI-DISPLAY WITH BRACKET

    Refer to PROCEDURE - Step 3

  31. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD COVER

    Refer to PROCEDURE - Step 4

  32. INSTALL INSTRUMENT PANEL SAFETY PAD COVER

    Refer to PROCEDURE - Step 5

  33. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [05/2023 - ]

  34. INSTALL NO. 1 GLOVE COMPARTMENT PANEL
    1. Attach the clip in the direction of the arrow shown in the illustration to install the No. 1 glove compartment panel.
      GTY795327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  35. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Insert the guide in direction indicated by the arrow shown in the illustration.
      GTY828222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
    3. Attach the claw in the direction of the arrow shown in the illustration.
      GTY836126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Attach the claw in the direction of the arrow shown in the illustration to install the No. 1 instrument panel under cover sub-assembly.
      GTY782804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    5. Install the 2 screws.
      GTY825269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER LH
    1. Attach the claw and clip in the installation direction shown in the illustration.
      GTY835564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the claw in the direction of the arrow shown in the illustration to install the front door No. 2 opening trim cover LH.
      GTY798308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  37. INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER RH
    1. GTY800035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      Attach the claw and clip in the installation direction shown in the illustration.

    2. GTY792994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      Attach the claw in the direction of the arrow shown in the illustration to install the front door No. 2 opening trim cover RH.

  38. INSTALL FRONT DOOR OPENING TRIM COVER LH
    1. Attach the claw and insert the guide in the direction of the arrow shown in the illustration to install the front door opening trim cover LH.
      GTY821751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  39. INSTALL FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure described for the LH side.

  40. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the claw and align the guide in the direction of the arrow shown in the illustration.
      GTY953017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the clip.
    3. Attach the claw on the vehicle exterior side and align the guide.
      GTY836886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
    4. Place your hand at the position shown in the illustration and while pulling towards the center of the vehicle, attach the claw to install the front door scuff plate LH.
  41. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  42. INSTALL COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 2

  43. INSTALL METER HOOD SUB-ASSEMBLY
    1. Insert the guide and attach the clip in the direction of the arrow shown in the illustration to install the meter hood sub-assembly.
      GTY824746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the 2 screws.
      GTY825452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the screw <E> or <G> and 2 screws.
      GTY953051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <E> or <G>
      Screw
    4. Connect the 2 connectors.
      GTY825455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
    1. Set the center upper instrument cluster finish panel in the direction of the arrow shown in the illustration.
      GTY802018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Insert the guide and attach the claw and clip in the direction of the arrow shown in the illustration to install the center upper instrument cluster finish panel.
      GTY953898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  45. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [05/2023 - ]

  46. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [05/2023 - ]

  47. INSPECT AUTOMATIC LIGHT CONTROL SYSTEM

    Refer to OPERATION CHECK [05/2023 - ]

  48. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [07/2020 - ]

  49. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to CUSTOMIZE PARAMETERS [07/2020 - ]

  50. CHECK STEERING WHEEL CENTER POINT
scientia non olet · About LEMON Manuals
