Installation [05/2023 - ]: Procedure

  1. INSTALL MULTI-DISPLAY
  2. INSTALL MULTI-DISPLAY CONTROLLER BRACKET A

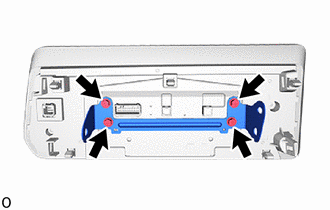

    1. Install the multi-display controller bracket A with the 4 screws.
      GTY1242397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL MULTI-DISPLAY WITH BRACKET
    1. Connect the 4 connectors and attach the clamp.
      GTY1242925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

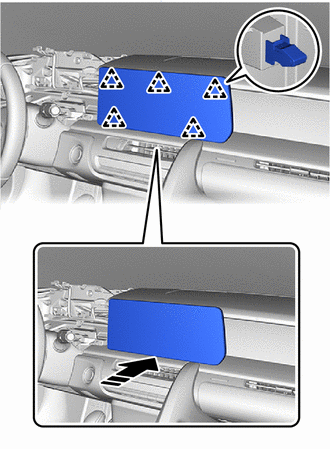

    2. Attach the clip to temporarily install the multi-display with bracket as shown in the illustration.
      GTY1241770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

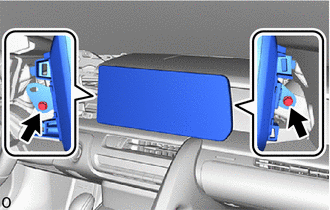

    3. Install the multi-display with bracket with the 2 bolts.
      GTY1242415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD COVER

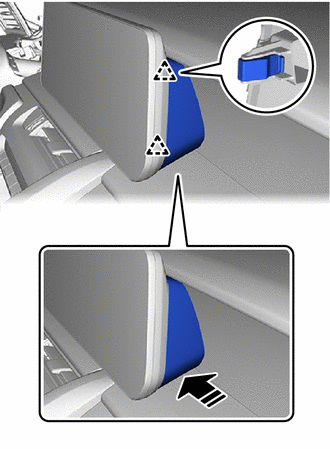

    1. Attach the clip to install the No. 2 instrument panel safety pad cover as shown in the illustration.
      GTY1241665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL INSTRUMENT PANEL SAFETY PAD COVER

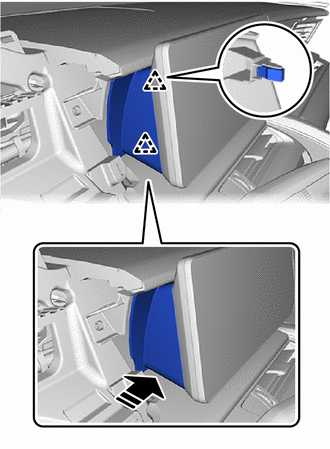

    1. Attach the clip to install the instrument panel safety pad cover as shown in the illustration.
      GTY1241635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  6. INSTALL COMBINATION METER ASSEMBLY

    Refer to INSTALLATION [07/2020 - ]

  7. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 23 [05/2023 - ]
