Installation [05/2023 - ]: Procedure

INSTALL DCM (TELEMATICS TRANSCEIVER)

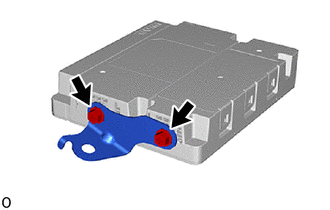

INSTALL NO. 1 TELEPHONE BRACKET

Install the No. 1 telephone bracket with the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

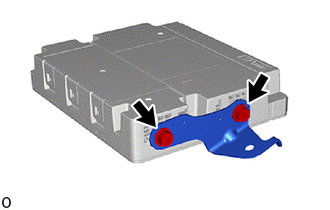

INSTALL TELEPHONE BRACKET

Install the telephone bracket with the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

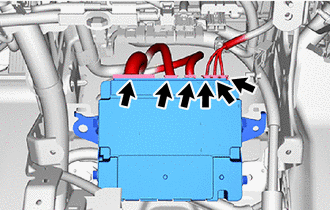

Connect the 6 connectors.

Temporarily install the DCM (telematics transceiver) with bracket by attaching the guide of the DCM (telematics transceiver) with bracket to the instrument panel.

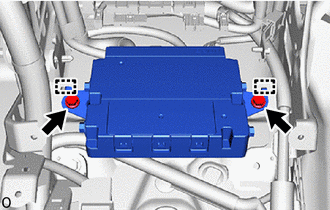

Install the DCM (telematics transceiver) with bracket with the 2 bolts.

INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to INSTALLATION [05/2023 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [05/2023 - ]
INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [05/2023 - ]
PERFORM DCM ACTIVATION
HINT:

When replacing the DCM (telematics transceiver), perform DCM activation.

Refer to DCM ACTIVATION [07/2020 - ]
LEXUS ENFORM REMOTE REGISTRATION
1. for Lexus Enform Remote Compatible Type:
  HINT:

  When replacing the DCM (telematics transceiver), perform Lexus Enform remote registration.

  Refer to REGISTRATION [05/2023 - ]
