Installation [05/2023 - ]: Procedure

  1. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for Center)
    NOTE:

    Do not touch the cone part of the speaker.

    1. Connect the connector.
    2. Install the front No. 2 speaker assembly with the 2 screws.

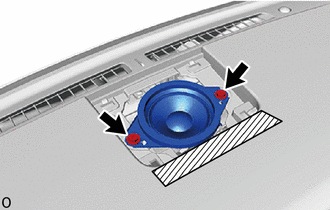

      GTY776679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective tape
  2. INSTALL NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)
    1. Attach the claw to install the No. 1 speaker opening cover assembly.

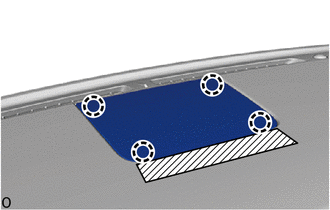

      GTY808676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective tape
    2. Remove the protective tape.
  3. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY (for Side)
    NOTE:

    Do not touch the cone part of the speaker.

    1. Connect the connector.
    2. Install the front No. 1 speaker assembly with the 2 screws.

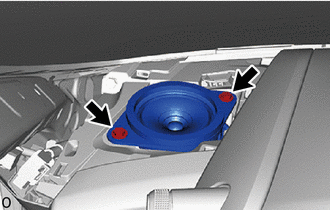

      GTY836650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 10

  5. INSTALL FRONT PILLAR GARNISH LH (for Side)

    Refer to PROCEDURE - Step 6

  6. INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER LH (for Side)

    Refer to PROCEDURE - Step 36

  7. INSTALL FRONT DOOR OPENING TRIM COVER LH (for Side)

    Refer to PROCEDURE - Step 38

  8. INSTALL FRONT DOOR SCUFF PLATE LH (for Side)

    Refer to PROCEDURE - Step 40
