Installation [05/2023 - ]: Procedure

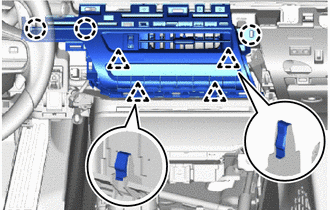

- INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
- INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 26
- INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 27
- INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 28
- INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 29
- INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

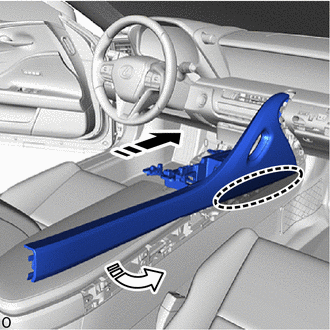

- Move the upper console panel sub-assembly to the installation position diagonally at a slightly slanted angle from the rear upper of the vehicle.NOTE:
Hold the areas shown in the illustration, lift the upper console panel sub-assembly and while inserting a portion of the claw into the mating hole move it to the installation position.

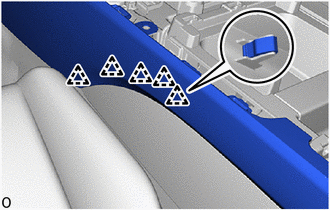

Place Hands Here Install in this Direction (1) Install in this Direction (2) - Attach the claw.

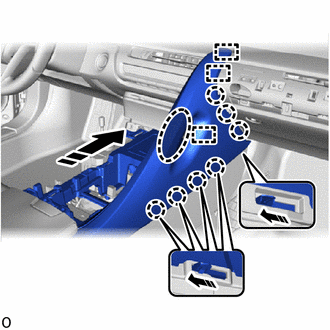

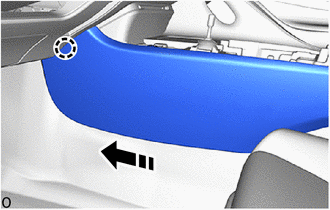

- Slide toward the front of the vehicle to insert the guide and attach the claw.

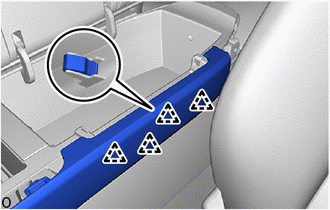

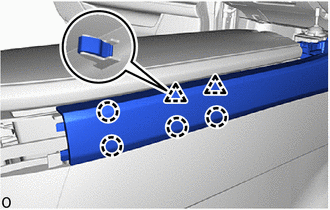

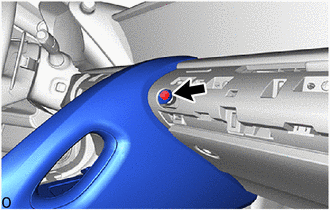

Install in this Direction - Fold the front seatback (RH side) forward and attach the clip and claw.

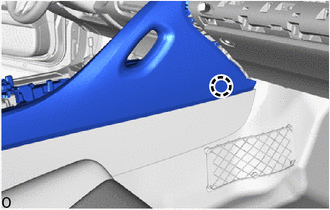

- Return the front seatback (RH side) to the original position and install the bolt.

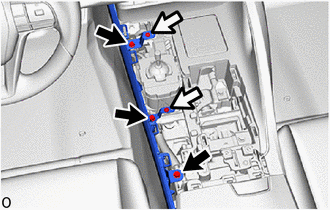

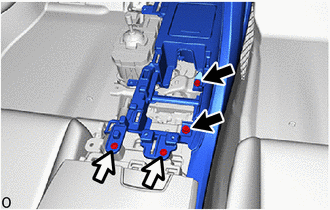

- Install the upper console panel sub-assembly with the 2 bolts and 2 screws.
Bolt Screw
- Move the upper console panel sub-assembly to the installation position diagonally at a slightly slanted angle from the rear upper of the vehicle.
- INSTALL BOX PANEL SUB-ASSEMBLY
- INSTALL NO. 1 GLOVE COMPARTMENT PANEL
Refer to PROCEDURE - Step 34
- INSTALL UPPER CONSOLE BOX
Refer to PROCEDURE - Step 6
- INSTALL SHIFTING HOLE COVER ASSEMBLY
Refer to PROCEDURE - Step 9
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
Refer to INSTALLATION [07/2020 - ]
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 35
- INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER LH
Refer to PROCEDURE - Step 36
- INSTALL FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 38
- INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 40
- INSTALL MULTI-DISPLAY WITH BRACKET
Refer to PROCEDURE - Step 3
- INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD COVER
Refer to PROCEDURE - Step 4
- INSTALL INSTRUMENT PANEL SAFETY PAD COVER
Refer to PROCEDURE - Step 5
- INSTALL COMBINATION METER ASSEMBLY
Refer to INSTALLATION [07/2020 - ]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
- Reset the auto tilt away function setting to the previous condition by changing the customize parameter.
Refer to CUSTOMIZE PARAMETERS [07/2020 - ]
- Reset the auto tilt away function setting to the previous condition by changing the customize parameter.
