Removal [10/2018 - ]: Procedure

  1. REMOVE SPOT LIGHT ASSEMBLY

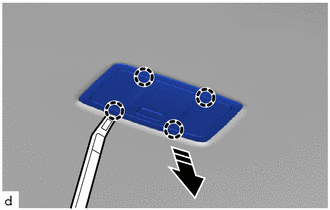

    1. Using a molding remover A, disengage the claws to remove the spot light assembly as shown in the illustration.
      GTY822952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

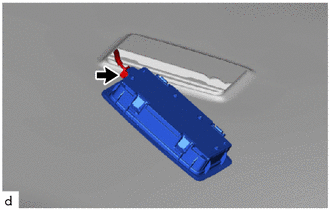

    2. Disconnect the connector.
      GTY803733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
