Removal [10/2018 - ]: Procedure
- REMOVE VANITY LIGHT ASSEMBLY

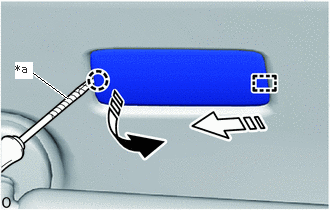

- Using a screwdriver with its tip wrapped in protective tape, disengage the claw and guide to remove the vanity light assembly from the roof headlining as shown in the illustration.

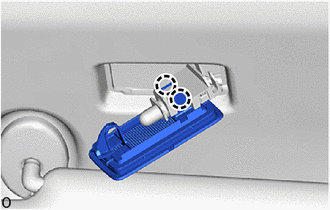

*a Protective Tape Remove in this Direction (1) Remove in this Direction (2) - Disengage the claws to remove the vanity light assembly from the bulb holder.
- Using a screwdriver with its tip wrapped in protective tape, disengage the claw and guide to remove the vanity light assembly from the roof headlining as shown in the illustration.
- REMOVE VANITY LIGHT BULB
See step 2
