Removal [10/2018 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY
    1. Using a molding remover A, disengage the clip as shown in the illustration.
      GTY779819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

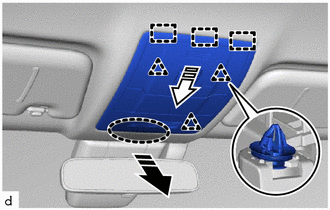

    2. Disengage the clips and guides to remove the map light assembly as shown in the illustration.
      GTY797012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction (1)
      Remove in this Direction (2)

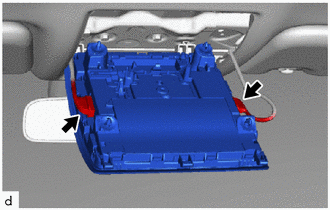

    3. Disconnect the 2 connectors to remove the map light assembly.
      GTY803736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
