Removal [10/2015 - ]: Procedure

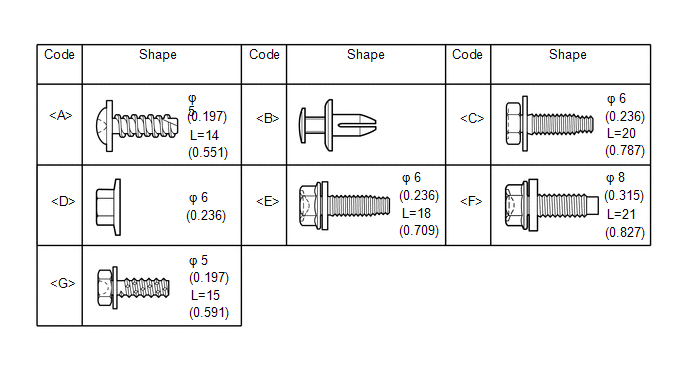

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws, nuts and clips relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

    GTY526454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISABLE AUTO TILT AWAY FUNCTION
    1. Disable the auto away/return function by changing the customize parameter.

      Refer to CUSTOMIZE PARAMETERS [09/2014 - ]

      WARNING:

      Record the current customize parameter setting (whether the auto away/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

      HINT:

      Performing the above operation causes the auto away/return function to be disabled when the engine switch is turned off.

    2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
    3. Turn the engine switch off.
  3. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [10/2015 - ]

  4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2015 - ]

  5. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  6. REMOVE FRONT DOOR SCUFF PLATE LH

    See step  7

  7. REMOVE FRONT DOOR SCUFF PLATE RH

    See step  8

  8. REMOVE FRONT DOOR OPENING TRIM COVER LH

    See step  9

  9. REMOVE FRONT DOOR OPENING TRIM COVER RH

    See step  10

  10. REMOVE FRONT PILLAR GARNISH LH

    See step  11

  11. REMOVE FRONT PILLAR GARNISH RH

    See step  12

  12. REMOVE INSTRUMENT SIDE PANEL LH

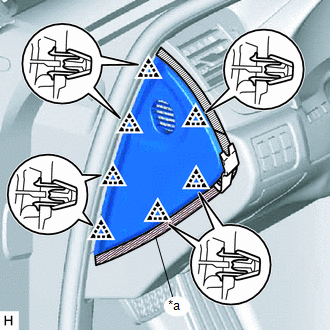

    GTY531261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the instrument side panel LH.
    2. Using molding remover B, detach the 7 clips and remove the instrument side panel LH.
  13. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

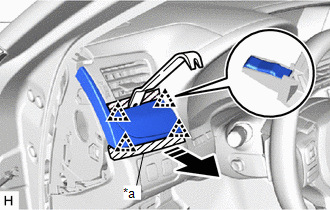

    GTY525317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the No. 1 instrument panel garnish sub-assembly.
    2. Using molding remover B, detach the 4 clips and remove the No. 1 instrument panel garnish sub-assembly.

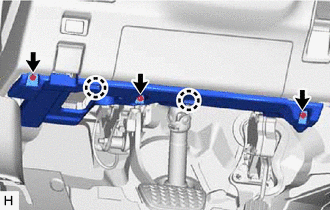

  14. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    GTY415178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws <A>.
    2. Detach the 2 claws.
    3. Disconnect the connectors, detach the clamp and remove the No. 1 instrument panel under cover sub-assembly.
  15. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

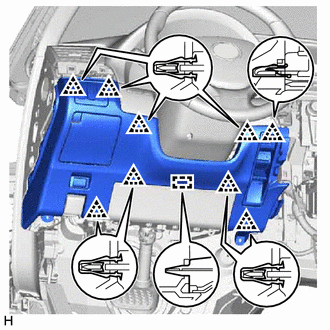

    GTY415199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 9 clips and guide.
    2. Disconnect the connectors and remove the No. 1 instrument panel safety pad sub-assembly.
  16. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 9

  17. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

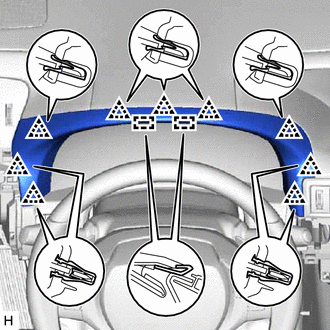

    GTY415200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 9 clips and 2 guides and remove the instrument cluster finish panel assembly.

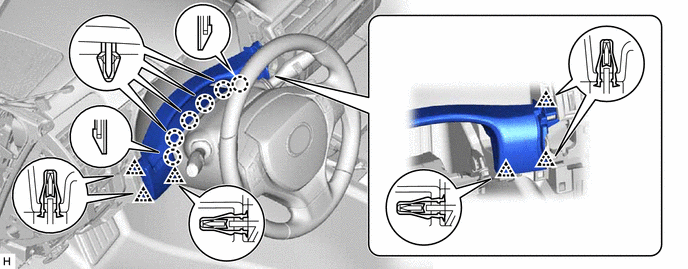

  18. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Detach the 6 clips and 6 claws.
    2. Disconnect the connectors and remove the instrument cluster finish panel sub-assembly.
      GTY420112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  20. REMOVE COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 10

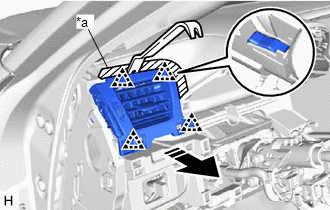

  21. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    GTY533063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the No. 1 instrument panel register assembly.
    2. Using molding remover B, detach the 4 clips.
    3. Disconnect the connector and remove the No. 1 instrument panel register assembly.
  22. REMOVE INSTRUMENT SIDE PANEL RH

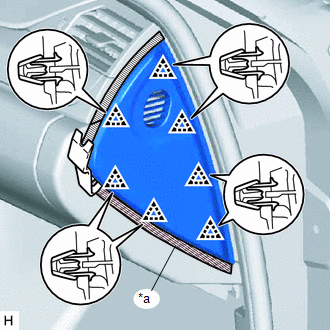

    GTY525392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the instrument side panel RH.
    2. Using molding remover B, detach the 7 clips and remove the instrument side panel RH.

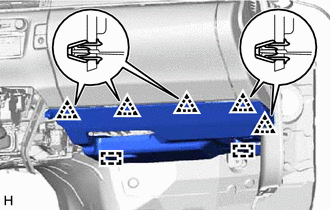

  23. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    GTY415317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 5 clips and 2 guides.
    2. Disconnect the connectors, detach the clamp and remove the No. 2 instrument panel under cover sub-assembly.
  24. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

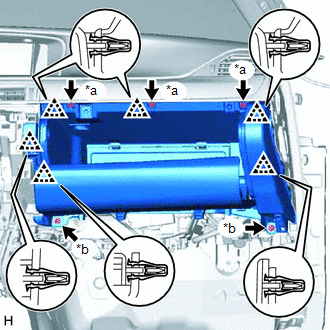

    GTY528922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Screw <A>
    *b Bolt <E>
    1. Remove the 3 screws <A> and 2 bolts <E>.
    2. Detach the 6 clips.
    3. Disconnect the connectors, detach the clamp and remove the glove compartment door assembly.
  25. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY

    Refer to PROCEDURE - Step 4 (09/2014 - 09/2017) or PROCEDURE - Step 4 (09/2017 -)

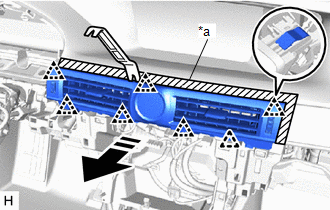

  26. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    GTY523390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the No. 2 instrument panel register assembly.
    2. Using molding remover B, detach the 7 clips.
    3. Disconnect the connectors and remove the No. 2 instrument panel register assembly.
  27. REMOVE DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)

    Refer to PROCEDURE - Step 10 (09/2014 - 09/2017) or PROCEDURE - Step 10 (09/2017 -)

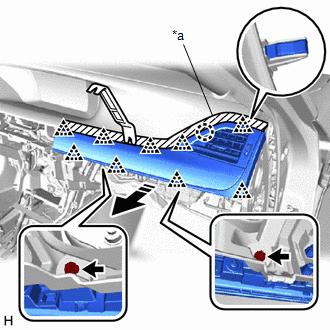

  28. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
    GTY528577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the No. 2 instrument panel garnish sub-assembly.
    2. Remove the 2 screws <G> from the back of the No. 2 instrument panel garnish sub-assembly.
    3. Using molding remover B, detach the 9 clips and claw and remove the No. 2 instrument panel garnish sub-assembly together with the No. 3 instrument panel register assembly.

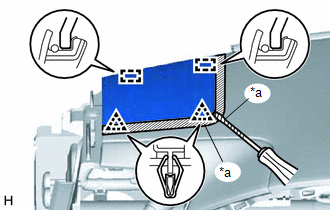

  29. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    GTY524770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the No. 1 instrument panel speaker panel sub-assembly.
    2. Using a screwdriver, detach the 2 clips and 2 guides and remove the No. 1 instrument panel speaker panel sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

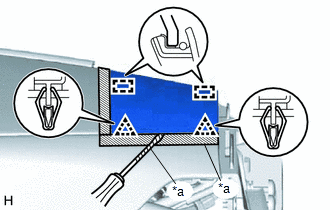

  30. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    GTY527032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the No. 2 instrument panel speaker panel sub-assembly.
    2. Using a screwdriver, detach the 2 clips and 2 guides and remove the No. 2 instrument panel speaker panel sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  31. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 7

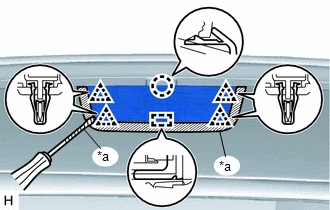

  32. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY
    GTY531062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the No. 1 speaker opening cover assembly.
    2. Using a screwdriver, detach the claw, 4 clips and guide and remove the No. 1 speaker opening cover assembly.

      HINT:

      Tape the screwdriver tip before use.

  33. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 9

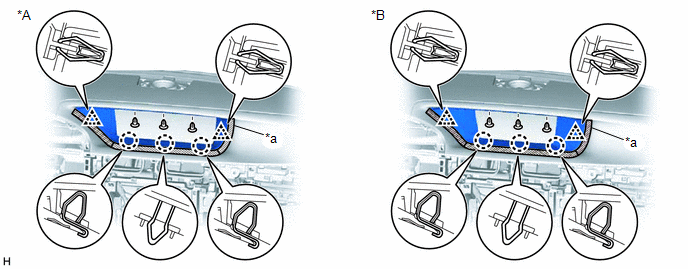

  34. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL
    1. Put protective tape around the upper instrument cluster finish panel.
    2. Remove the 3 clips <B>.
    3. Detach the 2 clips and 3 claws and remove the upper instrument cluster finish panel.
      GTY533480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12.3 Inch *B for 8 Inch
      *a Protective Tape - -
  35. REMOVE ACCESSORY METER ASSEMBLY (for 12.3 Inch)

    Refer to PROCEDURE - Step 2

  36. REMOVE MULTI-DISPLAY (for 8 Inch)

    Refer to PROCEDURE - Step 4

  37. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. w/ Headup Display:
      1. Disconnect the connectors and detach the clamp.
      2. Detach the 2 claws and disconnect the room temperature sensor.
      3. Remove the 2 bolts <C>, nut <D> and 2 bolts <E>.
      4. Remove the 2 passenger airbag bolts <F>.
      5. Detach the 2 guides and remove the instrument panel safety pad sub-assembly.

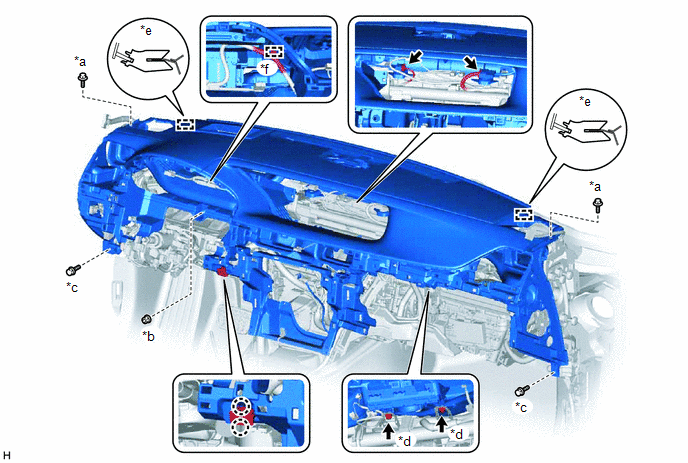

        GTY526781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bolt <C> *b Nut <D>
        *c Bolt <E> *d Bolt <F>
        *e Guide *f Clamp

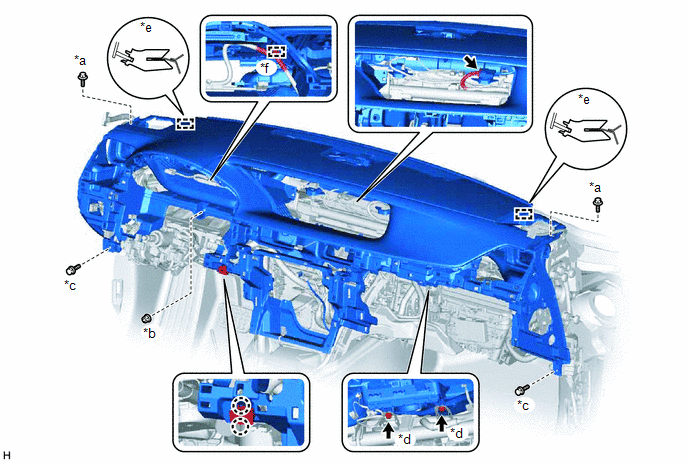

    2. w/o Headup Display:
      1. Disconnect the connectors and detach the clamp.
      2. Detach the 2 claws and disconnect the room temperature sensor.
      3. Remove the 2 bolts <C>, nut <D> and 2 bolts <E>.
      4. Remove the 2 passenger airbag bolts <F>.
      5. Detach the 2 guides and remove the instrument panel safety pad sub-assembly.
        GTY532299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bolt <C> *b Nut <D>
        *c Bolt <E> *d Bolt <F>
        *e Guide *f Clamp

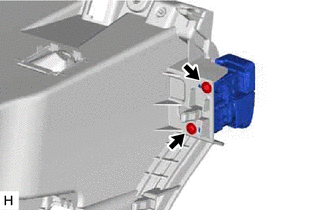

  38. REMOVE GLOVE COMPARTMENT DOOR LOCK ASSEMBLY
    GTY420108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws <A> and glove compartment door lock assembly.
  39. REMOVE GLOVE COMPARTMENT DOOR LOCK COVER
    GTY524161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Using a screwdriver, detach the 3 claws and remove the glove compartment door lock cover.

      HINT:

      Tape the screwdriver tip before use.
