Removal [09/2017 - ]: Procedure
- PRECAUTION NOTE:
- After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.
Refer to PRECAUTION [10/2015 - ]
- If the DCM (telematics transceiver) has been replaced, perform the DCM Activation procedure using the Techstream (w/ Manual [SOS] Switch).
Refer to DCM ACTIVATION [09/2017 - ]
- The safety connect device uses the DCM (telematics transceiver) to provide access to the network service.
- The DCM (telematics transceiver) has a DCM ID (printed on the label attached to the DCM (telematics transceiver)).
- After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2015 - ]
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 1
- REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 3
- REMOVE FRONT DOOR SCUFF PLATE RH
Refer to PROCEDURE - Step 8
- REMOVE FRONT DOOR OPENING TRIM COVER RH
Refer to PROCEDURE - Step 10
- REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 22
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 24

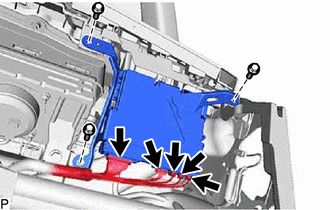

- REMOVE DCM (TELEMATICS TRANSCEIVER)
