Removal [09/2014 - ]: Procedure

  1. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 35 [09/2014 - 10/2015] or refer to PROCEDURE - Step 34 [10/2015 - ]

  2. REMOVE ACCESSORY METER ASSEMBLY

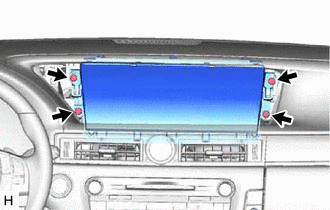

    GTY400536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 bolts.
    2. Disconnect the connectors and remove the accessory meter assembly.
