Removal [09/2017 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [10/2015 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2015 - ]

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY
    1. Remove the 2 bolts.
      GTY530893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

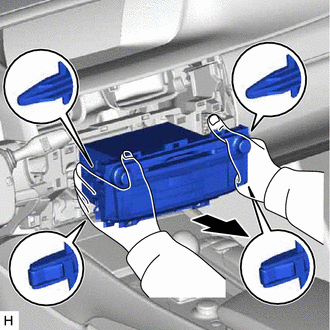

    2. Detach the 2 claws and 2 clips.
      GTY537498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull out the multi-media module receiver assembly.
    4. Disconnect the connectors and remove the multi-media module receiver assembly.
  5. REMOVE NO. 1 RADIO BRACKET
    GTY531023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws and No. 1 radio bracket.
  6. REMOVE NO. 2 RADIO BRACKET
    GTY531725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws and No. 2 radio bracket.
