Removal [09/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2014 - 10/2015] or refer to PRECAUTION [10/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2014 - 10/2015] or refer to INITIALIZATION [10/2015 - ] ).

  3. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 35 [09/2014 - 10/2015] or refer to PROCEDURE - Step 34 [10/2015 - ]

  4. REMOVE MULTI-DISPLAY (for 8 Inch)

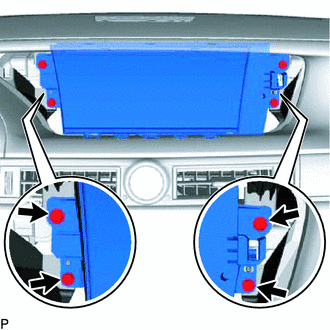

    1. Remove the 4 screws.
      GTY402960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

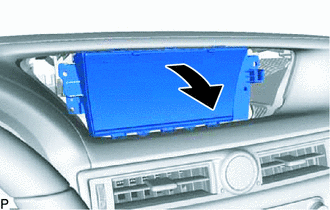

    2. Move the multi-display in the direction of the arrow in the illustration.
      GTY402962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

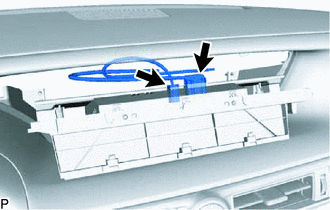

    3. Disconnect all the connectors and remove multi-display.
      GTY417540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ACCESSORY METER ASSEMBLY (for 12.3 Inch)

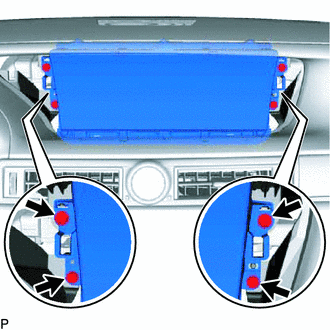

    1. Remove the 4 screws.
      GTY402922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

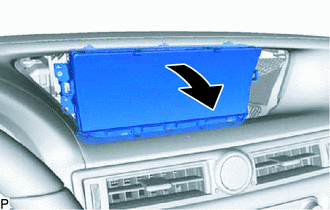

    2. Move the multi-display in the direction of the arrow in the illustration.
      GTY403013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

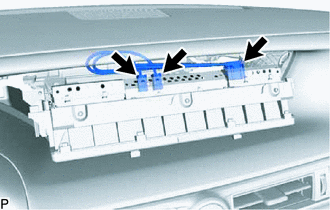

    3. Disconnect all the connectors and remove multi-display.
      GTY402958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
