Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 4

  2. REMOVE NO. 2 ENGINE COVER
    1. Disconnect the clamp from the No. 2 engine cover sub-assembly.
      GTY466857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 clips and No. 2 engine cover sub-assembly.
  3. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 6

  4. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  5. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 2WD)

    Refer to PROCEDURE - Step 7

  7. REMOVE OIL FILTER BRACKET (for AWD)

    Refer to PROCEDURE - Step 7

  8. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for AWD)

    Refer to PROCEDURE - Step 9

  9. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Disconnect the 2 clamps.
      GTY461441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
    2. Remove the 4 bolts and front No. 1 engine mounting bracket LH from the cylinder block sub-assembly.
  10. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Remove the 4 bolts and front No. 1 engine mounting bracket RH from the cylinder block sub-assembly.
      GTY468930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
  11. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 9

  12. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 10

  13. REMOVE ENGINE WIRE
    1. Remove the engine wire from the engine assembly.
  14. REMOVE INJECTOR DRIVER

    Refer to PROCEDURE - Step 7

  15. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 7

  16. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 7

  17. REMOVE NO. 2 SURGE TANK STAY
    1. Disconnect the 2 clamps from the No. 2 surge tank stay.

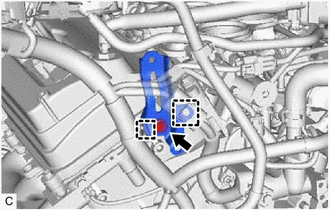

      GTY466874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 2 surge tank stay from the camshaft housing sub-assembly LH.
  18. REMOVE NO. 3 WATER BY-PASS PIPE
    1. Remove the bolt and No. 3 water by-pass pipe from the camshaft housing sub-assembly RH.
      GTY456156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Water By-pass Pipe
      *2 No. 8 Water By-pass Hose
      *3 No. 9 Water By-pass Hose
    2. Slide the clip and disconnect the No. 8 water by-pass hose from the water outlet pipe assembly.
    3. Slide the clip and disconnect the No. 9 water by-pass hose from the rear water by-pass joint.
  19. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 8

  20. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY

    Refer to PROCEDURE - Step 7

  21. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  22. DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  23. REMOVE FUEL PUMP ASSEMBLY

    Refer to PROCEDURE - Step 9

  24. REMOVE NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  25. REMOVE NO. 3 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  26. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly RH.
      GTY456901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE V-BANK COVER BRACKET SUB-ASSEMBLY
    1. Remove the bolt and V-bank cover bracket sub-assembly from the cylinder head cover sub-assembly RH.
      GTY466859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2
