Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE TO ENGINE STAND

    Refer to REMOVAL [04/2013 - 08/2015]

  2. REMOVE ENGINE WIRE

    Refer to PROCEDURE - Step 13

  3. REMOVE FUEL PUMP ASSEMBLY (for High Pressure)

    Refer to REMOVAL [04/2013 - 08/2015]

  4. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 4

  5. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for 2WD)

    Refer to PROCEDURE - Step 7

  7. REMOVE OIL FILTER BRACKET (for AWD)

    Refer to PROCEDURE - Step 7

  8. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (for AWD)

    Refer to PROCEDURE - Step 9

  9. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    1. for 2WD:
      1. Remove the 5 bolts and V-ribbed belt tensioner assembly.
        GTY402838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for AWD:
      1. Remove the 4 bolts and V-ribbed belt tensioner assembly.
        GTY105268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  11. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 10

  12. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 6

  13. REMOVE INJECTOR DRIVER

    Refer to PROCEDURE - Step 7

  14. REMOVE NO. 2 ENGINE COVER

    Refer to PROCEDURE - Step 2

  15. REMOVE WATER INLET ASSEMBLY

    Refer to PROCEDURE - Step 29

  16. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  17. REMOVE CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 4

  18. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  19. REMOVE OIL STRAINER WITH PIPE SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 36

  20. REMOVE OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  21. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38

  22. REMOVE NO. 1 OIL PIPE

    Refer to PROCEDURE - Step 21

  23. REMOVE NO. 2 OIL PIPE

    Refer to PROCEDURE - Step 22

  24. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 33

  25. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  26. REMOVE SPARK PLUG TUBE GASKET

    Refer to PROCEDURE - Step 34

  27. REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY
    1. Remove the bolt and wire harness clamp bracket.
      GTY402891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 25 bolts and 2 nuts.
      GTY409821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

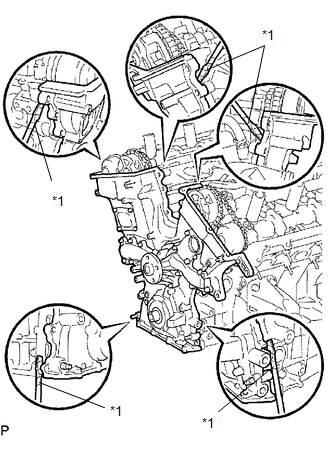

    3. Remove the timing chain or belt cover sub-assembly by prying between the timing chain or belt cover sub-assembly and cylinder head sub-assembly, cylinder head LH or cylinder block sub-assembly with a screwdriver.
      GTY459366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder head, cylinder block sub-assembly and timing chain or belt cover sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

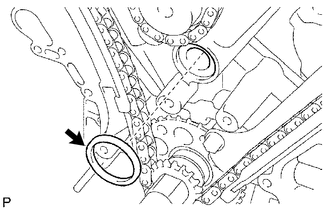

    4. Remove the gasket.
      GTY460979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

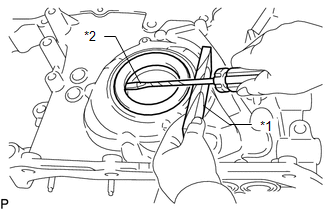

    1. Using a screwdriver and wooden block, pry out the timing gear case or timing chain case oil seal.
      GTY465031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wooden Block
      *2 Protective Tape
      NOTE:

      Be careful not to damage the timing chain or belt cover sub-assembly and oil pump rotor set.

      HINT:

      Tape the screwdriver tip before use.
