Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  2. REMOVE INLET NO. 1 AIR CLEANER

    See step  20

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  3

  4. REMOVE V-RIBBED BELT

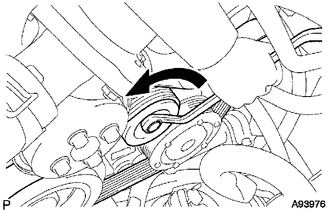

    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise, remove the V-ribbed belt from the V-ribbed belt tensioner assembly.
      GTY460162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

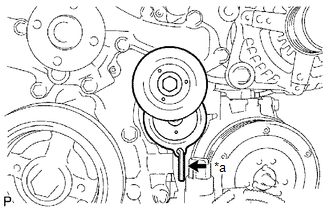

    2. While turning the V-ribbed belt tensioner assembly counterclockwise, align its holes, and then insert a 5 mm bi-hexagon wrench into the holes to secure the V-ribbed belt tensioner assembly.
      GTY465689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 5 mm Bi-hexagon Wrench
