Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [04/2013 - 08/2015]

  2. REMOVE IGNITION COIL ASSEMBLY

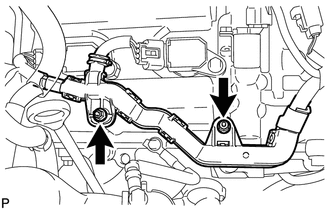

    1. Remove the 2 nuts and disconnect the wire harness from the cylinder head cover sub-assembly.
      GTY409306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

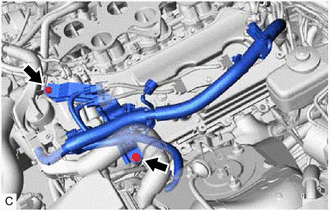

    2. Remove the 2 bolts and disconnect the ignition coil cover bracket from the cylinder head cover sub-assembly LH.
      GTY470336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 6 ignition coil assembly connectors.

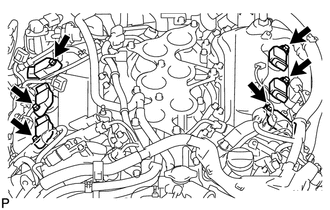

    4. Remove the 6 bolts and 6 ignition coil assemblies from the cylinder head cover sub-assembly.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

      GTY462170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SPARK PLUG
    1. Remove the 6 spark plugs from the cylinder head assembly.
      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.
