Home >> Lexus >> 2010 >> RX 350 FWD >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim (Service Information) >> Instrument Panel Safety Pad >> REMOVAL (To 8/2009) >> Removal

REMOVAL (To 8/2009): Removal

  1. PRECAUTION
    NOTE:

    w/ Navigation System for HDD:

    After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disable the auto tilt away function by changing the customize parameter. Refer to CUSTOMIZE PARAMETERS .
      NOTE:

      Record the current customize parameter setting (whether the auto tilt away function is enabled or disabled) in order to restore the current setting after finishing this operation.

      HINT:

      Performing the above operation disables the auto tilt away function when the engine switch is turned off.

    2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
    3. Turn the engine switch off and disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  4. REMOVE LOWER NO. 3 STEERING WHEEL COVER  . Refer to REMOVAL - Step 3
  5. REMOVE LOWER NO. 2 STEERING WHEEL COVER  . Refer to REMOVAL - Step 4
  6. REMOVE STEERING PAD  . Refer to REMOVAL - Step 5
  7. REMOVE STEERING WHEEL ASSEMBLY  . Refer to REMOVAL - Step 5
  8. REMOVE LOWER STEERING COLUMN COVER  . Refer to REMOVAL - Step 10
  9. REMOVE UPPER STEERING COLUMN COVER  . Refer to REMOVAL - Step 11
  10. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  . Refer to REMOVAL - Step 12
  11. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob sub-assembly counterclockwise and remove the shift lever knob sub-assembly.
      Fig 1: Turn The Shift Lever Knob Sub-Assembly Counterclockwise
      GTY274693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Move the shift lever to N.
      Fig 2: Shift Lever To N
      GTY254057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the upper console panel sub-assembly in the direction indicated by the arrow to disengage the 4 claws and 4 clips.
    3. w/o Seat Heater System:
      1. Disconnect the connector from the console box hole cover.
    4. w/ Seat Heater System:
      Fig 3: Disengage The 4 Claws
      GTY273079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 4 claws.
      2. Disconnect the connector and remove the seat heater switch assembly.

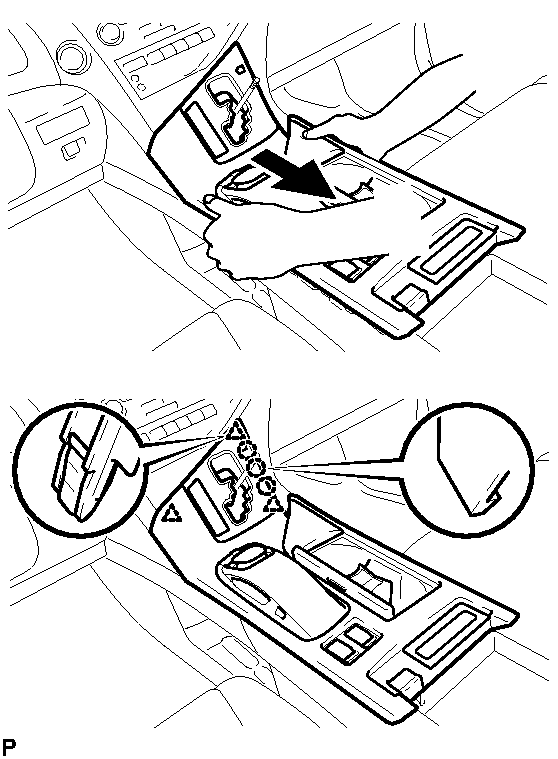

    5. Pull the upper console panel sub-assembly in the direction indicated by the arrow to disengage the 3 claws and 3 clips.
      Fig 4: Disengage The 3 Claws And 3 Clips
      GTY269524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect each connector.
    7. Disengage the clamp and remove the upper console panel sub-assembly.
  13. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY
    1. Remove the 5 screws and console cup holder box sub-assembly.
      Fig 5: Remove The 5 Screws
      GTY276112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made:
      Screw <I>
      for TMMC Made:
      Screw <J>
  14. REMOVE CONSOLE BOX CUP HOLDER (for TMMC Made)
    1. Remove the console box cup holder from the console cup holder box sub-assembly as shown in the illustration.
      Fig 6: Remove The Console Box Cup Holder
      GTY282761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 CONSOLE BOX DUCT  See step  3
  16. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY  See step  4
  17. REMOVE MULTI-MEDIA INTERFACE ECU ASSEMBLY (w/ USB Audio System)  . Refer to REMOVAL - Step 2
  18. REMOVE REAR CONSOLE BOX ASSEMBLY  See step  6
  19. REMOVE FRONT DOOR SCUFF PLATE LH  See step  3
  20. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH  See step  4
  21. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Remove the 2 screws.
      Fig 7: Remove The 2 Screws
      GTY277741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made:
      Screw <F>
      for TMMC Made:
      Screw <G>
    2. Disengage the claw and 2 guides as shown in the illustration.
      Fig 8: Disengage The Claw And 2 Guides
      GTY270848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector.
    4. Disengage each clamp and remove the No. 1 instrument panel under cover sub-assembly.
  22. REMOVE INSTRUMENT PANEL GARNISH LH
    1. Using molding remover B, disengage the 6 clips and remove the instrument panel garnish LH as shown in the illustration.
      Fig 9: Molding Remover B, Disengage The 6 Clips
      GTY263357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE NO. 1 SWITCH HOLE BASE
    1. Push the No. 1 switch hole base in the direction indicated by the arrow to disengage the 4 claws and 2 guides.
      Fig 10: Disengage The 4 Claws And 2 Guides
      GTY263247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the No. 1 switch hole base.
  24. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Disengage the 2 claws and open the cover as shown in the illustration.
      Fig 11: Disengage The 2 Claws
      GTY278606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
      Fig 12: Remove The 2 Screws
      GTY260909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made:
      Screw <F>
      for TMMC Made:
      Screw <G>
    3. Disengage the 8 clips and 2 guides.
    4. Disconnect each connector and remove the lower instrument panel finish panel sub-assembly.
  25. REMOVE INSTRUMENT PANEL CUP HOLDER
    1. Open the cup holder.
      Fig 13: Disengage The 2 Claws
      GTY257377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws as shown in the illustration.
      NOTE:

      Be careful not to break the claws. If any of them breaks, replace the instrument panel cup holder with a new one.

    3. Disengage the 2 claws and remove the instrument panel cup holder outer case.
      Fig 14: Disengage The 2 Claws
      GTY266361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 screws and the instrument panel cup holder.
      Fig 15: Remove The 4 Screws
      GTY260867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made:
      Screw <I>
      for TMMC Made:
      Screw <J>
  26. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 9
  27. REMOVE NO. 1 INSTRUMENT PANEL HOLE COVER
    1. Using a screwdriver, disengage the 2 claws and remove the No. 1 instrument panel hole cover.
      Fig 16: Disengage The 2 Claws
      GTY270039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  28. REMOVE NO. 2 INSTRUMENT PANEL HOLE COVER

    HINT:

    Use the same procedure for the No. 2 instrument panel hole cover and No. 1 instrument panel hole cover.

  29. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL
    1. Remove the 2 clips.
      Fig 17: Remove The 2 Clips & 2 Screws
      GTY263740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws <H> and the No. 1 instrument cluster finish panel.
  30. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the 2 screws.
      Fig 18: Remove The 2 Screws
      GTY273774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made:
      Screw <K>
      for TMMC Made:
      Screw <L>
    2. Disengage each connector and remove the combination meter assembly.
  31. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL
    1. Apply protective tape to the areas shown in the illustration.
      Fig 19: Apply Protective Tape
      GTY255524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *2 Molding Remover B
      *3 Molding Remover D
    2. Insert molding remover B and D as shown in the illustration.
    3. Pull down molding remover B in direction (1). With molding remover B being pulled down, pull down molding remover D in direction (2) to disengage the clip and guide.
    4. Apply protective tape to the areas shown in the illustration.
      Fig 20: Apply Protective Tape
      GTY274323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *2 Molding Remover B
      *3 Molding Remover D
    5. Insert molding remover B and D as shown in the illustration.
    6. Pull down molding remover B in direction (1). With molding remover B being pulled down, pull down molding remover D in direction (2) to disengage the clip.
    7. Disengage the 2 clips and remove the center instrument cluster finish panel as shown in the illustration.
      Fig 21: Disengage The 2 Clips
      GTY277621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE ACCESSORY METER ASSEMBLY (w/o Navigation System)  . Refer to REMOVAL - Step 3
  33. REMOVE MULTI-DISPLAY ASSEMBLY (w/ Navigation System)  . Refer to REMOVAL - Step 2
  34. REMOVE INSTRUMENT PANEL FINISH PANEL
    1. Pull the instrument panel finish panel in the direction indicated by the arrow to disengage the claw, 2 clips and 2 guides, and remove the instrument panel finish panel.
      Fig 22: Disengage The Claw, 2 Clips And 2 Guides
      GTY277076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
    1. Pull the lower instrument panel finish panel in the direction indicated by the arrow to disengage the 7 clips and remove the lower instrument panel finish panel.
      Fig 23: Disengage The 7 Clips
      GTY276619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE RADIO RECEIVER ASSEMBLY WITH REGISTER  . Refer to REMOVAL - Step 10
  37. REMOVE CONSOLE BOX
    1. Remove the 5 screws.
      Fig 24: Remove the 5 screws
      GTY285051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made:
      Screw <F>
      for TMMC Made:
      Screw <G>

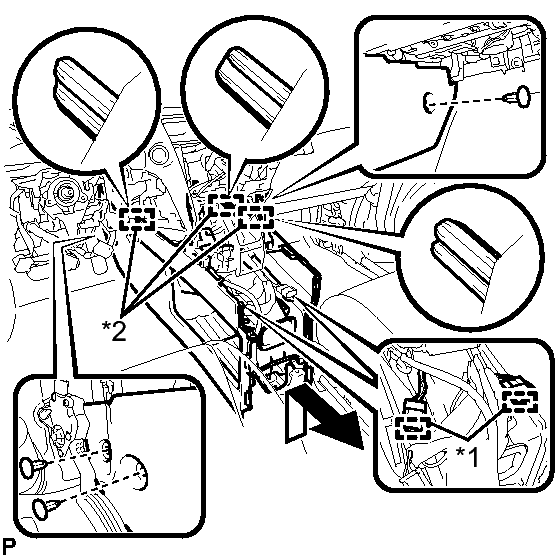

    2. Disengage the 2 clamps.
      Fig 25: Disengage The 2 Clamps
      GTY265894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Clamp
      *2 Guide
    3. Remove the 3 clips.
    4. Disengage the 3 guides and remove the console box as shown in the illustration.
  38. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side See step  3.

  39. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and LH side See step  4.

  40. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Disengage the 4 claws and 2 guides as shown in the illustration.
      Fig 26: Disengage The 4 Claws And 2 Guides
      GTY278180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the No. 2 instrument panel under cover sub-assembly.
  41. REMOVE INSTRUMENT PANEL GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  42. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 10
  43. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Remove the 5 screws.
      Fig 27: Remove The 5 Screws
      GTY273769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made:
      Screw <I>
      for TMMC Made:
      Screw <G>
    2. Disengage the claw, 4 clips and guide.
      Fig 28: Disengage The Claw, 4 Clips And Guide
      GTY269956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the glove compartment door assembly.
  44. REMOVE REMOTE ENGINE STARTER ECU (w/ Remote Engine Starter System)  . Refer to REMOVAL - Step 12
  45. REMOVE GLASS BREAKAGE SENSOR ECU (w/ Glass Breakage Sensor)  . Refer to REMOVAL - Step 12
  46. REMOVE INSTRUMENT SIDE PANEL LH  See step  5
  47. REMOVE FRONT PILLAR GARNISH LH  See step  6
  48. REMOVE INSTRUMENT SIDE PANEL RH

    HINT:

    Use the same procedure for the RH side and LH side See step  5.

  49. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side See step  6.

  50. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Disengage the 4 claws and 3 clips, and remove the No. 1 instrument panel register assembly.
      Fig 29: Disengage The 4 Claws And 3 Clips
      GTY285358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    HINT:

    Use the same procedure for the No. 2 instrument panel register assembly and No. 1 instrument panel register assembly.

  52. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY
    1. Using molding remover A, disengage the 10 claws and 4 clips, and remove the No. 1 speaker opening cover assembly.
      Fig 30: Molding Remover A, Disengage The 10 Claws And 4 Clips
      GTY269438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY  . Refer to REMOVAL - Step 2
  54. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
    1. Using molding remover B, disengage the 11 clips.

      HINT:

      Apply protective tape to the areas where the molding remover B is to be inserted.

    2. Disengage the 7 claws.
      Fig 31: Disengage The 7 Claws
      GTY285355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Molding Remover B *2 Protective Tape
    3. Disengage the 2 claws.
      Fig 32: Disengage The 2 Claws
      GTY285790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector and remove the automatic light control sensor.
    5. Remove the No. 1 defroster nozzle garnish.
  55. REMOVE SHIFT LEVER ASSEMBLY

    for U660E: Refer to REMOVAL - Step 15

    for U660F: Refer to REMOVAL - Step 15

  56. REMOVE NO. 1 CONSOLE BOX DUCT
    1. Remove the screw and the No. 1 console box duct.
      Fig 33: Remove The Screw
      GTY283717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made:
      Screw <F>
      for TMMC Made:
      Screw <G>
  57. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY  . Refer to REMOVAL - Step 2
  58. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
    1. Disconnect each connector.
    2. Disengage each clamp.
    3. Disengage the 2 claws and disconnect the room temperature sensor.
      Fig 34: Disconnect Each Connector Clamp, 2 Passenger Airbag Bolts, 6 Bolts And Nut 2 Clips & 5 Claws
      GTY270981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 passenger airbag bolts.
    5. Remove the 6 bolts and nut.
    6. Remove the 2 clips.
    7. Disengage the 5 claws and remove the instrument panel safety pad assembly.
      NOTE:
      • Do not damage the instrument panel safety pad assembly.
      • Do not allow the wire harnesses to interfere with the surrounding parts.

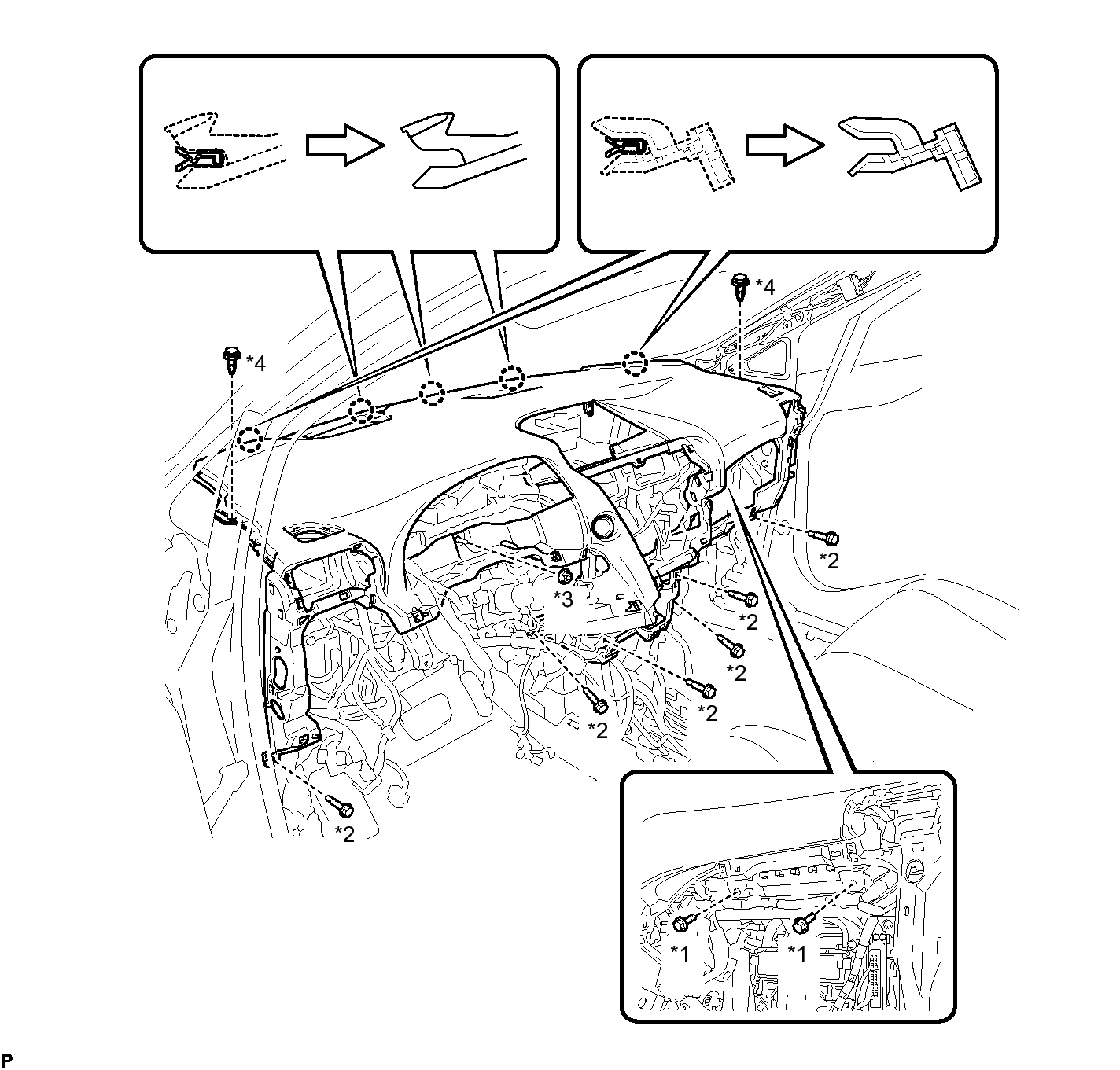

      Fig 35: Disengage The 5 Claws
      GTY267215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 for TMC Made
      Passenger Airbag Bolt <A> or <B>      		 *2 for TMC Made
      Bolt <D>
      for TMMC Made
      Passenger Airbag Bolt <A> or <C>      		 for TMMC Made
      Bolt <E>
      *3 Nut <M> or <N> *4 Clip
  59. REMOVE NO. 3 INSTRUMENT PANEL STAY
    1. Disengage the 5 claws and remove the 5 No. 3 instrument panel stays.
      Fig 36: Disengage The 5 Claws
      GTY283205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
