REMOVAL (To 8/2009): Removal
- PRECAUTION (w/ Navigation System for HDD) NOTE:
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY . Refer to REMOVAL - Step 11
- REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 12
- REMOVE INSTRUMENT PANEL GARNISH LH . Refer to REMOVAL - Step 22
- REMOVE NO. 1 SWITCH HOLE BASE . Refer to REMOVAL - Step 23
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 24
- REMOVE INSTRUMENT PANEL FINISH PANEL . Refer to REMOVAL - Step 34
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL . Refer to REMOVAL - Step 35

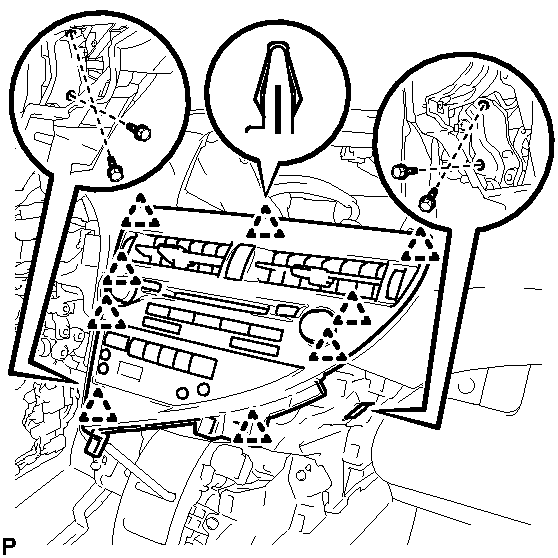

- REMOVE RADIO RECEIVER ASSEMBLY WITH REGISTER NOTE:
- The 4 bolts of the radio receiver assembly with register are installed though the service holes at the bottom in the instrument panel. Make sure to check all of them.
- If the radio receiver assembly with register is pulled without removing the 4 bolts, it may result in damage to the radio receiver assembly with register.
- Remove the 4 bolts.
- Disengage the 9 clips.
- Disconnect each connector and remove the radio receiver assembly with register.
- REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY . Refer to REMOVAL - Step 11
- REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
- Disengage the 5 claws and remove the No. 3 instrument panel register assembly.
- REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
- Disengage the 5 claws and remove the No. 4 instrument panel register assembly.
- REMOVE RADIO RECEIVER ASSEMBLY
