REMOVAL (To 08/2009): Removal

  1. PRECAUTION
    NOTE:

    After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  4. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 12
  5. REMOVE NO. 2 CONSOLE BOX DUCT  . Refer to REMOVAL - Step 3
  6. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 4
  7. REMOVE MULTI-MEDIA INTERFACE ECU ASSEMBLY (w/ USB Audio System)  . Refer to REMOVAL - Step 2
  8. REMOVE REAR CONSOLE BOX ASSEMBLY  . Refer to REMOVAL - Step 6
  9. REMOVE INSTRUMENT PANEL GARNISH LH  . Refer to REMOVAL - Step 22
  10. REMOVE NO. 1 SWITCH HOLE BASE  . Refer to REMOVAL - Step 23
  11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 24
  12. REMOVE INSTRUMENT PANEL FINISH PANEL  . Refer to REMOVAL - Step 34
  13. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL  . Refer to REMOVAL - Step 35
  14. REMOVE CONSOLE BOX  . Refer to REMOVAL - Step 37
  15. REMOVE SHIFT LEVER ASSEMBLY
    1. Move the shift lever to N.
    2. Disconnect the shift lock control ECU connector and transmission control switch wire connector.

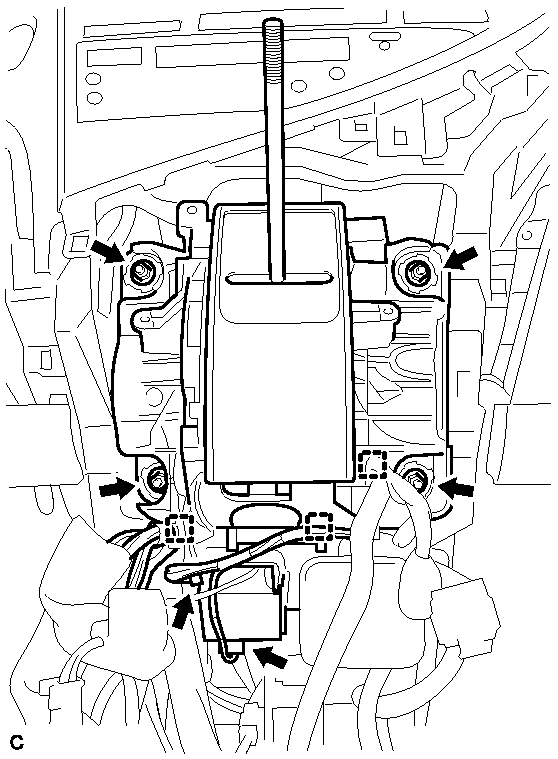

      Fig 1: Identifying Shift Lock Control ECU Connector, Control Switch Wire Connector, Clamps, Nuts & Shift Lever Assembly
      GTY283306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 3 clamps.
    4. Remove the 4 nuts and shift lever assembly.
    5. Disconnect the end of the transmission control cable assembly from the shift lever assembly.

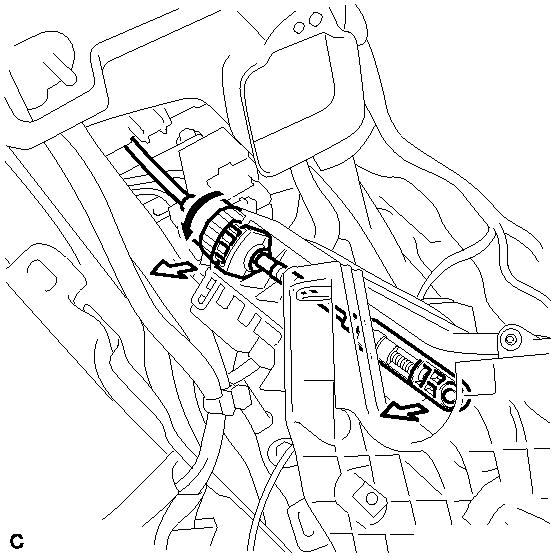

      Fig 2: Turning Lock Nut Counterclockwise & Holding Lock Nut To Disconnect Transmission Control Cable From Shift Lever Retainer
      GTY262962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Turn the lock nut counterclockwise. While holding the lock nut, disconnect the transmission control cable from the shift lever retainer.
