Hood Lock Control Cable Assembly: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

Tie the string passed through the engine compartment to the end of the hood lock control cable assembly as shown in the illustration.

Fig 1: Identifying Hood Lock Control Cable Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull the string until the hood lock control cable assembly stopper contacts the grommet, and then install the cable as shown in the illustration.

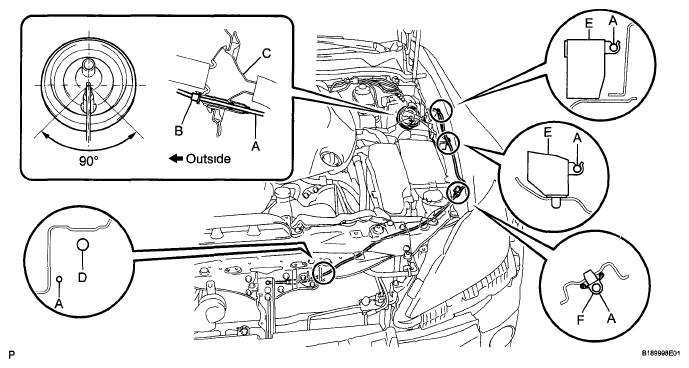

Fig 2: Identifying Hood Lock Control Cable Assembly Stopper And Grommet

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PART REFERENCE CHART

Area	Part Name	Area	Part Name
A	Hood lock control cable	D	Wire harness
B	Stopper	E	Wire harness protector
C	Grommet	F	Clamp

Engage the clamp

After pulling the end of the hood lock control cable assembly into the cabin as shown in the illustration, remove the string.

Fig 3: Identifying Hood Lock Control Cable Assembly

PART REFERENCE CHART

Area	Part Name
A	Hood lock control cable
B	Parking brake cable
C	Parking brake pedal

INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
1. Connect the hood lock control cable assembly
2. Engage the 3 claws and install the hood lock control lever sub-assembly
Fig 4: Identifying Hood Lock Control Lever Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL SIDE INSTRUMENT PANEL (See INSTALLATION )
INSTALL FRONT DOOR OPENING TRIM COVER (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE (See INSTALLATION )
INSTALL HOOD LOCK ASSEMBLY
1. Apply MP grease to the sliding areas of the hood lock assembly

  Fig 5: Locating Hood Lock Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the hood lock control cable assembly and connector

  Fig 6: Identifying Hood Lock Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the hood lock assembly with the 2 bolts and hood lock nut
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  Fig 7: Identifying Hood Lock Nut And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK NUT CAP
1. Install a new hood lock nut cap.

  Fig 8: Identifying Hood Lock Nut Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK CONTROL CABLE COVER
1. Engage the clamp.
2. Install the hood lock control cable cover with the 3 screws.
Fig 9: Identifying Hood Lock Control Cable Cover With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOW PITCHED HORN ASSEMBLY (See INSTALLATION )
INSPECT HOOD SUB-ASSEMBLY (See ON-VEHICLE INSPECTION )
ADJUST HOOD SUB-ASSEMBLY (See ADJUSTMENT )
INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) (See INSTALLATION )
INSTALL FRONT BUMPER ASSEMBLY (See INSTALLATION )
INSTALL RADIATOR GRILLE PROTECTOR (See INSTALLATION )
INSTALL FRONT UPPER FENDER PROTECTOR (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
ADD WASHER FLUID (w/ Headlight Cleaner System) (See INSTALLATION )
ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) (See ADJUSTMENT )
VEHICLE PREPARATION FOR FOG LIGHT AIMING (See ADJUSTMENT )
PREPARATION FOR FOG LIGHT AIMING (See ADJUSTMENT )
INSPECT FOG LIGHT AIMING (See ADJUSTMENT )
ADJUST FOG LIGHT AIMING (See ADJUSTMENT )
