On-Vehicle Inspection

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT HOOD SUB-ASSEMBLY

Check that the clearance measurements of areas A to H are within each standard range

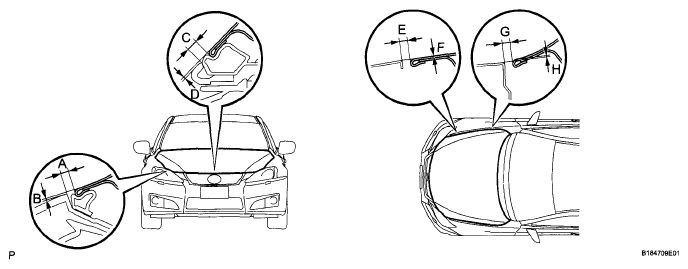

Fig 1: Identifying Hood Sub-Assembly Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Clearance

STANDARD CLEARANCE CHART

Area	Measurement	Area	Measurement
A	2.3 to 5.3 mm (0 0906 to 0.209 in.)	E	2.2 to 5.2 mm (0.0866 to 0.205 in.)
B	-0 7 to 2 3 mm (-0 0276 to 0.0906 in)	F	-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
C	3 3 to 6.3 mm (0.130 to 0.248 in.)	G	2.2 to 5.2 mm (0.0866 to 0.205 in.)
D	-0.6 to 2 4 mm (-0 0236 to 0.0945 in)	H	-1 5 to 1.5 mm (-0.0591 to 0.0591 in.)
