Instrument Panel Safety Pad: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INSTRUMENT PANEL STAY
    1. Engage the claw and install the instrument panel stay
      Fig 1: Installing Instrument Panel Stay
      G05755541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL CLIP
    1. Engage the 4 claws and install the 4 instrument panel clips
      Fig 2: Installing Instrument Panel Clip
      G05755540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
    1. Engage the 5 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    2. Engage the 2 clamps
    3. Install the 2 passenger airbag bolts < A > or < B >

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    4. Install the 6 bolts < C > and nut < G >

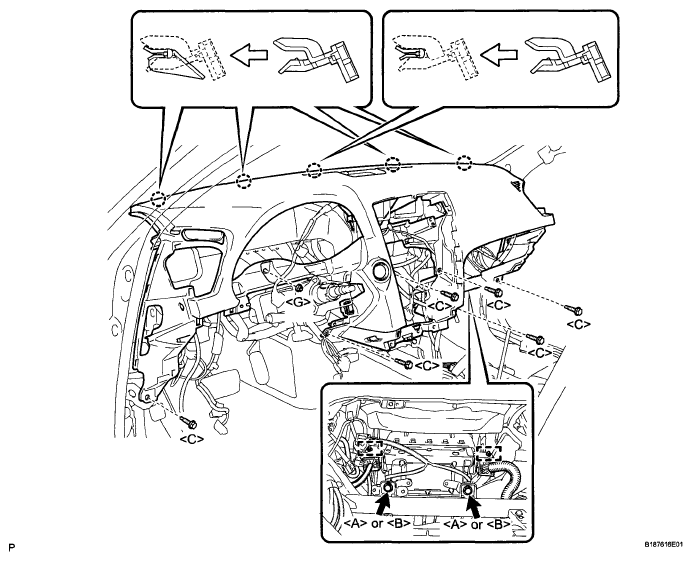

      Fig 3: Installing Instrument Panel Safety Pad Assembly
      G05755570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 2 claws and install the cooler thermistor.
    6. Engage the clamps.
    7. Connect the connectors and install the instrument panel safety pad assembly.

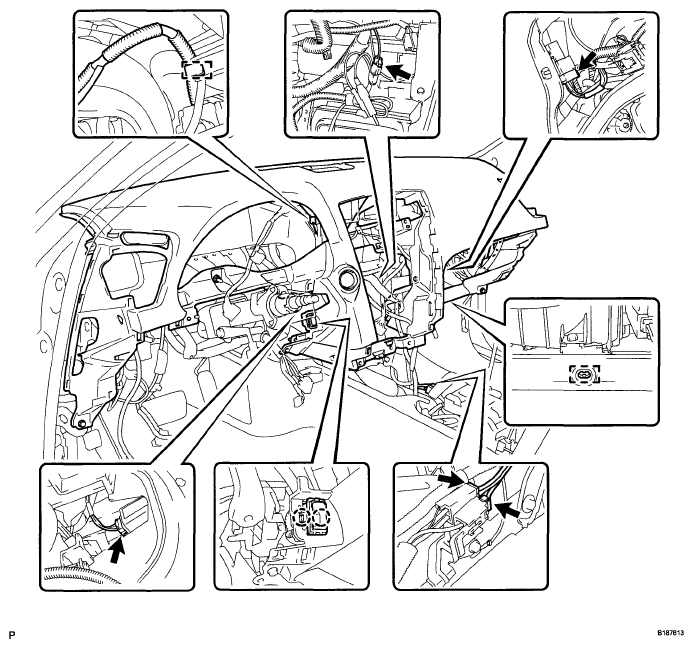

      Fig 4: Installing Instrument Panel Safety Pad Assembly
      G05755538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  5. INSTALL NO. 1 CONSOLE BOX DUCT
    1. Install the No 1 console box duct with the clip.
      Fig 5: Installing No 1 Console Box Duct With Clip
      G05755537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 CONSOLE BOX DUCT
    1. Install the No 2 console box duct with the 2 clips.
      2. Fig 6: Installing No 2 Console Box Duct With Clips
      G05755536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See INSTALLATION )
  8. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 7 claws and 2 clips, and install the No 3 instrument panel speaker panel sub-assembly.
      Fig 7: Installing No. 3 Instrument Panel Speaker Panel Sub-Assembly
      G05755574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Engage the 4 claws and 2 clips, and install the No 2 instrument panel register assembly.
      Fig 8: Installing No. 2 Instrument Panel Register Assembly
      G05755575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector
    2. Engage the 7 claws and 2 clips, and install the No 1 instrument panel register assembly.
      3. Fig 9: Installing No. 1 Instrument Panel Register Assembly
      G05755576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION  )
  12. INSTALL FRONT PILLAR GARNISH RH

    HINT

    Use the same procedure for the RH side and LH side (See INSTALLATION  )

  13. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Connect the connectors.
    2. Engage the 2 claws.
    3. Install the glove compartment door assembly with the 5 screws < D >
    Fig 10: Installing Glove Compartment Door Assembly
    G05755577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  15. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Engage the 4 clips and install the No 2 instrument panel under cover sub-assembly.
      Fig 11: Installing No. 2 Instrument Panel Under Cover Sub-Assembly
      G05755578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL SIDE INSTRUMENT PANEL RH
    1. Engage the 5 claws and 3 clips, and then install the side instrument panel RH.
    Fig 12: Installing Side Instrument Panel RH
    G05755579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT DOOR OPENING TRIM COVER RH

    HINT

    Use the same procedure for the RH side and LH side (See INSTALLATION  ).

  18. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT

    Use the same procedure for the RH side and LH side (See INSTALLATION  ).

  19. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Engage the 2 claws and install the combination meter assembly.
      Fig 13: Installing Combination Meter Assembly
      G05755580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Install the instrument cluster finish panel sub-assembly with the 2 screws < F > and 2 clips.
    Fig 14: Installing Instrument Cluster Finish Panel Sub-Assembly
    G05755581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  22. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Engage the 7 clips and install the lower instrument panel finish panel sub-assembly
      Fig 15: Installing Lower Instrument Panel Finish Panel Sub-Assembly
      G05755527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors
    2. Insert the No 1 instrument panel under cover sub-assembly into the guide as shown in the illustration
    3. Engage the 2 claws
    4. Install the No 1 instrument panel under cover sub-assembly with the 2 screws < D >
      Fig 16: Installing No. 1 Instrument Panel Under Cover Sub-Assembly
      G05755583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL SIDE INSTRUMENT PANEL LH
    1. Engage the 5 claws and 3 clips, and then install the side instrument panel LH
    Fig 17: Installing Side Instrument Panel LH
    G05755584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL FRONT DOOR OPENING TRIM COVER LH  (See INSTALLATION  )
  26. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION  )
  27. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  28. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  29. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  30. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  31. INSTALL STEERING PAD  (See INSTALLATION )
  32. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  33. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  34. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See INSTALLATION )
  35. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
  36. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
    1. Engage the 4 claws and install the center lower instrument cluster finish panel.
      Fig 18: Installing Center Lower Instrument Cluster Finish Panel
      G05755524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connectors.
    2. Engage the 11 claws and install the No. 3 instrument panel register assembly.
      3. Fig 19: Installing No. 3 Instrument Panel Register Assembly
      G05755586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL CONSOLE BOX  (See REASSEMBLY  )
  39. INSTALL CONSOLE BOX REGISTER ASSEMBLY  (See INSTALLATION  )
  40. INSTALL REAR ASH RECEPTACLE ASSEMBLY  (See INSTALLATION  )
  41. INSTALL FRONT ASH RECEPTACLE ASSEMBLY
    1. Connect the connectors.
    2. Insert the protruding parts of the front ash receptacle assembly into the 2 guide holes as shown in the illustration.
      Fig 20: Inserting Protruding Parts Of Front Ash Receptacle Assembly Into Guide Holes
      G05755587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the front ash receptacle assembly with the 2 screws < E >.
      Fig 21: Installing Front Ash Receptacle Assembly With Screws
      G05755588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL CONSOLE PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Engage the 8 clips and install the console panel sub-assembly
      Fig 22: Installing Console Panel Sub-Assembly
      G05755589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH
    1. Engage the claw and 2 clips, and then install the upper No 2 console panel garnish.
      Fig 23: Installing Upper No. 2 Console Panel Garnish
      G05755590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH
    1. Engage the claw and 2 clips, and then install the upper No 1 console panel garnish.
      Fig 24: Installing Upper No. 1 Console Panel Garnish
      G05755591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob clockwise and install the shift lever knob sub-assembly
    Fig 25: Installing Shift Lever Knob Sub-Assembly
    G05755592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  47. INSPECT STEERING PAD  (See INSTALLATION )
  48. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
