Front Wiper Motor: Installation

1. Using a "TORX" socket wrench (T30), install the windshield wiper motor assembly with the 2 bolts.

   Torque: 7.5 N*m (77 kgf*cm, 66 in.*lbf)

   Fig 1: Locating Windshield Wiper Motor Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply MP grease to the crank arm pivot of the windshield wiper motor assembly
3. Install the windshield wiper link rod No 1 to the crank arm pivot of the windshield wiper motor assembly as shown in the illustration
   Fig 2: Identifying Windshield Wiper Link Rod No 1 To Crank Arm Pivot Of Windshield Wiper Motor Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Apply MP grease to the pivot of the windshield wiper link assembly
5. Install the windshield wiper link rod No 1 to the pivot of the windshield wiper link assembly as shown in the illustration
   Fig 3: Identifying Windshield Wiper Link Rod No. 1 Installation Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the windshield wiper link rod No. 2 to the crank arm pivot of the windshield wiper motor assembly as shown in the illustration.
   Fig 4: Identifing Windshield Wiper Link Rod No. 2 To Crank Arm Pivot Of Windshield Wiper Motor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the windshield wiper motor and link assembly with the 2 bolts

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

2. Connect the connector
   Fig 5: Locating Windshield Wiper Motor And Link Assembly With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

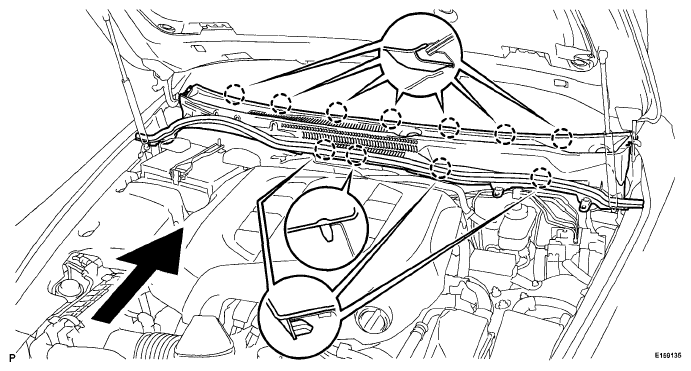

1. Engage the 11 claws
   Fig 6: Identifying Cowl Top Ventilator Louver Sub-Assembly Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cowl top ventilator louver sub-assembly with the 2 clips

1. Operate the wiper and stop the windshield wiper motor at the automatic stop position
   Fig 7: Identifying Cowl Top Ventilator Louver Sub-Assembly Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clean the wiper arm serrations
3. Clean the wiper pivot serrations with a wire brush (when reinstalling).
   Fig 8: Cleaning Wiper Pivot Serrations With Wire Brush

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the front wiper arm and blade assembly LH with the nut to the position shown in the illustration.

   Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

   HINT:

   Hold the arm hinge by hand to fasten the nut.

   Fig 9: Identifying Louver Tip Of Front Wiper Arm And Blade Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AREA MEASUREMENT CHART



   Area	Measurement
   A	15 to 30 mm (0 591 to 1 18 in)
   B	Approx 40 mm (1 57 in)

1. Operate the wiper and stop the windshield wiper motor at the automatic stop position.
2. Clean the wiper arm serrations
3. Clean the wiper pivot serrations with a wire brush (when reinstalling)
   Fig 10: Cleaning Wiper Pivot Serrations With Wire Brush

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the front wiper arm and blade assembly RH with the nut to the position shown in the illustration.

   Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

   HINT.

   Hold the arm hinge by hand to fasten the nut

   AREA MEASUREMENT CHART



   Area	Measurement
   A	16 to 31 mm (0 630 to 1 22 in)
   B	Approx 20 mm (0 787 in)

   Fig 11: Identifying Front Wiper Arm And Blade Assembly RH Louver Tip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Operate the front wipers while spraying washer fluid on the windshield glass Make sure that the front wipers function properly and there is no interference with the vehicle body

1. Install the front wiper arm head cap.

   HINT

   Use the same procedure for the RH side and LH side

   Fig 12: Identifying Front Wiper Arm Head Cap

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT.

Use the same procedure for the RH side and LH side.

1. Engage the claw and the 4 clips and install the front upper fender protector LH
2. Engage the clip on the rubber portion of the cowl top ventilator louver sub-assembly with the front upper fender protector LH.

Fig 13: Identifying Front Upper Fender Protector LH Clips And Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT

Use the same procedure for the RH side and LH side
