Roof Headlining: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip LH as shown in the illustration
      Fig 1: Installing Front Door Opening Trim Weatherstrip LH
      G05755670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip RH as shown in the illustration
      Fig 2: Installing Front Door Opening Trim Weatherstrip RH
      G05755671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the rear door opening trim weatherstrip LH as shown in the illustration
      Fig 3: Installing Rear Door Opening Trim Weatherstrip LH
      G05755672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the rear door opening trim weatherstrip RH as shown in the illustration
    Fig 4: Installing No. 1 Roof Wire (W/O Sliding Roof)
    G05755673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 ROOF WIRE (w/o Sliding Roof)
    1. Install the roof wire.
      1. Remove the peeling paper from one side of double-sided tape.
      2. Attach double-sided tape to the marks on the roof headlining as shown in the illustration.
      3. Remove the peeling paper from the other side of double-sided tape.
      4. Align the wire harness to double-sided tape Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining Secure the wire harness to the roof headlining with vinyl tape.

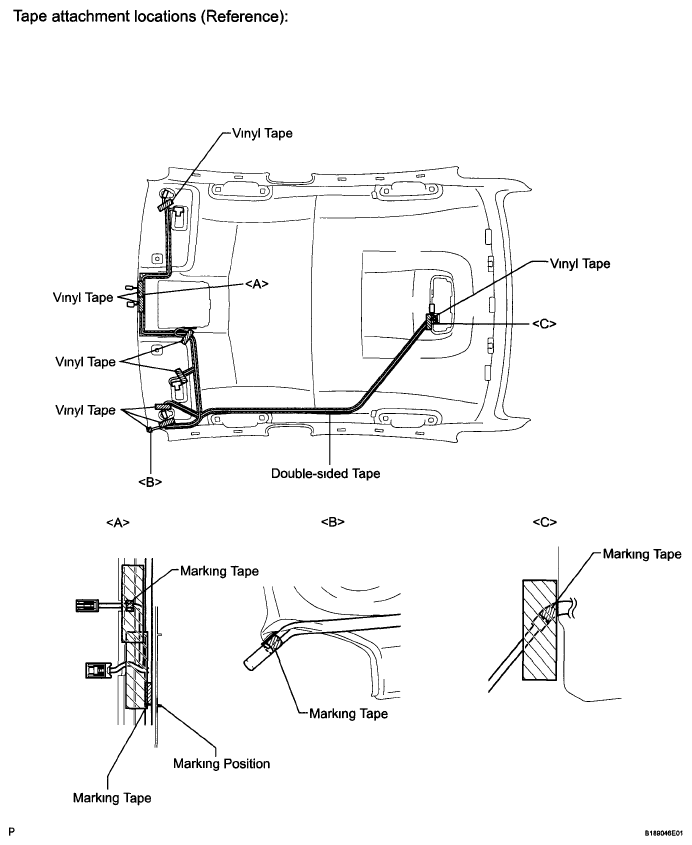

        Fig 5: Identifying Tape Attachment Locations
        G05755674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Securely install the No. 1 roof wire. If the wire is not secured, noise will occur.
  6. INSTALL NO. 1 ROOF WIRE (w/ Sliding Roof)
    1. Install the roof wire.
      1. Remove the peeling paper from one side of double-sided tape.
      2. Attach double-sided tape to the marks on the roof headlining as shown in the illustration
      3. Remove the peeling paper from the other side of double-sided tape
      4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining Temporarily attach the wire harness to the roof headlining Secure the wire harness to the roof headlining with vinyl tape

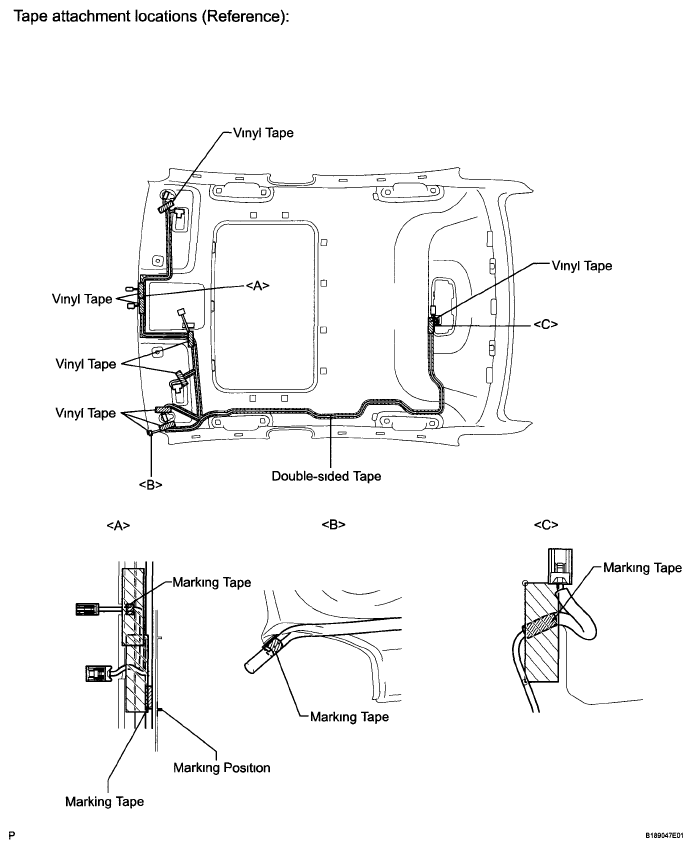

        Fig 6: Identifying Tape Attachment Locations
        G05755675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Securely install the No. 1 roof wire. If the wire is not secured, noise will occur.
  7. INSTALL VANITY LIGHT ASSEMBLY
    1. Engage the claw < A >, and then install the bulb holder with the 2 claws < B > to install the vanity light assembly.

      HINT

      Use the same procedure to install the light on the other side

      Fig 7: Installing Vanity Light Assembly
      G05755676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 ROOF HEADLINING PAD
    1. Install the 2 No 2 roof headlining pads using double-sided tape
      Fig 8: Installing No. 2 Roof Headlining Pad
      G05755668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR NO. 2 SIDE RAIL SPACER LH (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the rear No. 2 side rail spacer LH and install the spacer using double-sided tape as shown in the illustration
    Fig 9: Installing Rear No. 2 Side Rail Spacer LH (W/O Sliding Roof)
    G05755666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR NO. 2 SIDE RAIL SPACER RH (w/o Sliding Roof)

    HINT:

    Use the same procedure for the RH side and the LH side

  11. INSTALL REAR ROOF SILENCER PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the roof silencer pads and install the pads using double-sided tape as shown in the illustration.
      Fig 10: Identifying Rear Roof Silencer Pad (W/O Sliding Roof)
      G05755665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL ROOF HEADLINING PAD LH (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the roof headlining pad LH and install the pads using double-sided tape as shown in the illustration.
      Fig 11: Identifying Roof Headlining Pad LH (W/O Sliding Roof)
      G05755680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL CENTER ROOF SILENCER PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the center roof silencer pad and install the pad using double-sided tape as shown in the illustration
      Fig 12: Identifying Center Roof Silencer Pad (W/O Sliding Roof)
      G05755665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the No. 1 roof silencer pad and install the pad using double-sided tape as shown in the illustration.
      Fig 13: Identifying No. 1 Roof Silencer Pad (W/O Sliding Roof)
      G05755662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR SIDE RAIL SPACER LH (w/ Sliding Roof)
    1. Align the markings on the roof headlining assembly with the rear side rail spacer LH and install the spacer using double-sided tape as shown in the illustration.
      Fig 14: Identifying Rear Side Rail Spacer LH (W/ Sliding Roof)
      G05755667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR SIDE RAIL SPACER RH (w/ Sliding Roof)

    HINT

    Use the same procedure for the RH side and the LH side.

  17. INSTALL ROOF HEADLINING PAD
    1. Align the markings on the roof headlining assembly with the roof headlining pads and install the pads using double-sided tape as shown in the illustration.
      Fig 15: Installing Rear Side Rail Spacer RH (W/ Sliding Roof)
      G05755661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. Place the roof headlining in the vehicle from the front right door.
      Fig 16: Placing Roof Headlining In Vehicle From Front Right Door
      G05755685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook, 10 claws and 2 clips, and install the roof headlining assembly.
      Fig 17: Identifying Hook, Claws And Clips
      G05755656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the roof wire connector and engage each clamp.
    4. Connect each connector to the map light assembly.
      Fig 18: Locating Roof Wire Clamp
      G05755655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. Place the roof headlining in the vehicle from the front right door.
      Fig 19: Placing Roof Headlining In Vehicle From Front Right Door
      G05755688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook, 10 claws, 8 fasteners and 2 clips, and install the roof headlining assembly
      Fig 20: Identifying Hook, Claws, Fasteners And Clips
      G05755689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the roof wire connector and engage each clamp
    4. Connect each connector to the map light assembly.
      Fig 21: Locating Roof Wire Clamp
      G05755655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL VISOR HOLDER
    1. Set the claws of the visor holder as shown in the illustration
    2. Engage the claws and install the visor holder

      HINT

      Use the same procedure to install the holder on the other side.

      Fig 22: Setting Claws Of Visor Holder
      G05254702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL VISOR ASSEMBLY LH
    1. Install the visor assembly LH with the 2 screws
    Fig 23: Installing Visor Assembly LH With Screws
    G04946719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL VISOR ASSEMBLY RH

    HINT

    Use the same procedure for the RH side and the LH side

  23. INSTALL VISOR BRACKET COVER
    1. Engage the 4 claws and install the visor bracket cover

      HINT

      Use the same procedure to install the cover on the other side

      Fig 24: Identifying Claws For Visor Bracket Cover
      G04946746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Put an assist grip sub-assembly together as shown in the illustration
    2. Install the assist grip sub-assembly

      HINT

      Use the same procedure for the other 3 assist grips

      Fig 25: Installing Assist Grip Sub-Assembly
      G05254696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL COAT HOOK
    1. Install the coat hook with the screw

      HINT

      Use the same procedure to install the hook on the other side

    Fig 26: Installing Coat Hook With Screw
    G05755650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL SPOT LIGHT ASSEMBLY  (See INSPECTION )
  27. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)  (See INSTALLATION )
  28. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)  (See INSTALLATION )
  29. INSTALL RAIN SENSOR TAPE  (See INSTALLATION )
  30. INSTALL RAIN SENSOR  (See INSTALLATION )
  31. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER  (See INSTALLATION )
  32. INSTALL ROOF SIDE INNER GARNISH LH
    1. Engage the claw and 4 clips, and install the roof side garnish inner LH
    Fig 27: Identifying Claw And Clips For Roof Side Garnish Inner LH
    G05755649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL ROOF SIDE INNER GARNISH RH

    HINT

    Use the same procedure for the RH side and the LH side

  34. INSTALL REAR SEAT SIDE GARNISH LH
    1. Engage the 5 claws and install the rear seat side garnish LH
      2. Fig 28: Identifying Claws For Rear Seat Side Garnish LH
      G05755648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL REAR SEAT SIDE GARNISH RH

    HINT

    Use the same procedure for the RH side and the LH side

  36. INSTALL CENTER PILLAR GARNISH LH
    1. Engage the 2 claws and install the center pillar garnish LH.
    2. Install the 2 screws
      Fig 29: Identifying Claws For Center Pillar Garnish LH
      G05755698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL LOWER CENTER PILLAR GARNISH LH
    1. Engage the 5 clips and 3 claws, and install the lower center pillar garnish LH.
      Fig 30: Identifying Clips And Claws For Lower Center Pillar Garnish LH
      G05755699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Install the front seat outer belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 31: Installing Front Seat Outer Belt Assembly LH With Bolt
      G05755700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL LAP BELT OUTER ANCHOR COVER LH
    1. Engage the 2 claws and install the lap belt outer anchor cover as shown in the illustration.
    Fig 32: Installing Center Pillar Garnish RH
    G05755701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  41. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH
    1. Install the front seat outer belt assembly RH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    2. Connect the connector.
    Fig 33: Installing Front Seat Outer Belt Assembly RH With Bolt
    G05755647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side

  43. INSTALL FRONT SEAT BELT ANCHOR COVER SUB-ASSEMBLY
    1. Engage the 3 claws and install the front seat belt anchor cover sub-assembly.
      Fig 34: Identifying Claws For Front Seat Belt Anchor Cover Sub-Assembly
      G05755646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL REAR DOOR SCUFF PLATE LH
    1. Engage the 2 clips.
      Fig 35: Identifying Clips For Rear Door Scuff Plate LH
      G05755704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 claws and install the rear door scuff plate LH
    Fig 36: Identifying Claws For Rear Door Scuff Plate LH
    G05755641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL REAR DOOR SCUFF PLATE RH

    HINT

    Use the same procedure for the RH side and the LH side

  46. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY  (See INSTALLATION )
  47. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY  (See INSTALLATION )
  48. ADJUST SHIFT LEVER POSITION  (See ADJUSTMENT )
  49. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR  (See INSTALLATION )
  50. INSTALL FRONT EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  51. CONNECT HEATED OXYGEN SENSOR  (See INSTALLATION )
  52. INSTALL FRONT CENTER FLOOR BRACE  (See INSTALLATION )
  53. INSTALL REAR NO. 1 FLOOR PANEL BRACE  (See INSTALLATION )
  54. INSTALL TAIL EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  55. INSTALL NO. 2 FLOOR UNDER COVER  (See INSTALLATION )
  56. INSTALL NO. 1 FLOOR UNDER COVER  (See INSTALLATION )
  57. INSTALL INSTRUMENT PANEL STAY  (See INSTALLATION  )
  58. INSTALL INSTRUMENT PANEL CLIP  (See INSTALLATION  )
  59. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY  (See INSTALLATION  )
  60. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  61. INSTALL NO. 1 CONSOLE BOX DUCT  (See INSTALLATION  )
  62. INSTALL NO. 2 CONSOLE BOX DUCT  (See INSTALLATION  )
  63. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See INSTALLATION )
  64. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION  )
  65. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION  )
  66. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION  )
  67. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION  )
  68. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  69. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION  )
  70. INSTALL SIDE INSTRUMENT PANEL RH  (See INSTALLATION  )
  71. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION  )
  72. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION  )
  73. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  74. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION  )
  75. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION  )
  76. INSTALL SIDE INSTRUMENT PANEL LH  (See INSTALLATION  )
  77. INSTALL FRONT PILLAR GARNISH LH
    1. Install a new clip < A > on the front pillar garnish LH.
    2. Engage the claw and 2 clips, and install the front pillar garnish LH.
    Fig 37: Installing Front Pillar Garnish LH
    G05755706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  78. INSTALL FRONT PILLAR GARNISH RH

    HINT

    Use the same procedure for the RH side and the LH side

  79. INSTALL FRONT DOOR OPENING TRIM COVER LH
    1. Engage the 4 claws and install the front door opening trim cover LH
    Fig 38: Identifying Claws For Front Door Opening Trim Cover LH
    G05755637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  80. INSTALL FRONT DOOR OPENING TRIM COVER RH

    HINT

    Use the same procedure for the RH side and the LH side.

  81. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Engage the 4 clips.
      Fig 39: Identifying Clips For Front Door Scuff Plate LH
      G05755708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 7 claws and install the front door scuff plate LH.
    Fig 40: Identifying Claws For Front Door Scuff Plate LH
    G05755636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  82. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT

    Use the same procedure for the RH side and the LH side

  83. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  84. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  85. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  86. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  87. INSTALL STEERING PAD  (See INSTALLATION )
  88. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  89. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  90. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See INSTALLATION )
  91. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
  92. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION  )
  93. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION  )
  94. INSTALL CONSOLE BOX  (See REASSEMBLY  )
  95. INSTALL CONSOLE BOX REGISTER ASSEMBLY  (See INSTALLATION  )
  96. INSTALL REAR ASH RECEPTACLE ASSEMBLY  (See INSTALLATION  )
  97. INSTALL FRONT ASH RECEPTACLE ASSEMBLY  (See INSTALLATION  )
  98. INSTALL CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION  )
  99. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  (See INSTALLATION  )
  100. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  (See INSTALLATION  )
  101. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  (See INSTALLATION  )
  102. INSTALL FRONT SEAT ASSEMBLY LH  (See INSTALLATION )
  103. INSTALL REAR INNER SEAT TRACK BRACKET COVER LH  (See INSTALLATION )
  104. INSTALL REAR OUTER SEAT TRACK BRACKET COVER LH  (See INSTALLATION )
  105. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH  (See INSTALLATION )
  106. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH  (See INSTALLATION )
  107. INSTALL FRONT SEAT ASSEMBLY RH

    HINT

    Use the same procedure for the RH side and the LH side.

  108. INSTALL REAR INNER SEAT TRACK BRACKET COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  109. INSTALL REAR OUTER SEAT TRACK BRACKET COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  110. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH

    HINT

    Use the same procedure for the RH side and the LH side.

  111. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH

    HINT

    Use the same procedure for the RH side and the LH side.

  112. INSTALL FRONT SEAT HEADREST ASSEMBLY
  113. INSTALL REAR SEATBACK ASSEMBLY  (See INSTALLATION )
  114. INSTALL REAR SEAT HEADREST ASSEMBLY LH
  115. INSTALL REAR SEAT HEADREST ASSEMBLY RH
  116. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
  117. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: Some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  118. INSPECT STEERING PAD  (See INSTALLATION )
  119. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM ).

  120. INSPECT FRONT SEAT ASSEMBLY  (See INSTALLATION )
  121. INSPECT SHIFT LEVER POSITION  (See ON-VEHICLE INSPECTION )
  122. INSPECT FOR EXHAUST GAS LEAK

    If exhaust gas is leaking, tighten the related parts to stop the leak Replace damaged parts as necessary.

scientia non olet · About LEMON Manuals
