Oil Pump: Removal

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL  (See REMOVAL )
  2. REMOVE ENGINE ROOM SIDE COVER LH  (See REMOVAL )
  3. REMOVE ENGINE ROOM SIDE COVER RH  (See REMOVAL )
  4. REMOVE V-BANK COVER SUB-ASSEMBLY  (See REMOVAL )
  5. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM  (See REMOVAL )
  6. DISCHARGE FUEL SYSTEM PRESSURE

    (See FUEL SYSTEM )

  7. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  8. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  9. REMOVE FRONT WHEEL
  10. REMOVE ENGINE UNDER COVER
  11. REMOVE NO. 2 ENGINE UNDER COVER
  12. REMOVE ENGINE UNDER COVER REAR LH  (See REMOVAL )
  13. REMOVE ENGINE UNDER COVER REAR RH  (See REMOVAL )
  14. DRAIN ENGINE OIL  (See REPLACEMENT  )
  15. DRAIN ENGINE COOLANT  (See ON-VEHICLE INSPECTION )
  16. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (See REMOVAL )

  17. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    (See REMOVAL )

  18. REMOVE NO. 1 AIR CLEANER INLET  (See REMOVAL )
  19. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE  (See REMOVAL )
  20. REMOVE AIR CLEANER CASE SUB-ASSEMBLY  (See REMOVAL )
  21. DISCONNECT UNION TO CHECK VALVE HOSE  (See REMOVAL )
  22. DISCONNECT NO.2 FUEL VAPOR FEED HOSE  (See REMOVAL )
  23. DISCONNECT INLET RADIATOR HOSE  (See REMOVAL )
  24. DISCONNECT OUTLET RADIATOR HOSE  (See REMOVAL )
  25. DISCONNECT RADIATOR RESERVOIR TANK HOSE  (See REMOVAL )
  26. DISCONNECT INLET HEATER WATER HOSE  (See REMOVAL )
  27. DISCONNECT OUTLET HEATER WATER HOSE  (See REMOVAL )
  28. REMOVE NO. 1 COOLER REFRIGERANT SUCTION HOSE  (See REMOVAL )
  29. REMOVE DISCHARGE HOSE SUB-ASSEMBLY  (See REMOVAL )
  30. REMOVE ECM COVER  (See REMOVAL )
  31. DISCONNECT ENGINE WIRE  (See REMOVAL )
  32. DISCONNECT FUEL MAIN TUBE

    (See FUEL SYSTEM )

  33. DISCONNECT NO. 3 FUEL HOSE  (See REMOVAL )
  34. DISCONNECT FUEL TUBE SUB-ASSEMBLY  (See REMOVAL )
  35. REMOVE FRONT LOWER SUSPENSION MEMBER PROTECTOR  (See REMOVAL )
  36. DISCONNECT STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY  (See REMOVAL )
  37. DISCONNECT HEIGHT CONTROL SENSOR LINK  (See REMOVAL )
  38. REMOVE FRONT SHOCK ABSORBER ASSEMBLY LH  (See REMOVAL )
  39. REMOVE FRONT SHOCK ABSORBER ASSEMBLY RH  (See REMOVAL )
  40. REMOVE FRONT LOWER BALL JOINT ASSEMBLY LH  (See REMOVAL )
  41. REMOVE FRONT LOWER BALL JOINT ASSEMBLY RH  (See REMOVAL )
  42. DISCONNECT POWER STEERING LINK WIRE HARNESS  (See REMOVAL )
  43. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY  (See DISASSEMBLY )
  44. REMOVE ENGINE AND TRANSMISSION ASSEMBLY  (See REMOVAL )
  45. INSTALL ENGINE HANGERS  (See REMOVAL )
  46. REMOVE STARTER ASSEMBLY  (See DISASSEMBLY )
  47. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY

    (See REMOVAL )

  48. REMOVE OIL DIPSTICK GUIDE SUB-ASSEMBLY  (See REMOVAL )
  49. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH  (See REMOVAL )
  50. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH  (See REMOVAL )
  51. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY  (See REMOVAL )
  52. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY  (See REMOVAL )
  53. FIX ENGINE ON ENGINE STAND  (See REMOVAL )
  54. REMOVE V-RIBBED BELT  (See REMOVAL )
  55. REMOVE NO. 2 ENGINE COVER  (See REMOVAL )
  56. REMOVE NO. 1 ENGINE COVER  (See REMOVAL )
  57. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY  (See REMOVAL )
  58. REMOVE GENERATOR ASSEMBLY  (See REMOVAL )
  59. REMOVE COOLER COMPRESSOR ASSEMBLY  (See DISASSEMBLY )
  60. REMOVE ENGINE MOUNTING BRACKET LH  (See REMOVAL )
  61. REMOVE ENGINE MOUNTING BRACKET RH  (See REMOVAL )
  62. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY  (See REMOVAL )
  63. REMOVE WATER PUMP PULLEY  (See REMOVAL )
  64. REMOVE ENGINE WIRE  (See REMOVAL )
  65. REMOVE INJECTOR DRIVER  (See REMOVAL )
  66. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    (See REMOVAL )

  67. REMOVE NO. 2 SURGE TANK STAY  (See REMOVAL )
  68. DISCONNECT WATER HOSE JOINT  (See REMOVAL )
  69. REMOVE CRANKSHAFT PULLEY  (See REMOVAL )
  70. REMOVE WATER INLET  (See REMOVAL )
  71. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY  (See DISASSEMBLY )
  72. REMOVE OIL PAN SUB-ASSEMBLY  (See DISASSEMBLY )
  73. REMOVE OIL STRAINER SUB-ASSEMBLY  (See DISASSEMBLY )
  74. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY  (See REMOVAL )
  75. REMOVE NO. 1 FUEL PIPE  (See REMOVAL )
  76. DISCONNECT NO. 2 FUEL PIPE  (See REMOVAL )
  77. REMOVE FUEL PUMP ASSEMBLY  (See INSTALLATION )
  78. REMOVE NO. 2 FUEL PIPE  (See REMOVAL )
  79. REMOVE IGNITION COIL ASSEMBLY  (See REMOVAL )
  80. REMOVE NO. 1 OIL PIPE  (See DISASSEMBLY )
  81. REMOVE NO. 2 OIL PIPE  (See DISASSEMBLY )
  82. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 2)  (See DISASSEMBLY )
  83. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 1)  (See DISASSEMBLY )
  84. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
    1. Remove the bolt and wiring harness clamp bracket.
      Fig 1: Locating Bolt For Wiring Harness Bracket
      G05287609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 25 bolts and 2 nuts as shown in the illustration.
      Fig 2: Locating Bolts And Nuts
      G05316772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.
      NOTE: Be careful not to damage the contact surfaces of the cylinder head, cylinder block and chain cover.

      HINT:

      Tape the screwdriver tip before use.

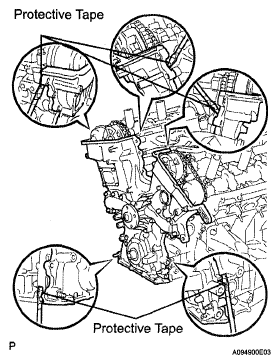

      Fig 3: Removing Timing Chain Cover
      G05316773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket.
      Fig 4: Locating Gasket
      G05287612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  85. REMOVE TIMING CHAIN CASE OIL SEAL
    1. Using a screwdriver, pry out the oil seal.

      HINT:

      Tape the screwdriver tip before use.

      Fig 5: Removing Timing Chain Case Oil Seal
      G04974602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
