Rear Suspension Member: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR WHEELS
  2. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR  (See REMOVAL )
  3. REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR

    HINT:

    Perform the same procedure as the No. 2 differential support protector

  4. REMOVE REAR SUSPENSION MEMBER BRACE LH  (See REMOVAL )
  5. REMOVE REAR SUSPENSION MEMBER BRACE RH

    HINT:

    Perform the same procedure as the LH side

  6. REMOVE NO. 2 FLOOR UNDER COVER  (See REMOVAL )
  7. REMOVE NO. 1 FLOOR UNDER COVER  (See REMOVAL )
  8. REMOVE REAR NO. 1 FLOOR PANEL BRACE  (See REMOVAL )
  9. REMOVE FRONT CENTER FLOOR BRACE  (See REMOVAL )
  10. REMOVE TAIL EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  11. DISCONNECT HEATED OXYGEN SENSOR  (See REMOVAL )
  12. REMOVE FRONT EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  13. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR  (See REMOVAL )
  14. REMOVE OUTSIDE AIR GUIDE PLATE RH  (See REMOVAL )
  15. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY  (See REMOVAL )
  16. DRAIN DIFFERENTIAL OIL  (See REPLACEMENT )
  17. REMOVE REAR AXLE SHAFT NUT LH  (See REMOVAL )
  18. REMOVE REAR AXLE SHAFT NUT RH

    HINT

    Perform the same procedure as the LH side

  19. SEPARATE REAR DISC BRAKE CYLINDER ASSEMBLY LH  (See DISASSEMBLY )
  20. SEPARATE REAR DISC BRAKE CYLINDER ASSEMBLY RH

    HINT

    Perform the same procedure as the LH side.

  21. REMOVE REAR DISC (for LH Side)  (See REMOVAL )
  22. REMOVE REAR DISC (for RH Side)

    HINT:

    Perform the same procedure as the LH side

  23. SEPARATE REAR SPEED SENSOR LH  (See REMOVAL )
  24. SEPARATE REAR SPEED SENSOR RH

    HINT:

    Perform the same procedure as the LH side.

  25. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY  (See REMOVAL )
  26. SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Perform the same procedure as the No. 3 parking brake cable assembly.

  27. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH  (See REMOVAL )
  28. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT

    Perform the same procedure as the LH side.

  29. REMOVE TOE CONTROL LINK SUB-ASSEMBLY LH  (See REMOVAL )
  30. REMOVE TOE CONTROL LINK SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side

  31. REMOVE REAR NO. 2 UPPER CONTROL ARM ASSEMBLY (for LH Side)  (See REMOVAL )
  32. REMOVE REAR NO. 2 UPPER CONTROL ARM ASSEMBLY (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  33. REMOVE REAR NO. 1 UPPER CONTROL ARM ASSEMBLY (for LH Side)  (See REMOVAL )
  34. REMOVE REAR NO. 1 UPPER CONTROL ARM ASSEMBLY (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  35. SEPARATE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  (See REMOVAL )
  36. SEPARATE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side

  37. REMOVE REAR AXLE ASSEMBLY LH  (See REMOVAL )
  38. REMOVE REAR AXLE ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  39. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. Remove the bolt and nut (B), and separate the rear stabilizer link assembly and the height control sensor link bracket
    2. Remove the bolt (A) and nut, and separate the rear shock absorber with coil spring
      NOTE: Turn the bolt while holding the nut.
    3. Remove the bolt and nut (C), and remove the rear No. 2 suspension arm assembly
    Fig 1: Locating Rear No. 2 Suspension Arm Assembly LH Nuts And Bolts
    G05752421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT

    Perform the same procedure as the LH side.

  41. REMOVE REAR DRIVE SHAFT ASSEMBLY LH  (See REMOVAL )
  42. REMOVE REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  43. REMOVE HOLE SNAP RING (for LH Side)  (See REMOVAL )
  44. REMOVE HOLE SNAP RING (for RH Side)

    HINT:

    Perform the same procedure as the LH side

  45. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
    1. Disengage the clamp and disconnect the connector.
      Fig 2: Locating Connector And Clamp
      G05752422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and rear height control sensor sub-assembly.
    Fig 3: Locating Rear Height Control Sensor Sub-Assembly Bolts
    G05752423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE REAR STABILIZER BAR  (See REMOVAL )
  47. REMOVE REAR SUSPENSION REAR LOWER MEMBER BRACE LH
    1. Remove the 4 bolts and rear suspension member brace LH
    Fig 4: Locating Rear Suspension Member Brace LH Bolts
    G05752424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE REAR SUSPENSION REAR LOWER MEMBER BRACE RH

    HINT:

    Perform the same procedure as the LH side

  49. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY  (See DISASSEMBLY )
  50. REMOVE REAR SUSPENSION MEMBER
    1. Support the rear suspension member with a jack.
      Fig 5: Supporting Rear Suspension Member With Jack
      G05752425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 bolts, 2 rear suspension member stoppers, 2 differential support member lower stoppers and rear suspension member lower stoppers from the rear suspension member.

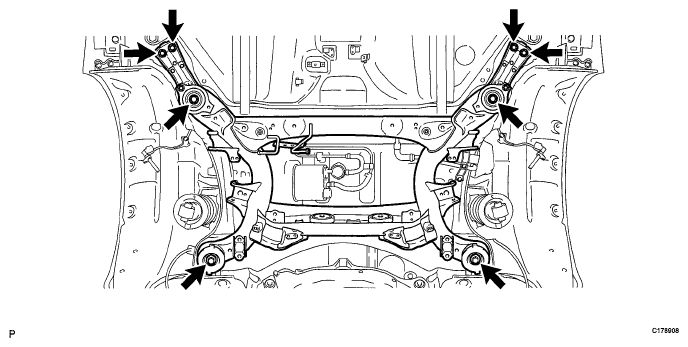

      Fig 6: Locating Rear Suspension Member Bolts
      G05752426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Lower the jack slowly and remove the rear suspension member
  51. REMOVE REAR SUSPENSION MEMBER REAR UPPER STOPPER (for LH Side)
    1. Remove the rear suspension member rear upper stopper from the rear suspension member sub-assembly
    Fig 7: Identifying Rear Suspension Member Rear Upper Stopper
    G05752427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE REAR SUSPENSION MEMBER REAR UPPER STOPPER (for RH Side)

    HINT:

    Perform the same procedure as the LH side

  53. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)
    1. Using SST, remove the rear suspension member front body mounting cushion, while applying grease to the clearance between the rear suspension member front body mounting cushion and the rear suspension member sub-assembly.

      SST 09950-00020, 09950-00030, 09950-40011 (09957-04010), 09950-60010 (09951-00300)

      NOTE:
      • Apply a small amount of grease to the threads of SST (center bolt) before use.
      • Be careful as the body mounting cushion may fly out.
      • The rear suspension member front body mounting cushion cannot be reused.
      Fig 8: Removing Rear Suspension Member Front Body Mounting Cushion
      G05752428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. If the outer casing of the rear suspension member front body mounting cushion remains, insert SST between the rear suspension member front body mounting cushion and the rear suspension member sub-assembly, then remove the outer casing

      SST 09608-06041, 09950-00020, 09950-00030, 09950-60010 (09951-00550)

      Fig 9: Removing Outer Casing Using SST
      G05752429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)

    HINT:

    Perform the same procedure as the LH side

  55. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for LH Side)
    1. Using SST, remove the rear suspension member rear body mounting cushion, while applying grease to the clearance between the rear suspension member rear body mounting cushion and the rear suspension member sub-assembly

      SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00320)

      Fig 10: Removing Rear Suspension Member Rear Body Mounting Cushion
      G05752430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Apply a small amount of grease to the threads of SST (center bolt) before use.
      • Be careful as the body mounting cushion may fly out.
      • The rear suspension member rear body mounting cushion cannot be reused.
  56. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for RH Side)

    HINT:

    Perform the same procedure as the LH side

  57. REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION  (See REMOVAL )
  58. REMOVE REAR NO. 2 DIFFERENTIAL MOUNT CUSHION  (See REMOVAL )
  59. REMOVE HOLE PLUG
    1. Remove the 4 hole plugs from the rear suspension member sub-assembly
    Fig 11: Locating Rear Suspension Member Sub-Assembly Hole Plugs
    G05752431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
