Differential Mount Cushion: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR SUSPENSION MEMBER
HINT

Refer to the procedure up to Remove Rear Suspension Member (See REMOVAL )
REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION
1. Using SST, remove the rear No. 1 differential mount cushion

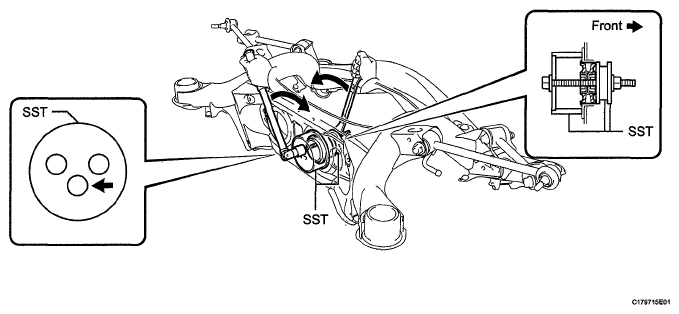

  Fig 1: Identifying Rear No. 1 Differential Mount Cushion With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09316-12010, 09570-24011
  NOTE:
  - Do not bring SST into contact with the rear suspension member.
  - Apply a small amount of grease to the threads of SST before use.
  - Set SST in the correct direction.
  - Do not slant the bolts of SST.
  - Tighten the 2 bolts of SST equally into the 2 holes of the rear No. 1 differential mount cushion.
  - Do not reuse the rear No. 1 differential mount cushion.
REMOVE REAR NO. 2 DIFFERENTIAL MOUNT CUSHION
1. Using SST, remove the rear No. 2 differential mount cushion.

  Fig 2: Identifying Rear No. 2 Differential Mount Cushion With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09316-12010, 09570-24011
  NOTE:
  - Do not bring SST into contact with the rear suspension member.
  - Apply a small amount of grease to the threads of SST before use.
  - Set SST in the correct direction.
  - Do not slant the bolt of SST.
  - Do not reuse the rear No. 2 differential mount cushion.
