Propeller Shaft Assembly: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 2 FLOOR UNDER COVER
1. Remove the 6 clips, 3 grommets, and No. 2 floor under cover.
REMOVE NO. 1 FLOOR UNDER COVER
1. Remove the 5 clips, 3 grommets, and No 1 floor under cover.
Fig 1: Locating Clips, Grommets And Floor Under Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TAIL EXHAUST PIPE ASSEMBLY (See REMOVAL )
REMOVE REAR NO. 1 FLOOR PANEL BRACE (See REMOVAL )
REMOVE FRONT CENTER FLOOR BRACE (See REMOVAL )
DISCONNECT HEATED OXYGEN SENSOR (See REMOVAL )
REMOVE FRONT EXHAUST PIPE ASSEMBLY (See REMOVAL )
REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
1. Remove the 4 nuts, 2 bolts and front No. 1 floor heat insulator.
Fig 2: Locating Clips, Grommets, And Floor Under Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OUTSIDE AIR GUIDE PLATE RH
1. Remove the 4 nuts and outside air guide plate RH.
Fig 3: Locating Outside Air Guide Plate RH With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
1. Using SST, loosen the adjusting nut until it can be turned by hand.
  SST 09922-10010

  HINT:

  Use 2 of the same SST.

  Fig 4: Locating Adjusting Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Put matchmarks on the transmission companion flange, flexible coupling and intermediate shaft.
3. Remove the 3 bolts, 3 washers and 3 nuts.
  NOTE: Do not separate the propeller shaft and flexible coupling.

  Fig 5: Locating Propeller Shaft Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Put matchmarks on the differential companion flange, flexible coupling and propeller shaft.
5. Remove the 3 bolts, 3 washers and 3 nuts
  NOTE: Do not separate the propeller shaft and flexible coupling.

  Fig 6: Identifying Matchmarks On Differential Companion Flange
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 center support bearing set bolts and 2 center support bearing washers
  HINT:

  Some vehicles are not equipped with center support bearing washers.

  Fig 7: Locating Center Support Bearing Set Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Push the propeller shaft with center bearing assembly straight ahead to compress and pull out the propeller shaft with center bearing assembly from the differential centering pin.
  NOTE: Press the propeller shaft straight ahead to keep the transmission and intermediate shaft aligned straight.

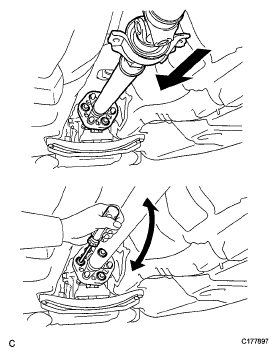

  Fig 8: Pushing Propeller Shaft With Center Bearing Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If it is difficult to separate the flange from the flexible coupling, pry it using a screwdriver.
8. Pull the propeller shaft outward from the rear of the vehicle.
NOTE: Do not separate the intermediate shaft and propeller shaft.
