Personal Light: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL MAP LIGHT BULB
    1. Install the 3 map light bulbs to the map light sockets.
    2. Turn the 3 map light bulbs and 3 map light sockets in the direction indicated by the arrows in the illustration and install them as a unit
    Fig 1: Removing 3 Map Light Bulbs
    G05754635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)
    1. Connect the connector
    2. Engage the 2 guides

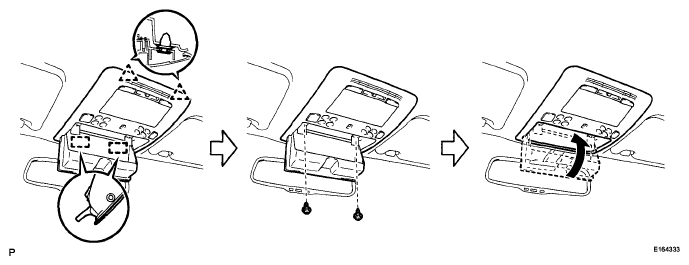

      Fig 2: Installing Clips And Map Light Assembly
      G05754636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 clips and install the map light assembly
    4. Install the 2 screws
    5. Close the cover.
  3. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Connect the connector
    2. Engage the 2 guides.

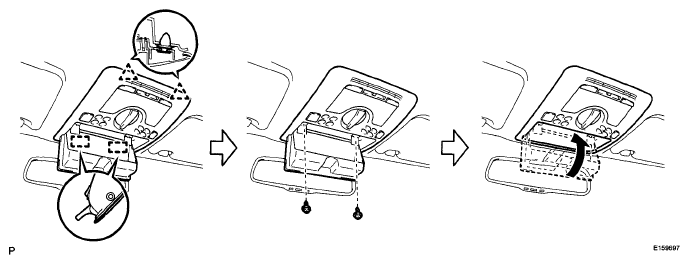

      Fig 3: Installing Map Light Assembly (W/ Sliding Roof)
      G05754637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 clips and install the map light assembly
    4. Install the 2 screws.
    5. Close the cover
