Brake Pedal: Removal

  1. PRECAUTION
  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  ON-VEHICLE INSPECTION  )
  3. REMOVE ENGINE ROOM SIDE COVER LH (See  REMOVAL  )
  4. REMOVE ENGINE ROOM COVER SIDE (See  DTC U0001 HIGH SPEED CAN COMMUNICATION CIRCUIT  )
  5. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH (See  REMOVAL  )
  6. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH (See  REMOVAL  )
  7. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (See  REMOVAL  )
  8. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (See  REMOVAL  )
  9. REMOVE FRONT FENDER TO COWL SIDE SEAL LH (See  REMOVAL  )
  10. REMOVE FRONT FENDER TO COWL SIDE SEAL RH (See  REMOVAL  )
  11. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  REMOVAL  )
  12. PERFORM ACCUMULATOR ZERO DOWN (w/ ECB) (See  BRAKE PEDAL   )
  13. REMOVE BRAKE CONTROL OFF (w/ ECB) (See  BLEEDING   )
  14. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  15. SEPARATE ENGINE ROOM RELAY NO.3 BLOCK (w/VSC) (See )
  16. REMOVE FRONT WHEEL
  17. DRAIN BRAKE FLUID
    NOTE: If brake fluid leaks onto any painted surface, wash or otherwise remove it completely.
  18. REMOVE CONSOLE UPPER PANEL GARNISH FRONT (See  REMOVAL  )
  19. REMOVE CONSOLE PANEL UPPER PANEL SUBASSEMBLY (See  REMOVAL  )
  20. REMOVE INSTRUMENT PANEL FINISH PANEL END LH (See  REMOVAL  )
  21. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  22. REMOVE FRONT DOOR OPENING TRIM COVER LH (See  REMOVAL  )
  23. REMOVE INSTRUMENT SIDE PANEL LH (See  REMOVAL  )
  24. REMOVE INSTRUMENT PANEL UNDER COVER NO.1 SUB-ASSEMBLY (See  REMOVAL  )
  25. REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY NO.1 (See  REMOVAL  )
  26. REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY NO.1 LOWER (See  REMOVAL  )
  27. REMOVE BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY (w/ VSC) (See  REMOVAL   )
  28. REMOVE ABS AND TRACTION ACTUATOR ASSEMBLY (w/ VSC) (See  REMOVAL  )
  29. REMOVE SKID CONTROL ECU ASSEMBLY (w/ ECB) (See  REMOVAL  )
  30. REMOVE BRAKE ACTUATOR ASSEMBLY WITH ACTUATOR BRACKET (w/ ECB) (See  REMOVAL  )
  31. REMOVE RESERVOIR TUBE NO.1 HOSE (w/ ECB) (See  REMOVAL   )
  32. REMOVE BRAKE PEDAL RETURN SPRING (w/ ECB) (See  DISASSEMBLY   )
  33. REMOVE BRAKE MASTER CYLINDER PUSH ROD CLEVIS (w/ ECB) (See  DISASSEMBLY   )
  34. REMOVE BRAKE MASTER CYLINDER ASSEMBLY WITH STROKE SIMULATOR (w/ ECB) (See  DISASSEMBLY   )
  35. REMOVE BRAKE BOOSTER GASKET (w/ ECB) (See  DISASSEMBLY   )
  36. REMOVE BRAKE PEDAL RETURN SPRING (w/ VSC) (See  REMOVAL   )
  37. REMOVE BRAKE MASTER CYLINDER PUSH ROD CLEVIS (w/ VSC) (See  REMOVAL   )
  38. REMOVE BRAKE BOOSTER ASSEMBLY (w/ VSC) (See  REMOVAL   )
  39. REMOVE BRAKE BOOSTER GASKET (w/ VSC)
    1. Remove the brake booster gasket.
  40. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY (w/VSC)
    1. Disconnect the 2 connectors.
    2. Disengage the wire harness clamp.

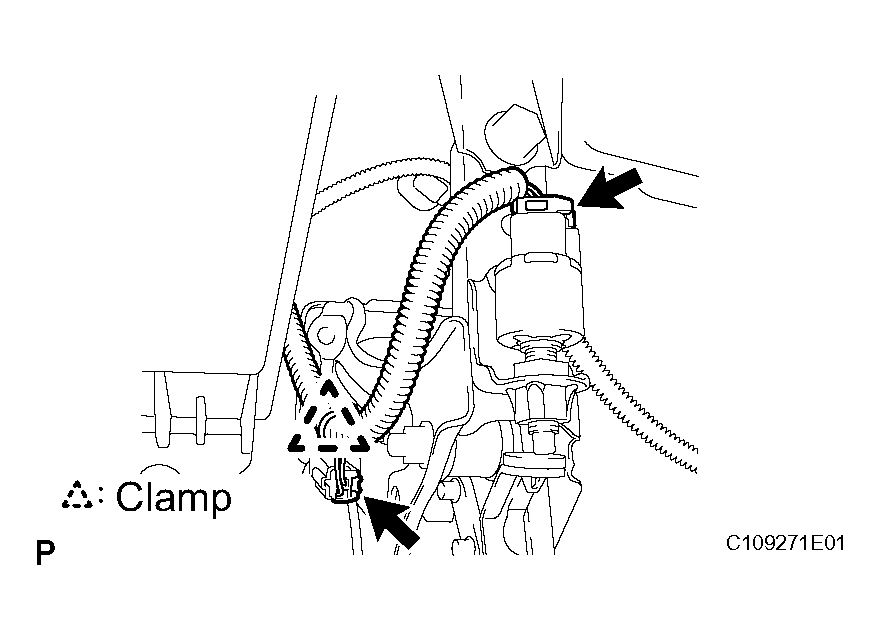

      Fig 1: Disconnecting Connectors
      G04025303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and brake pedal support assembly.
      Fig 2: Locating Brake Pedal Support Assembly Bolt
      G04025314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY (w/ECB)
    1. Disconnect the 3 connectors.
    2. Disengage the wire harness clamp.

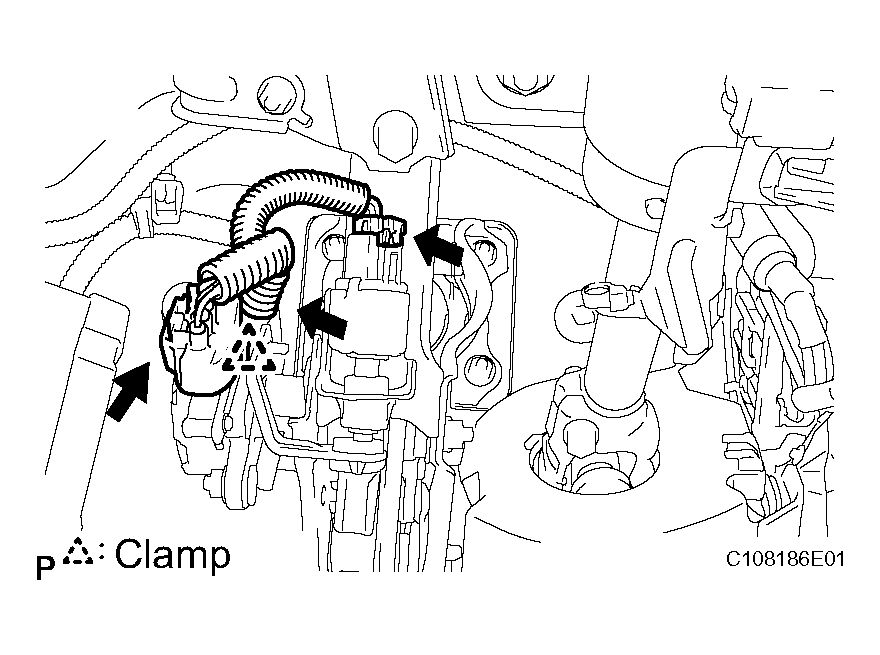

      Fig 3: Disengaging Wire Harness Clamp
      G04025305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and brake pedal support assembly.

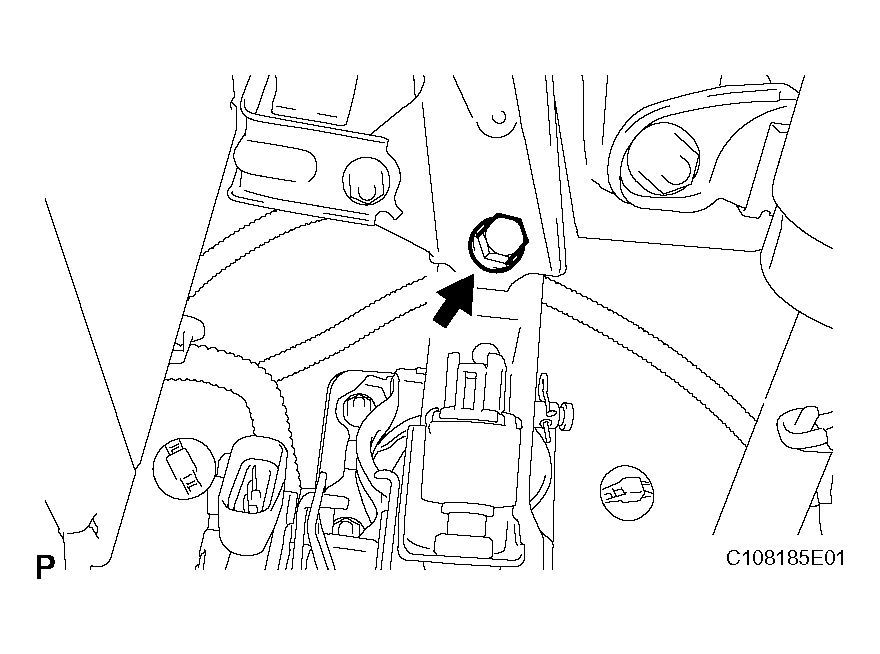

      Fig 4: Identifying Bolt And Brake Pedal Support Assembly
      G04025306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
