Front Passenger Airbag Assembly: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY
(See REMOVAL )

HINT:

Refer to the procedures up to "REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY".
REMOVE SIDE DEFROSTER NOZZLE NO.1 DUCT (See REMOVAL )
REMOVE HEATER TO REGISTER NO.1 DUCT (See REMOVAL )
REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

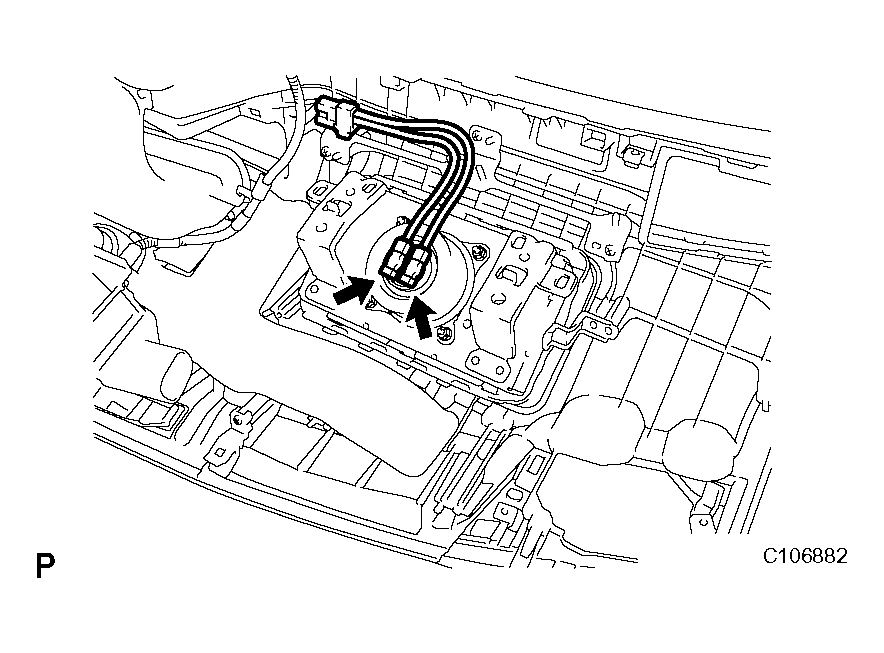

1. Disconnect the 2 connectors and remove the instrument panel wire assembly from the front passenger airbag assembly.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

  Fig 1: Identifying Instrument Panel Wire Assembly From Front Passenger Airbag Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

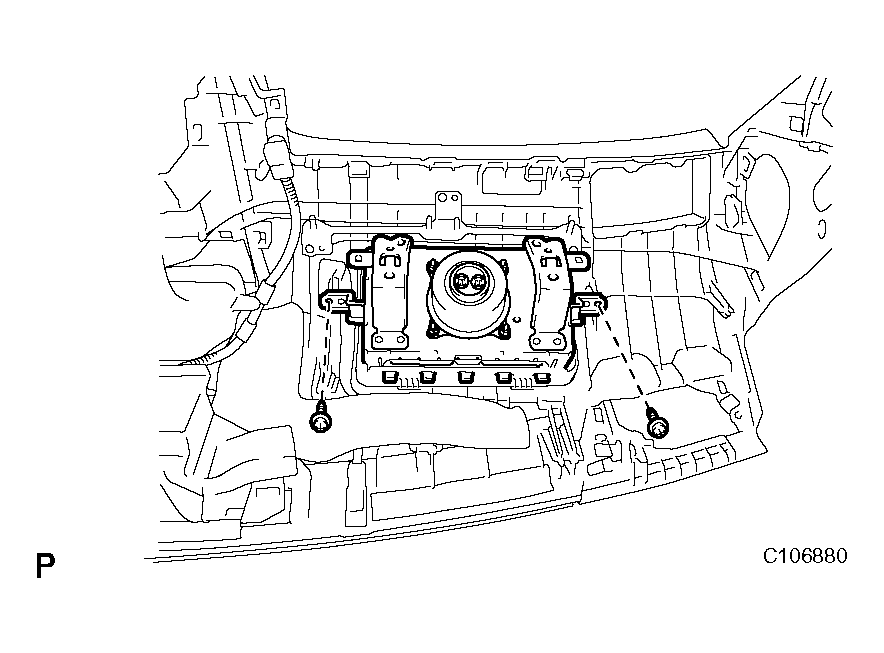

2. Remove the 2 screws.

  Fig 2: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

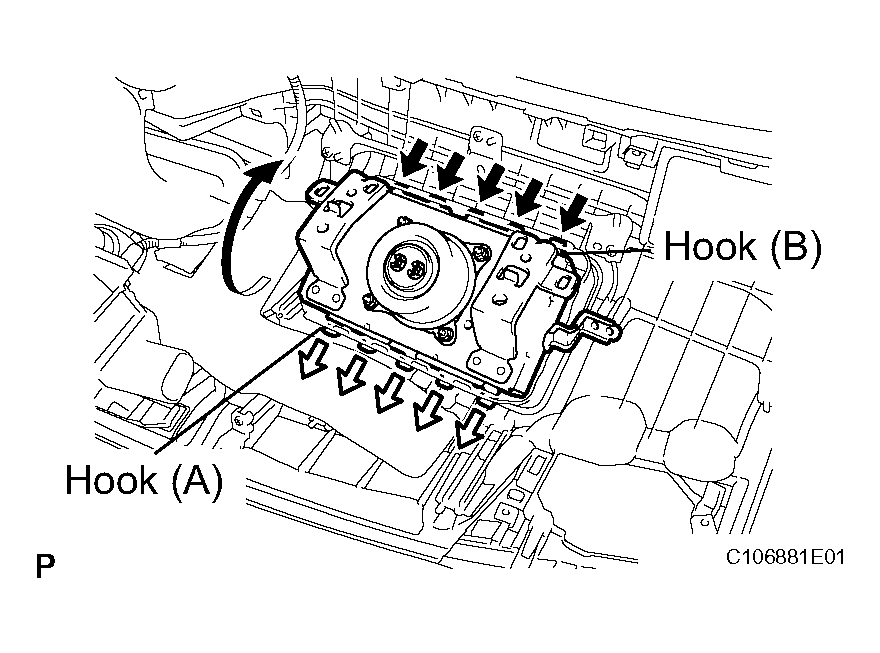

3. Disengage the 5 hooks (A).
4. Disengage the 5 hooks (B) and remove the front passenger airbag assembly from the instrument panel.

  Fig 3: Identifying Front Passenger Airbag Assembly From Instrument Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
