BRAKE CONTROL BRAKE ACTUATOR (w/ VSC): Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  3. REMOVE ENGINE ROOM COVER SIDE (See  REMOVAL  )
  4. REMOVE ENGINE ROOM SIDE COVER LH (See  REMOVAL  )
  5. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH (See  REMOVAL  )
  6. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH (See  REMOVAL  )
  7. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (See  REMOVAL  )
  8. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (See  REMOVAL  )
  9. REMOVE FRONT FENDER TO COWL SIDE SEAL LH (See  REMOVAL  )
  10. REMOVE FRONT FENDER TO COWL SIDE SEAL RH (See  REMOVAL  )
  11. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  REMOVAL  )
  12. SEPARATE ENGINE ROOM RELAY NO.3 BLOCK
    1. Remove the nut, bolt and engine room relay No.3 block.
  13. REMOVE FRONT WHEEL
  14. DRAIN BRAKE FLUID
    NOTE: If brake fluid leaks onto any painted surface, wash or otherwise remove it completely.
  15. REMOVE BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY (See  REMOVAL  )
  16. REMOVE ABS AND TRACTION ACTUATOR ASSEMBLY WITH BRACKET
    1. Release the lock lever and disconnect the actuator connector.

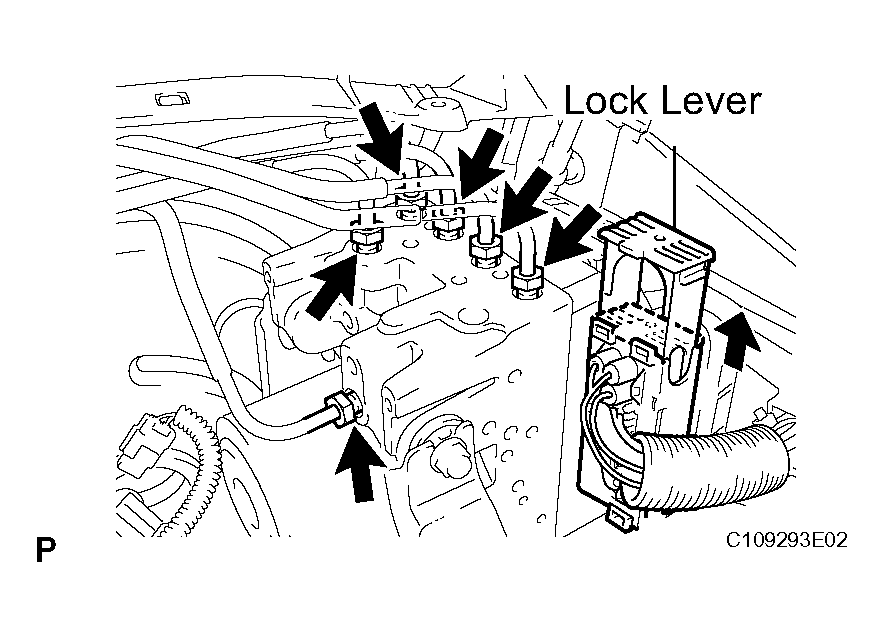

      Fig 1: Releasing Lock Lever
      G04025212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, disconnect the 6 brake tubes from the actuator assembly with bracket.

      SST 09023-00101

    3. Use tags or make a memo to identify the places to reconnect.

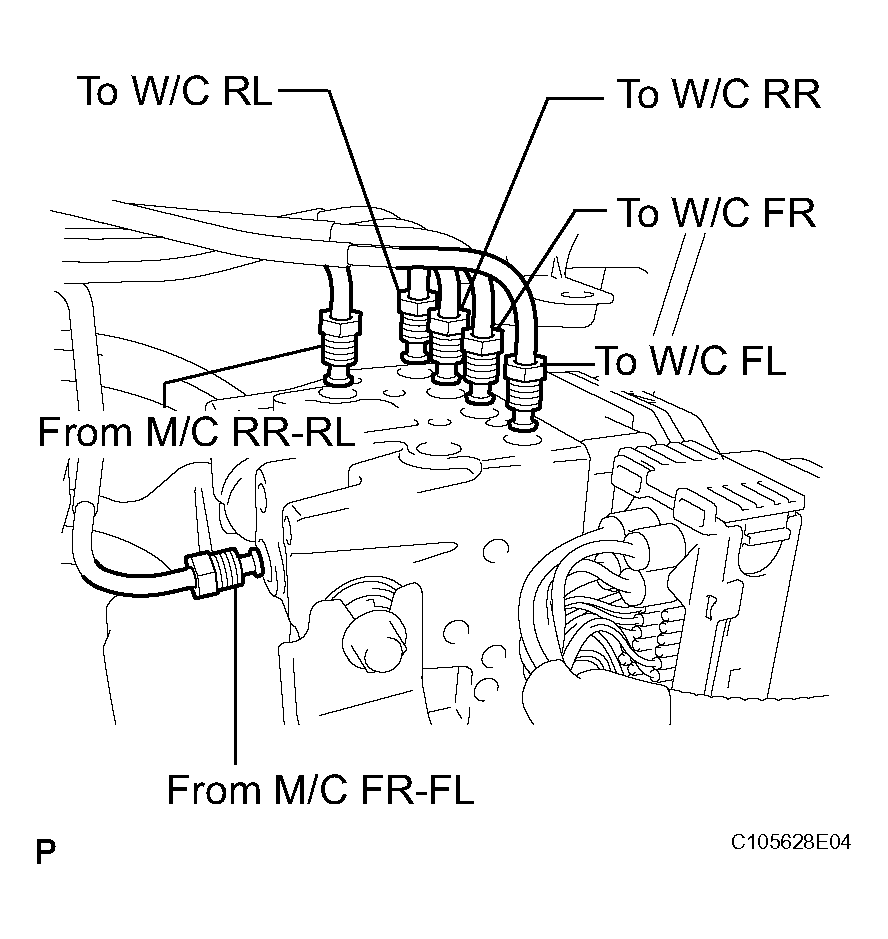

      Fig 2: Identifying Brake Tubes From Actuator Assembly
      G04025213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, disconnect the brake No.3 tube from the flexible hose.

      SST 09023-00101

    5. Separate the grommet and remove the brake tube No.3.
      NOTE: Do not damage the brake tube No.3.

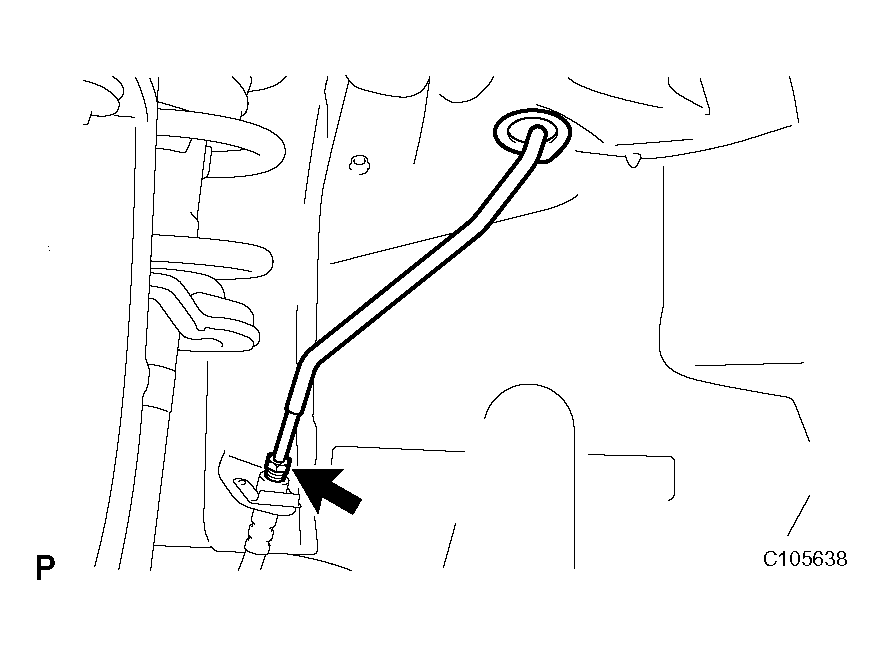

      Fig 3: Identifying Brake No.3 Tube From Flexible Hose
      G04025214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 bolts, nut and actuator assembly from the body with bracket.
      NOTE: Do not damage the brake tubes.
      Fig 4: Locating Actuator Assembly Bracket To Body 2 Bolts And Nut
      G04025216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
