BRAKE MASTER CYLINDER (w/ ECB): Disassembly

REMOVE BRAKE MASTER CYLINDER ASSEMBLY
1. Using SST, separate the brake stroke simulator tube from the brake stroke simulator cylinder subassembly.
  SST 09023-00101
2. Remove the 2 nuts, 2 brake master cylinder gaskets, brake master cylinder bracket and brake stroke simulator bracket.

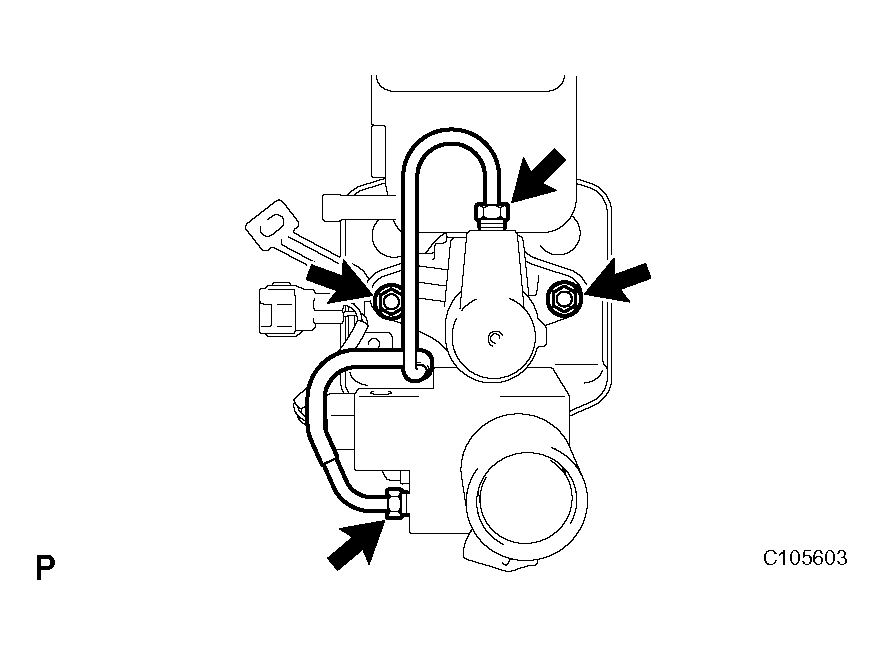

  Fig 1: Identifying Nuts, Brake Master Cylinder Gaskets, Brake Master Cylinder Bracket And Brake Stroke Simulator Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE MASTER CYLINDER RESERVOIR
1. Remove the screw and brake master cylinder reservoir assembly.

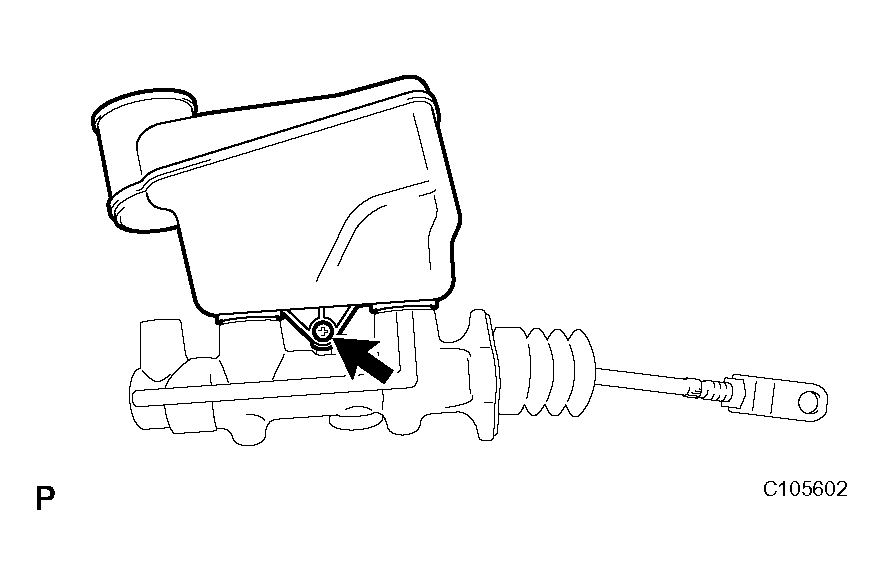

  Fig 2: Identifying Screw And Brake Master Cylinder Reservoir Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 master cylinder reservoir grommets.
REMOVE BRAKE MASTER CYLINDER PUSH ROD CLEVIS
1. Remove the push rod clevis and lock nut.
REMOVE BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY
1. Separate the connector from the brake stroke simulator bracket.
2. Remove the 2 bolts and the brake stroke simulator cylinder sub-assembly from the brake stroke simulator bracket.

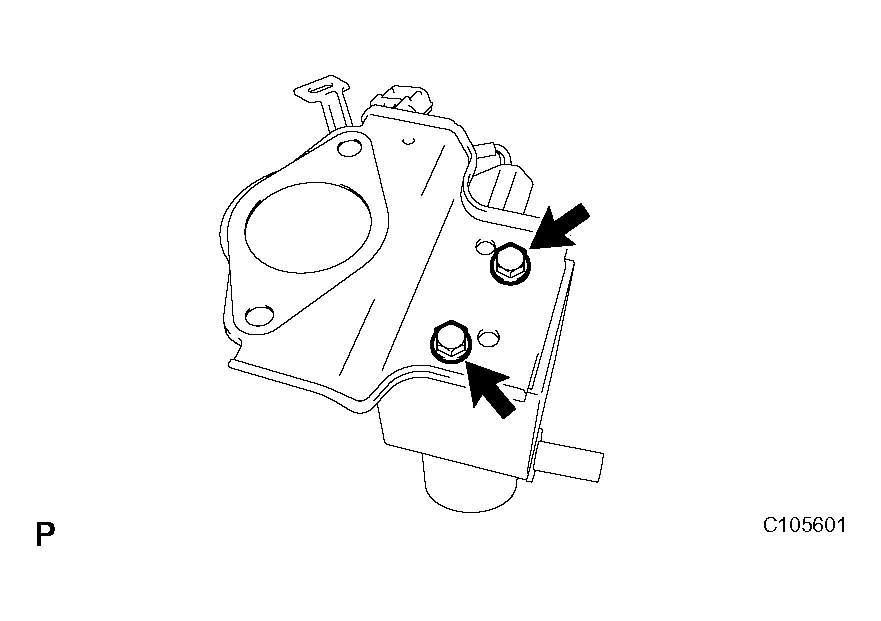

  Fig 3: Identifying Bolts And Brake Stroke Simulator Cylinder Sub-Assembly From Brake Stroke Simulator Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
