BRAKE MASTER CYLINDER (w/ VSC): Removal

PRECAUTION
(See BRAKE SYSTEM )
REMOVE COOL AIR INTAKE DUCT SEAL (See ON-VEHICLE INSPECTION )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
REMOVE ENGINE ROOM COVER SIDE (See INSTALLATION )
REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH (See REMOVAL )
REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH (See REMOVAL )
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (See REMOVAL )
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (See REMOVAL )
REMOVE FRONT FENDER TO COWL SIDE SEAL LH (See REMOVAL )
REMOVE FRONT FENDER TO COWL SIDE SEAL RH (See REMOVAL )
REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See REMOVAL )
DRAIN BRAKE FLUID
NOTE: If brake fluid leaks onto any painted surface, wash or otherwise remove it completely.
REMOVE ENGINE ROOM RELAY NO.3 BLOCK
1. Remove the bolt, nut and relay No.3 block.
  NOTE: Cover the relay No.3 block with a shop rag or piece of cloth to prevent brake fluid from adhering to it.

  Fig 1: Identifying No. 3 Engine Room Relay Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE MASTER CYLINDER SUBASSEMBLY

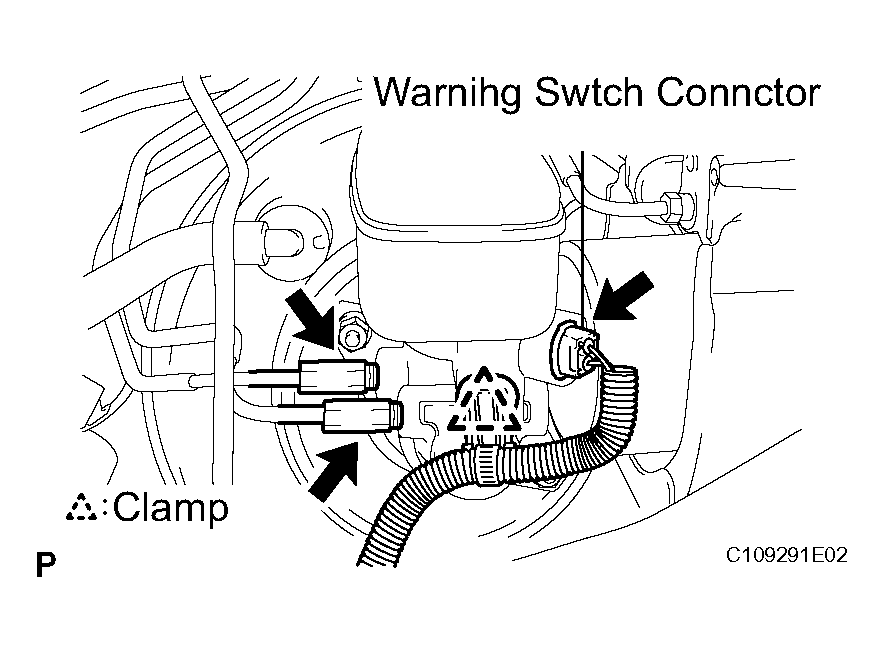

1. Disengage the clamp and disconnect the warning switch connector.
2. Using SST, disconnect the 2 brake tubes from the brake master cylinder sub-assembly.
  SST 09023-00101

  Fig 2: Disconnecting Warning Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

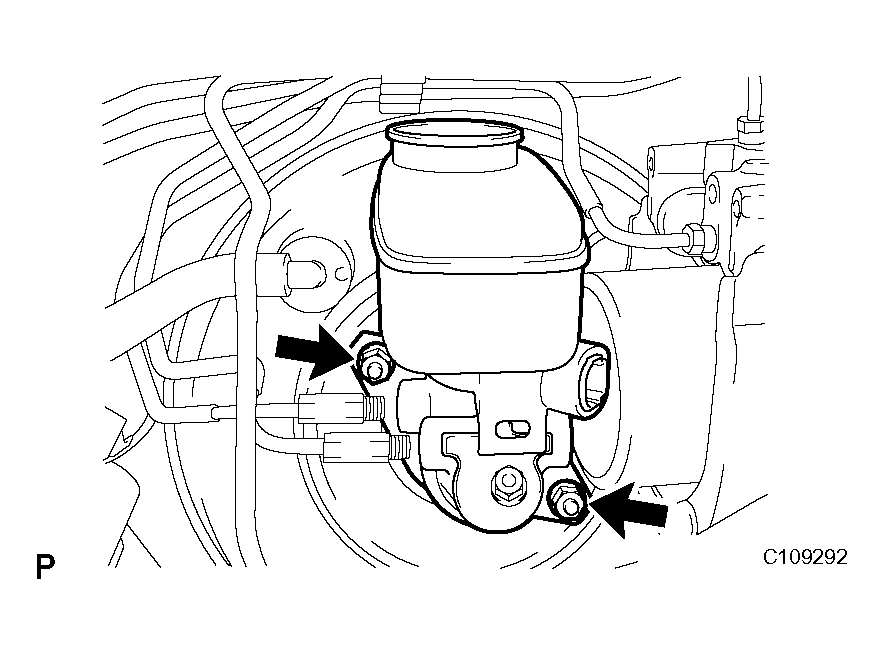

3. Remove the 2 nuts and brake master cylinder subassembly from the brake booster assembly.
4. Remove the O-ring from the brake master cylinder sub-assembly.

  Fig 3: Removing O-Ring From Brake Master Cylinder Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
