SKID CONTROL ECU (w/ ECB): Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE ENGINE ROOM SIDE COVER LH
REMOVE SKID CONTROL ECU ASSEMBLY

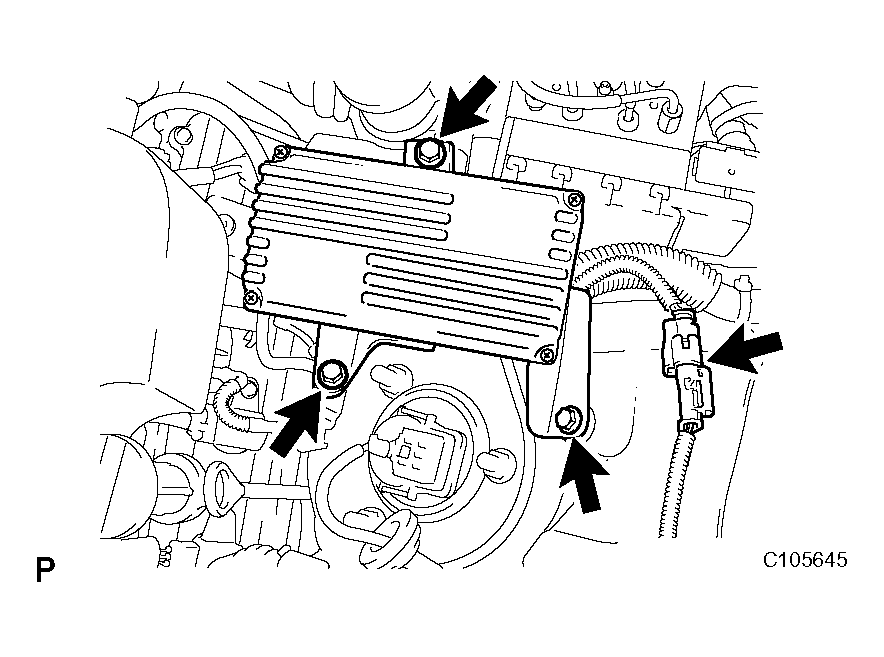

1. Disconnect the connector.
2. Remove the 3 bolts and skid control ECU assembly.

  Fig 1: Identifying Bolts And Skid Control ECU Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

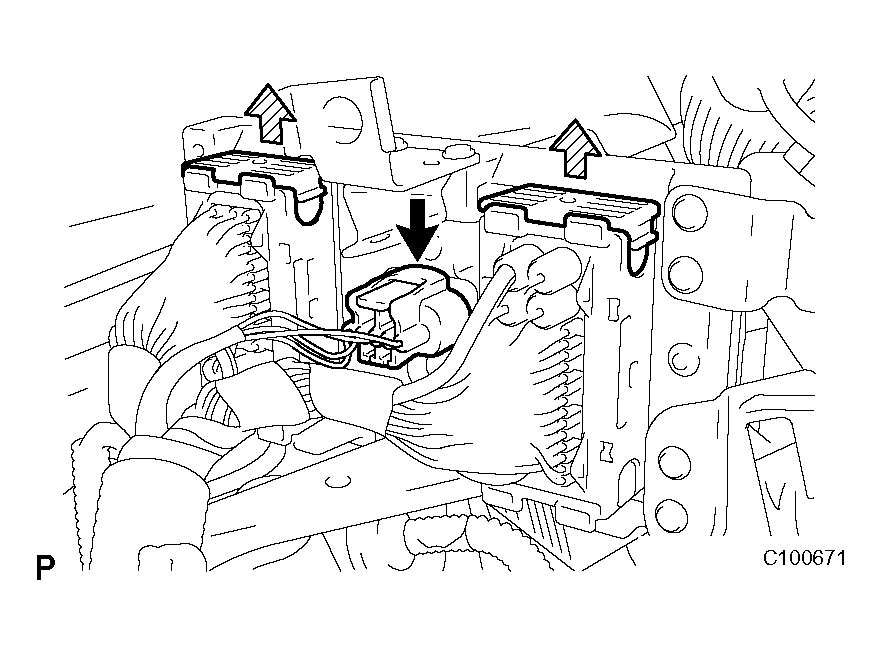

3. Pull the 2 lock levers upward to release the lock and disconnect the 3 connectors.

  Fig 2: Pulling 2 Lock Levers Upward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
