Headlining Trim Panel Replacement (H3T)

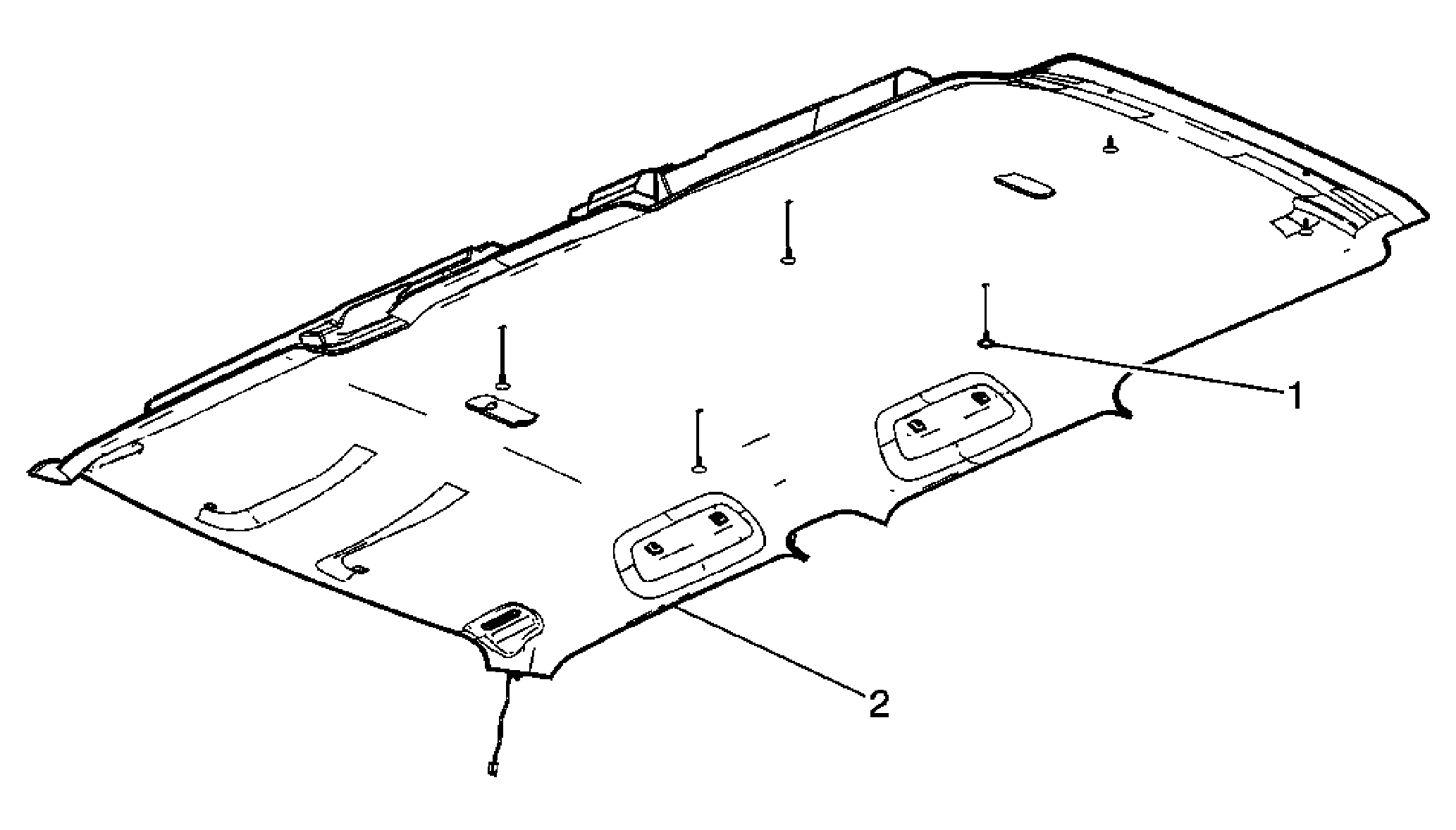

Fig 1: Headliner Replacement
GM1559092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
WARNING: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.
WARNING: Refer to SIR Warning .
CAUTION: Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.
CAUTION: If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Preliminary Procedures

  1. Disable/enable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the windshield garnish trim moldings. Refer to Windshield Pillar Garnish Molding Replacement .
  3. Remove the sunshades and the sunshade retaining clips. Refer to Sunshade Replacement .
  4. Remove the sunshade anchor. Refer to Sunshade Anchor Replacement .
  5. Remove the sunroof opening trim finish lace. Refer to Sunroof Opening Trim Finish Lace Replacement .
  6. Remove the lower center pillar trim. Refer to Center Pillar Lower Trim Panel Replacement .
  7. Remove the upper center pillar trim. Refer to Center Pillar Upper Trim Panel Replacement .
  8. Remove the upper body side trim panels. Refer to Body Side Upper Trim Panel Replacement (H3T) .
  9. Remove the cargo and dome lamps. Refer to Dome Lamp Replacement .
  10. Remove the assist handles. Refer to Roof Rail Rear Assist Handle Replacement .
  11. Remove the weather strips around the top of each door opening.
  12. Place the rear seats in the stowed position.
  13. Remove the front seat head rest.
  14. Remove the back window. Refer to Rear Window Replacement .
1 Headliner Trim Retainer
2 Headliner Trim Panel Assembly

Procedure

  1. Disconnect the electrical connectors from the headliner.
  2. Place the front seats fully forward with the seat backs fully reclined.
  3. With the aid of an assistant, remove the headliner from window.
