Sunshade Anchor Replacement

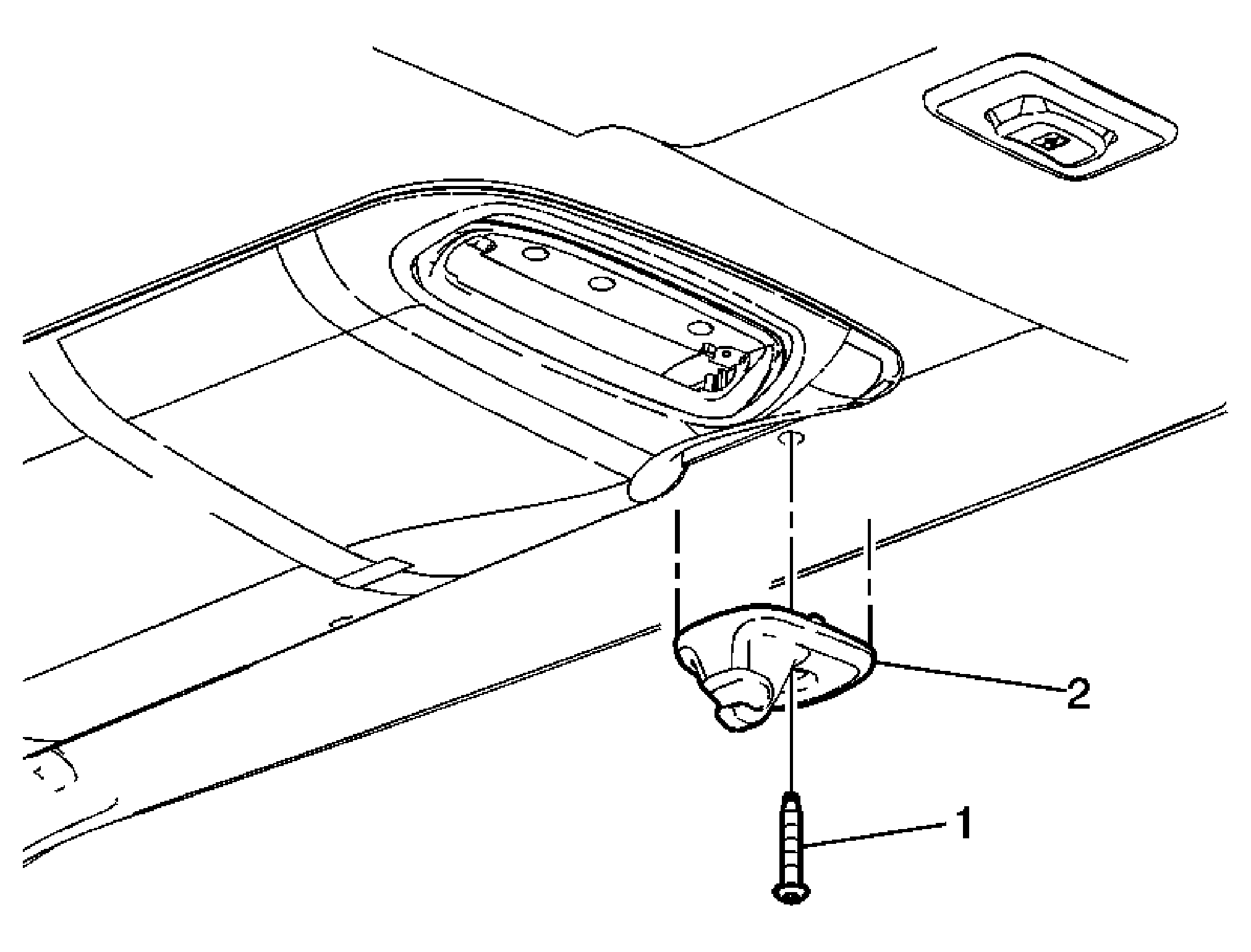

Fig 1: Sunshade Anchor Replacement
GM1557585Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sun Shade Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Sun Shade Assembly Support
