Body Side Upper Trim Panel Replacement (H3T)

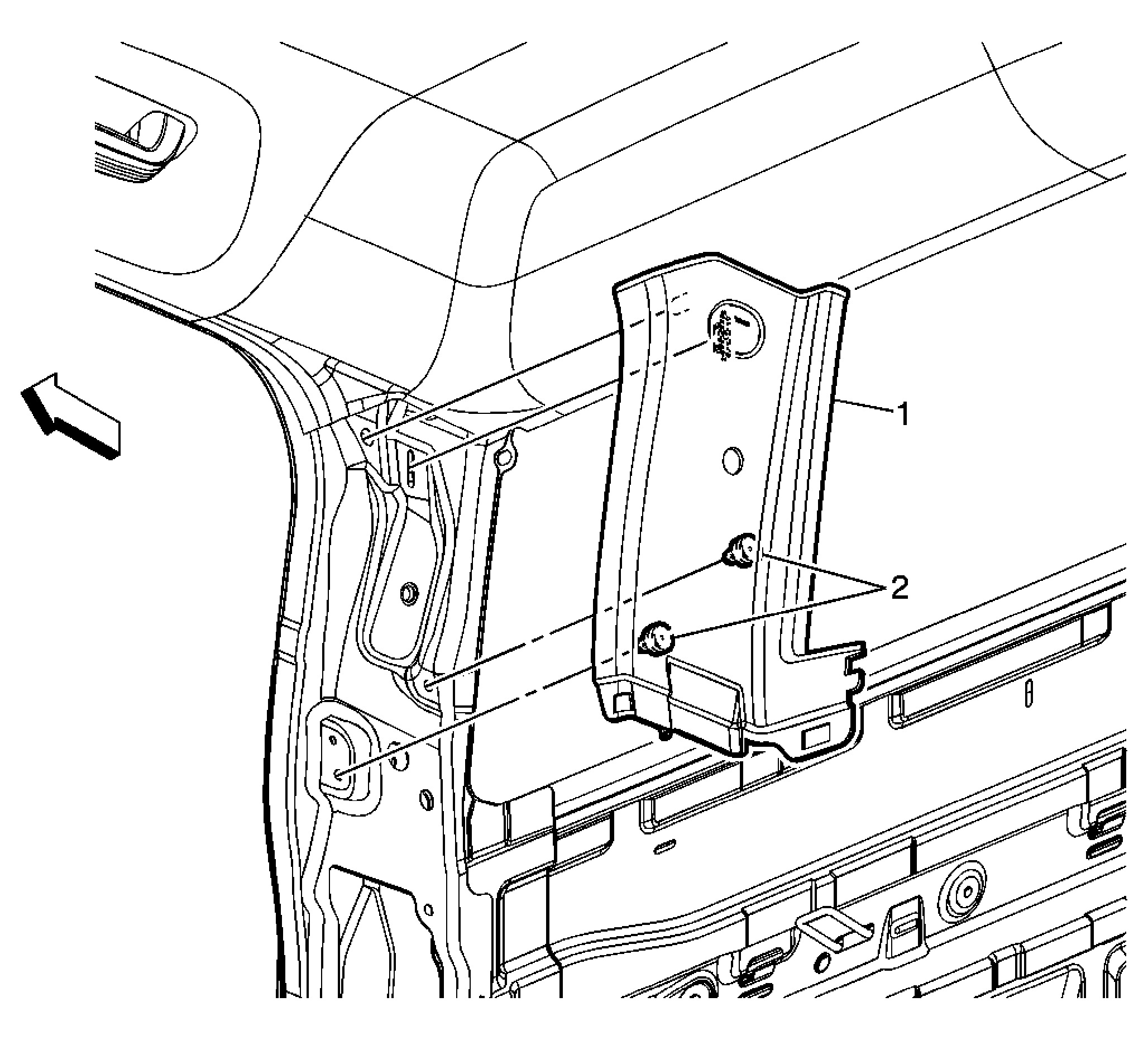

Fig 1: Body Side Upper Trim Panel Replacement (H3T)
GM2141935Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat belt anchor bolt. Refer to Rear Seat Belt Retractor Replacement .
  2. Remove the body side rear lower trim panel. Refer to Body Side Rear Lower Trim Panel Replacement (H3T) .
1 Body Side upper Trim Panel Assembly

Procedure

  1. Open access door and remove retaining screw.
  2. Grasp the molding and pull it outward disengaging the clips securing it to the body.
  3. Feed the seat belt through the opening in the trim panel.
  4. Lift the molding upward disengaging it from body side trim panel.
2 Retainer Clip
