Center Pillar Upper Trim Panel Replacement

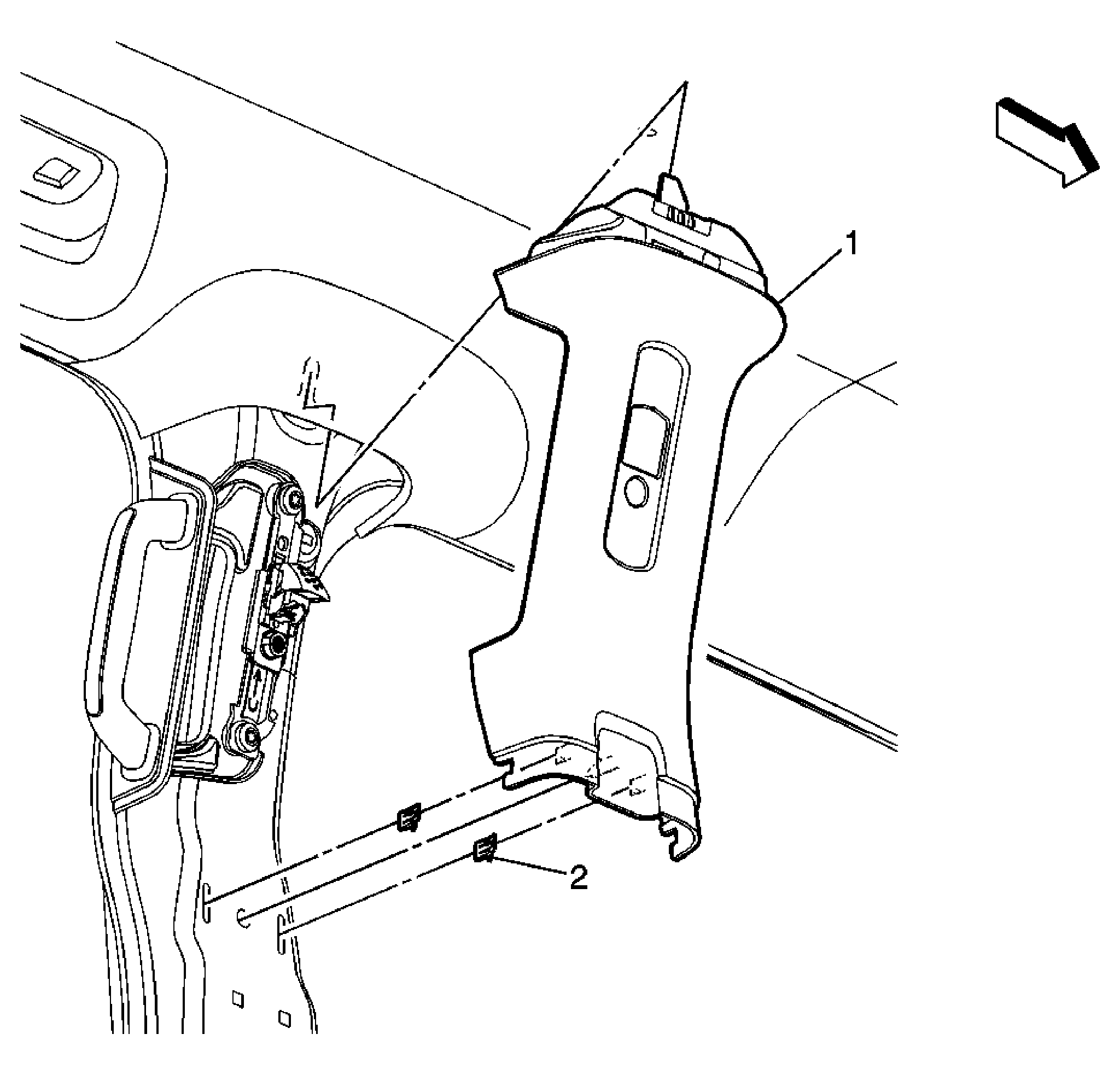

Fig 1: Trim Panel Replacement - Upper Center Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front seat belt upper guide bolt and guide only. Refer to Seat Belt Retractor Pretensioner Replacement - Front . Remove the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
1	Center Pillar Upper Trim Panel Assembly
2	Center Pillar Upper Trim Clip (Qty: 2) Tip: Ensure the tab on the top of the trim panel is secured.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the front seat belt upper guide bolt and guide only. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
Remove the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement .

Center Pillar Upper Trim Panel Assembly

Center Pillar Upper Trim Clip (Qty: 2)
Tip: Ensure the tab on the top of the trim panel is secured.
