Center Pillar Lower Trim Panel Replacement

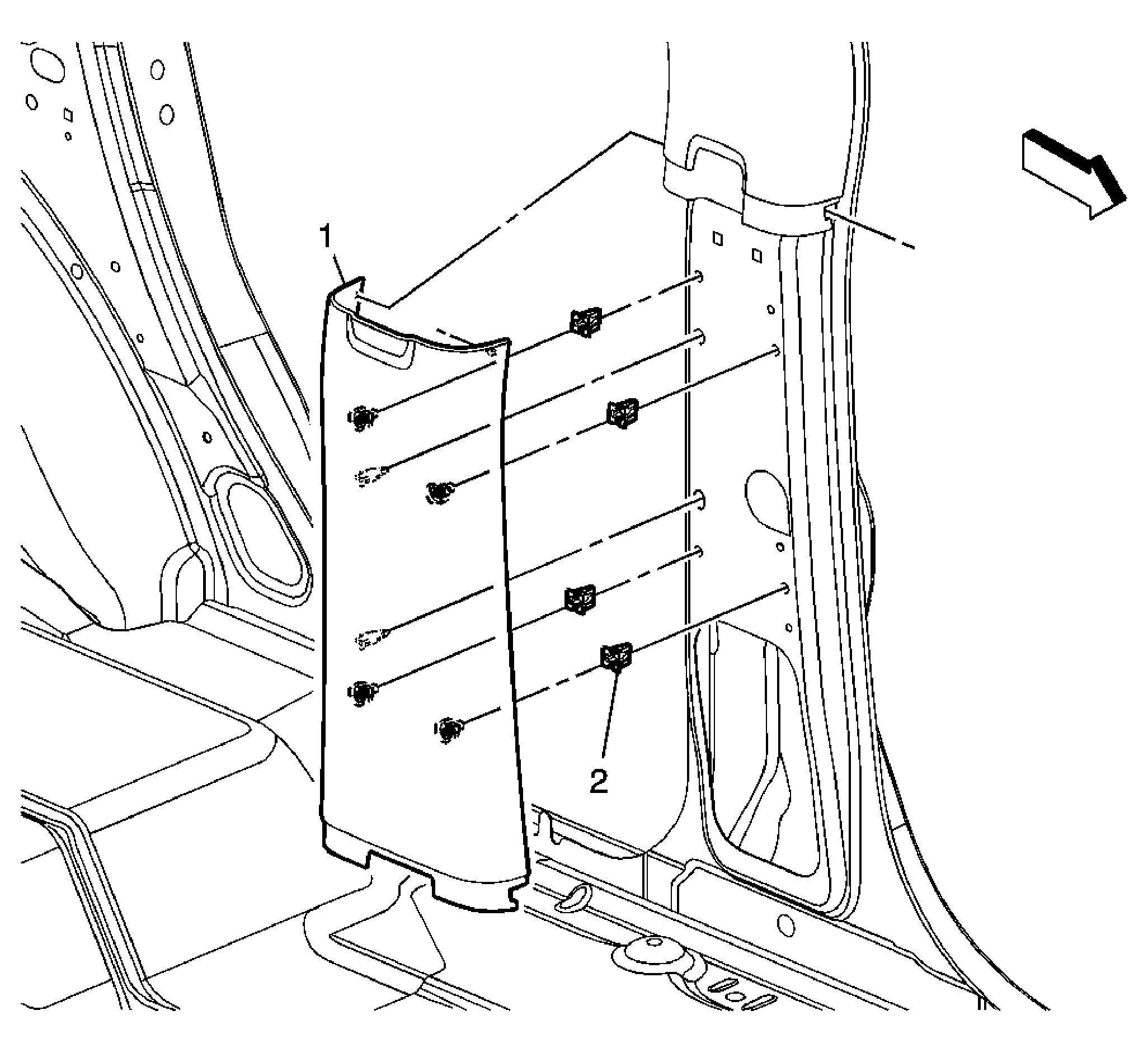

Fig 1: Trim Panel Replacement - Lower Center Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .
1	Trim Center Pillar Lower Panel Assembly
2	Center Pillar Lower Trim Panel Clip (Qty: 4)
