Roof Rail Rear Assist Handle Replacement

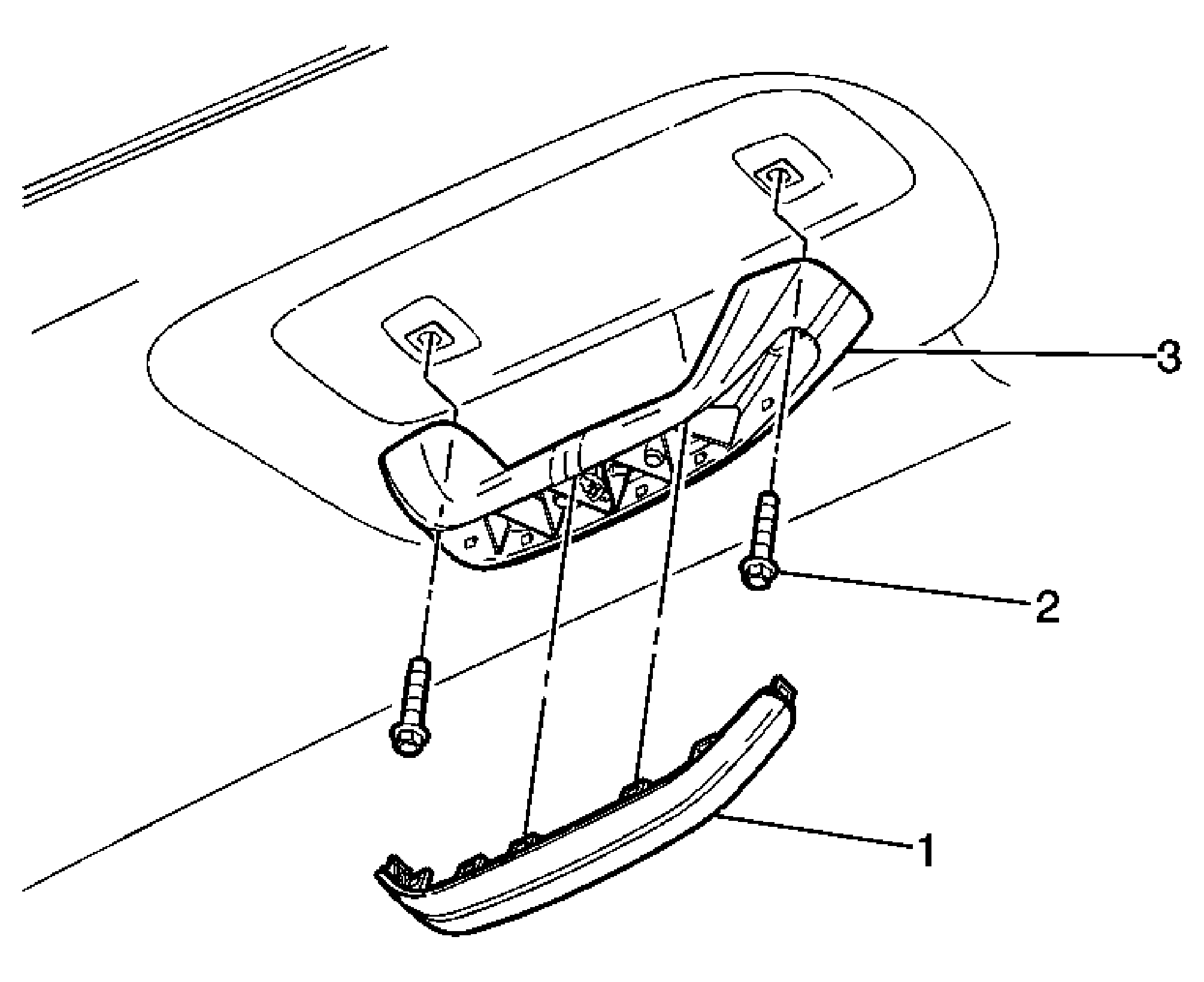

Fig 1: Assist Handle Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Assist Handle Filler
2	Assist Handle Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  9 N.m (80 lb in)
3	Assist Handle Assembly
