System Warning/Indicator Index

WARNING: This page is about a different variant/trim than selected.

Courtesy of HONDA, U.S.A., INC.

NOTE:

Check the diagnostic trouble code (DTC) with the HDS, then refer to the indicated DTC's troubleshooting.

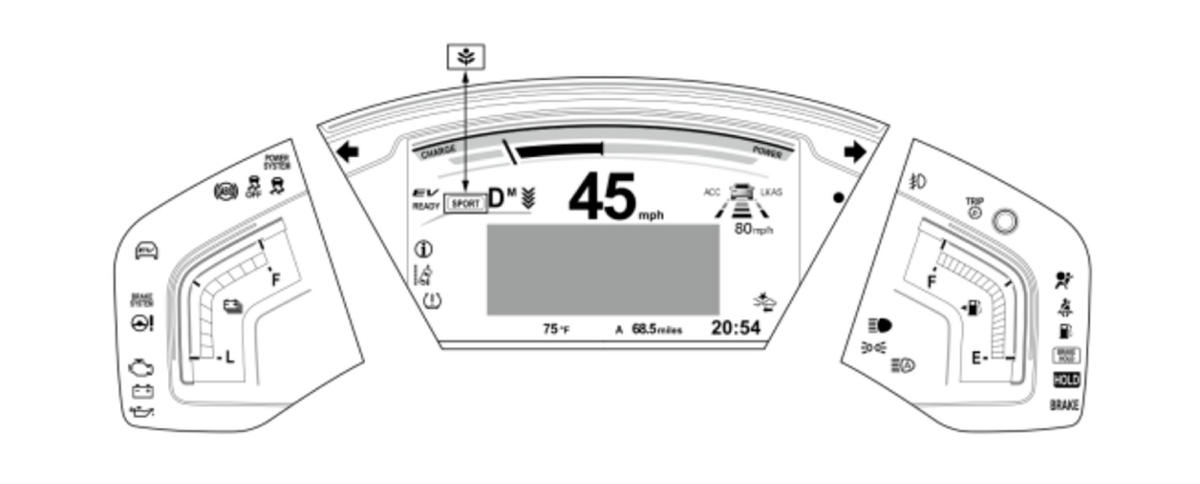

There are some indicators displayed on the multi-information display (MID).

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	12 VOLT CHARGING SYSTEM INDICATOR(Red)	PCM Battery condition monitor module Motor control module	PGM-FI DTCs/Freeze Data Electric Powertrain DTCs/Freeze Data	PGM-FI system general troubleshooting information PGM-FI system DTC troubleshooting index PGM-FI system symptom troubleshooting index Electric powertrain system general troubleshooting information Electric powertrain system DTC troubleshooting index Electric powertrain system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	LOW OIL PRESSURE INDICATOR (Red)	PCM	PGM-FI DTCs/Freeze Data	PGM-FI system general troubleshooting information PGM-FI system DTC troubleshooting index Engine lubrication system symptom troubleshooting index

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	BRAKE SYSTEM INDICATOR(Red)	VSA modulator-control unit Electric serbo brake control unit	ABS/TCS/VSA DTCs BRAKE SYSTEM ESB DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index Electric parking brake system general troubleshooting information Electric parking brake system symptom troubleshooting index Electric servo brake system general troubleshooting information Electric servo brake system DTC troubleshooting index
Courtesy of HONDA, U.S.A., INC.	MALFUNCTION INDICATOR LAMP (MIL) (Amber)	PCM	PGM-FI DTCs/Freeze Data	PGM-FI system general troubleshooting information PGM-FI system DTC troubleshooting index PGM-FI system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	ABS INDICATOR (Amber)	VSA modulator-control unit	ABS/TCS/VSA DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	SRS INDICATOR (Red)	SRS Unit	SRS SRS/SWS DTCs	SRS general troubleshooting information SRS DTC troubleshooting index SRS symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	KEYLESS ACCESS INDICATOR	Body control module	ONE-PUSH START PCU DTCs ONE-PUSH START Backup Control Unit DTCs ONE-PUSH START KEYLESS ACCESS CONTROL Unit DTCs	Body electrical general troubleshooting information Keyless access system DTC troubleshooting index Keyless access system symptom troubleshooting information Keyless access system symptom troubleshooting index

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	LOW TIRE PRESSURE/TPMS INDICATOR (Amber)	VSA modulator-control unit	ABS/TCS/VSA DTCs	TPMS general troubleshooting information TPMS DTC troubleshooting index TPMS symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	EPS INDICATOR (Amber)	EPS control unit	EPS DTCs/Freeze Data	EPS system general troubleshooting information EPS system DTC troubleshooting index EPS system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	POWER TAILGATE INDICATOR	Power tailgate control unit	BODY ELECTRICAL Power tailgate DTCs	Body electrical general troubleshooting information Power tailgate system DTC troubleshooting index
Courtesy of HONDA, U.S.A., INC.	LIGHT CONTROL INDICATOR	Body control module	BODY ELECTRICAL Lighting DTCs	Body electrical general troubleshooting information Body control module DTC troubleshooting index
Courtesy of HONDA, U.S.A., INC.	ACC INDICATOR	Multipurpose camera unit Millimeter wave radar	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index ACC system general troubleshooting information ACC system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	LKAS INDICATOR	Multipurpose camera unit Millimeter wave radar	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index LKAS general troubleshooting information LKAS symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	CMBS INDICATOR	Multipurpose camera unit Millimeter wave radar	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index CMBS general troubleshooting information CMBS symptom troubleshooting index

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	AWD SYSTEM INDICATOR	Real time AWD control unit	SH-AWD DTC/Freeze Data	AWD system general troubleshooting information AWD system DTC troubleshooting index AWD system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	BRAKE SYSTEM INDICATOR (Amber)	VSA modulator-control unit PCM Electric serbo brake control unit Millimeter wave radar Multipurpose camera unit	ABS/TCS/VSA DTCs PGM-FI DTCs/Freeze Data BRAKE SYSTEM ESB DTCs DRIVING SUPPORT Integrated Driver Support System DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index Brake system symptom troubleshooting index PGM-FI system general troubleshooting information PGM-FI system DTC troubleshooting index PGM-FI system symptom troubleshooting index Electric parking brake system general troubleshooting information Electric parking brake system symptom troubleshooting index Electric servo brake system general troubleshooting information Electric servo brake system DTC troubleshooting index
Courtesy of HONDA, U.S.A., INC.	POWER SYSTEM INDICATOR (Amber)	Battery condition monitor module Motor control module	Electric Powertrain DTCs/Freeze Data	Electric powertrain system general troubleshooting information Electric powertrain system DTC troubleshooting index Electric powertrain system symptom troubleshooting index

Indicator

Indicator Name

Fault Detection Unit

HDS System Menu (DTC Check)

Diagnostic Procedure

Courtesy of HONDA, U.S.A., INC.

AWD SYSTEM INDICATOR

Real time AWD control unit

SH-AWD

DTC/Freeze Data

Courtesy of HONDA, U.S.A., INC.

BRAKE SYSTEM INDICATOR (Amber)

VSA modulator-control unit
PCM
Electric serbo brake control unit
Millimeter wave radar
Multipurpose camera unit

ABS/TCS/VSA

DTCs

PGM-FI DTCs/Freeze Data

BRAKE SYSTEM ESB DTCs

DRIVING SUPPORT Integrated Driver Support System DTCs

Courtesy of HONDA, U.S.A., INC.

POWER SYSTEM INDICATOR (Amber)

Battery condition monitor module
Motor control module

Electric Powertrain

DTCs/Freeze Data

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	SECURITY INDICATOR (Red)	Body control module	ONE-PUSH START Backup Control Unit System Information System Check ONE-PUSH START Backup Control Unit System Information Status Log ONE-PUSH START KEYLESS ACCESS CONTROL Unit KEYLESS ACCESS System Information System Check 1 ONE-PUSH START KEYLESS ACCESS CONTROL Unit KEYLESS ACCESS System Information System Check 2	Body electrical general troubleshooting information Keyless access system symptom troubleshooting information Keyless access system system check Keyless access system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	PARKING and BACK-UP SENSOR INDICATOR	Parking and back-up sensor control unit	BODY ELECTRICAL Parking Sensor DTCs	Body electrical general troubleshooting information Parking and back-up sensor system DTC troubleshooting index
Courtesy of HONDA, U.S.A., INC.	VSA INDICATOR (Amber)	VSA modulator-control unit	ABS/TCS/VSA DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	VSA OFF INDICATOR (Amber)	VSA modulator-control unit	ABS/TCS/VSA DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	STARTER SYSTEM INDICATOR	PCM Battery condition monitor module Motor control module	PGM-FI DTCs/Freeze Data Electric Powertrain DTCs/Freeze Data	PGM-FI system general troubleshooting information PGM-FI system DTC troubleshooting index PGM-FI system symptom troubleshooting index Electric powertrain system general troubleshooting information Electric powertrain system DTC troubleshooting index Electric powertrain system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	AUTO HIGH-BEAM INDICATOR	Multipurpose camera unit Millimeter wave radar	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index Auto high-beam (High-beam support system) general troubleshooting information
Courtesy of HONDA, U.S.A., INC.	RDM INDICATOR	Multipurpose camera unit Millimeter wave radar	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index RDM system general troubleshooting information RDM system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	BSI INDICATOR	Left side BSI radar unit Right side BSI radar unit	DRIVING SUPPORT Blind Spot Information/Cross Traffic Monitor DTCs	Driving support system DTC troubleshooting index BSI general troubleshooting information BSI DTC troubleshooting index BSI symptom troubleshooting index CTM general troubleshooting information
Courtesy of HONDA, U.S.A., INC.	SHIFT POSITION INDICATOR	PCM	AT DTCs/Freeze Data	Gear unit control system general troubleshooting information Gear unit control system DTC troubleshooting index Gear unit control system symptom troubleshooting index
