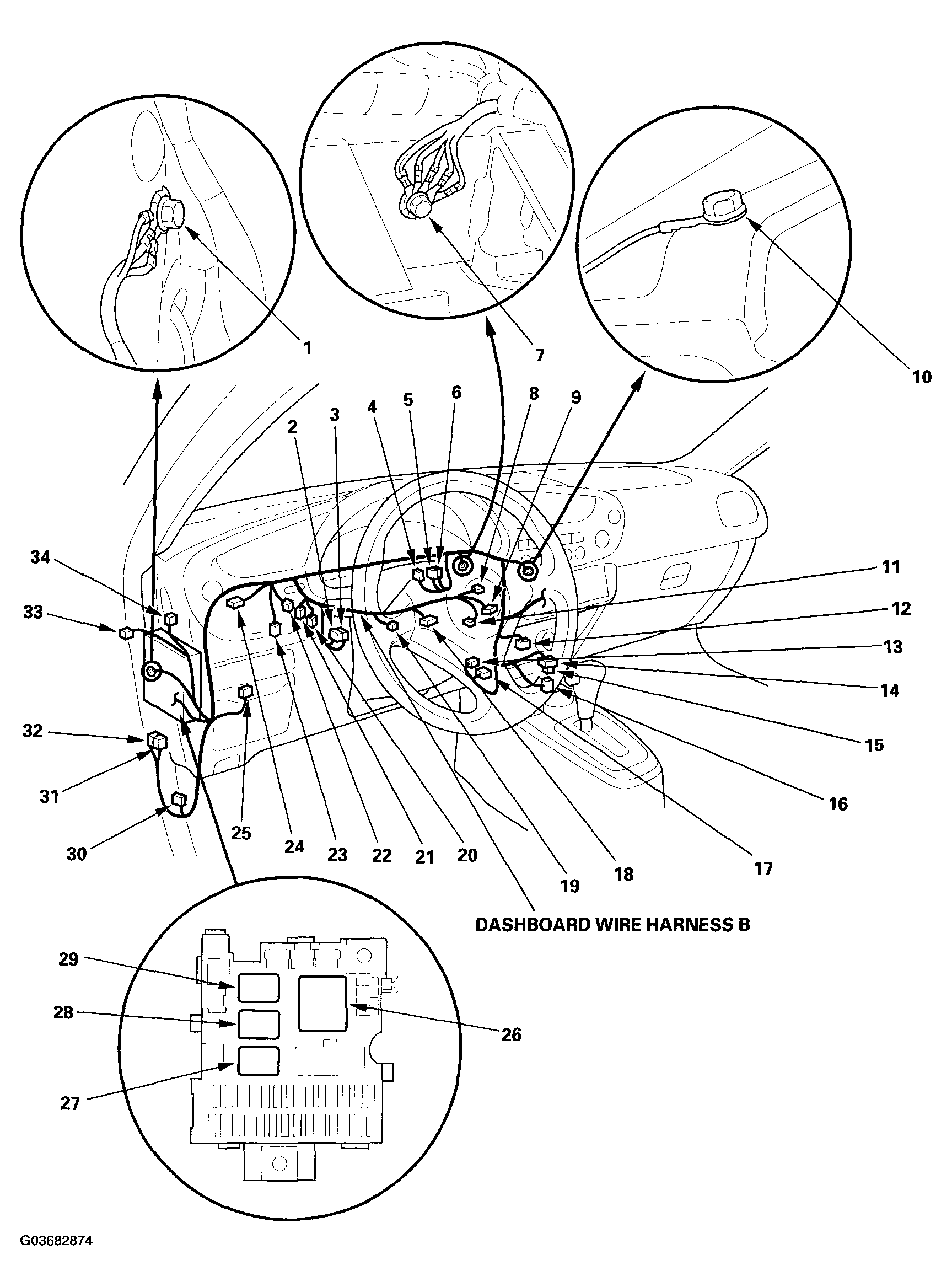

| Air/fuel ratio sensor relay |
34 |
4 |
Under left side of dash |
|
|
| Brake pedal position switch |
20 |
2 |
Under left side of dash |
|
|
| Cable reel |
11 |
4 |
In the steering column cover |
|
|
| Clutch pedal position switch |
23 |
2 |
Under left side of dash |
|
M/T |
| Combination light switch |
18 |
16 |
In the steering column cover |
|
|
| Data link connector (DLC) |
16 |
16 |
Behind center lower cover |
|
|
| Data link connector (DLC) |
12 |
16 |
Under driver's side of dashboard |
|
|
| Daytime running lights control unit |
30 |
14 |
Under left side of dash |
|
Canada |
| Daytime running lights relay |
32 |
4 |
Under left side of dash |
|
Canada |
| Idle stop switch |
21 |
2 |
Under left side of dash |
|
CTV |
| Ignition key switch |
19 |
2 |
In the steering column cover |
|
M/T |
| Ignition key switch |
19 |
5 |
In the steering column cover |
|
CTV |
| Immobilizer receiver unit |
8 |
5 |
In the steering column cover |
|
|
| Low beam cut relay |
31 |
5 |
Under left side of dash |
|
Canada |
| Keyless door lock control unit |
25 |
18 |
Under left side of dash |
|
|
| Power window relay |
27 |
4 |
Under-dash fuse/relay box |
|
|
| Starter cut relay |
28 |
4 |
Under-dash fuse/relay box |
|
|
| Taillight relay |
29 |
4 |
Under-dash fuse/relay box |
|
|
| Turn signal/hazard relay |
26 |
3 |
Under-dash fuse/relay box |
|
|
| Wiper/washer switch |
9 |
14 |
In the steering column cover |
|
|
| C102 |
17 |
16 |
Under middle of dash |
Engine wire harness
|
|
| C106 |
13 |
6 |
Under middle of dash |
Engine wire harness (see
ENGINE WIRE HARNESS (CVT)
) |
CTV |
| C401 |
22 |
3 |
Under left side of dash |
Engine compartment wire harness (see
ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
) |
|
| C402 |
5 |
14 |
Under left side of dash |
Engine compartment wire harness (see
ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
) |
|
| C402 |
5 |
18 |
Under left side of dash |
Engine compartment wire harness (see
ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
) |
|
| C403 |
6 |
16 |
Under left side of dash |
Engine compartment wire harness (see
ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
) |
|
| C404 |
2 |
24 |
Under left side of dash |
Dashboard wire harness A (see
DASHBOARD WIRE HARNESS A
) |
|
| C405 |
3 |
14 |
Under left side of dash |
Dashboard wire harness A (see
DASHBOARD WIRE HARNESS A
) |
|
| C406 |
24 |
4 |
Under left side of dash |
Roof wire harness (see
ROOF WIRE HARNESS
) |
|
| C407 |
33 |
16 |
Under left side of dash |
DC-DC converter-driver's door wire harness (see
DC-DC CONVERTER-DRIVER'S DOOR WIRE HARNESS
) |
|
| C452 |
4 |
16 |
Under left side of dash |
Wiper subharness (see
WIPER SUBHAMESS
) |
|
| C502 |
14 |
24 |
Behind center lower cover |
Floor wire harness (see
FLOOR WIRE HARNESS
) |
|
| C503 |
15 |
2 |
Behind center lower cover |
Floor wire harness (see
FLOOR WIRE HARNESS
) |
|
| C401 |
1 |
|
Under left side of dash |
Body ground via dashboard wire harness B |
|
| C402 |
7 |
|
Behind gauge assembly |
Body ground via dashboard wire harness B |
|
| C403 |
10 |
|
Behind climate control unit or heater control panel |
Body ground via dashboard wire harness B |
|
