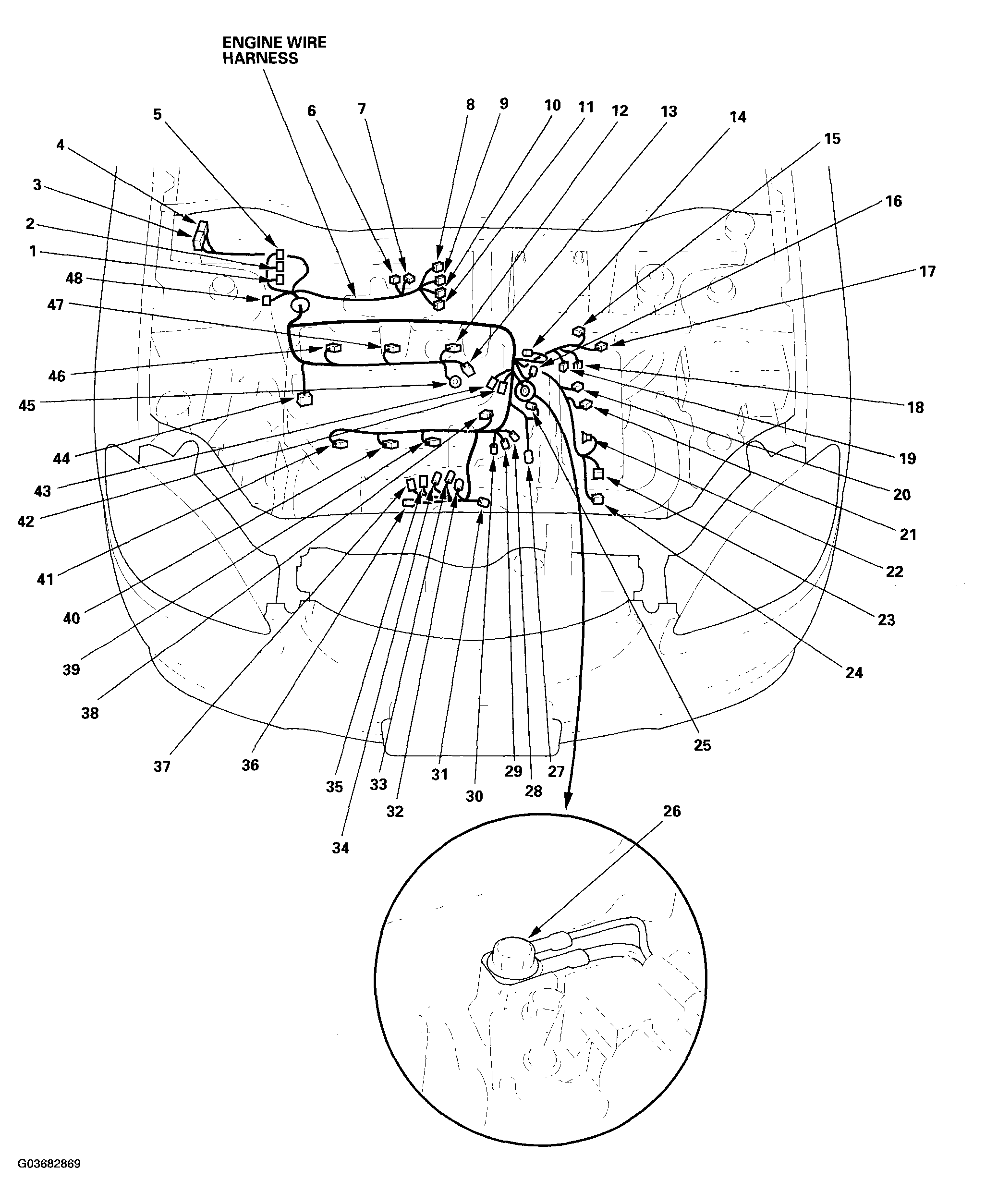

| Air/fuel ratio sensor |
13 |
4 |
Left side of engine compartment |
|
|
| CKP sensor |
44 |
2 |
Right side of engine |
|
|
| CMP (TDC) sensor A |
14 |
2 |
Middle of engine |
|
|
| CMP (TDC) sensor B |
29 |
2 |
Middle of engine |
|
|
| CVT driven pulley speed sensor |
24 |
3 |
Transmission housing |
|
|
| CVT driven pulley speed sensor |
21 |
3 |
Transmission housing |
|
|
| CVT speed sensor |
20 |
3 |
Transmission housing |
|
|
| ECM connector B |
1 |
25 |
Right front of floor |
|
|
| ECM connector C |
2 |
31 |
Right front of floor |
|
|
| ECM connector D |
5 |
16 |
Right front of floor |
|
|
| Engine coolant temperature (ECT) Sensor |
25 |
2 |
Middle of engine |
|
|
| Engine oil pressure switch |
33 |
1 |
Front of engine |
|
|
| EVAP canister purge valve |
28 |
2 |
Middle of engine |
|
|
| Engine coolant temperature (ECT) sensor |
38 |
6 |
Middle of engine |
|
|
| Engine oil pressure switch |
41 |
2 |
Middle of engine |
|
|
| EVAP canister purge valve |
40 |
2 |
Middle of engine |
|
|
| Exhaust gas recirculation (EGR) valve |
39 |
2 |
Middle of engine |
|
|
| Idle air control (IAC) valve |
32 |
3 |
Front of engine |
|
|
| Ignition coil No. 1 |
46 |
3 |
Middle of engine |
|
|
| Ignition coil No. 2 |
47 |
3 |
Middle of engine |
|
|
| Ignition coil No. 3 |
12 |
3 |
Middle of engine |
|
|
| Intake air temperature (IAT) sensor |
27 |
2 |
Middle of engine |
|
|
| Knock sensor |
34 |
1 |
Front of engine |
|
|
| MAP sensor |
30 |
3 |
Front of engine |
|
|
| Motor commutation sensor |
15 |
10 |
Left side of engine compartment |
|
|
| Radiator fan switch |
36 |
2 |
Front of engine |
|
|
| Rocker arm oil pressure switch (VTEC oil pressure switch) |
35 |
2 |
Front of engine |
|
|
| Rocker arm oil control solenoid (VTEC solenoid valve) |
37 |
1 |
Front of engine |
|
|
| Secondary HO2S |
19 |
4 |
Left side of engine compartment |
|
|
| Starter solenoid |
22 |
1 |
Middle of engine |
|
|
| Throttle position (TP) sensor |
31 |
3 |
Front of engine |
|
|
| Transmission control module (TCM) connector A |
3 |
26 |
Right kick panel |
|
|
| Transmission control module (TCM) connector B |
4 |
22 |
Right kick panel |
|
|
| Transmission range switch |
17 |
6 |
Transmission housing |
|
|
| Vehicle speed sensor (VSS) |
18 |
3 |
Transmission housing |
|
|
| C101 |
8 |
8 |
Under middle of dash |
Engine compartment wire harness (see
ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
) |
|
| C102 |
9 |
16 |
Under middle of dash |
Dashboard wire harness B (see
DASHBOARD WIRE HARNESS B (LEFT BRANCH)
) |
|
| C103 |
11 |
24 |
Under middle of dash |
Floor wire harness (see
FLOOR WIRE HARNESS
) |
|
| C104 (Junction connector) |
16 |
14 |
Middle of engine |
|
|
| C105 (Junction connector) |
48 |
22 |
Right side of floor |
|
|
| C106 |
10 |
6 |
Under Middle of dash |
Dashboard wire harness B (see
DASHBOARD WIRE HARNESS B (LEFT BRANCH)
) |
|
| C107 (Junction connector) |
6 |
22 |
Under middle of dash |
|
|
| C108 (Junction connector) |
7 |
22 |
Under middle of dash |
|
|
| C109 |
23 |
8 |
Transmission housing |
CVT solenoid wire harness (see
CVT SOLENOID WIRE HARNESS (CVT)
) |
|
| T6 (Terminal joint) |
42 |
|
Middle of engine |
|
|
| T7 (Terminal joint) |
43 |
|
Middle of engine |
|
|
| G101 |
26 |
|
Middle of engine |
Body ground via engine via Harness |
|
| G102 |
45 |
|
Middle of engine |
Body ground via engine via Harness |
|
