Engine Wire Harness (M/T)

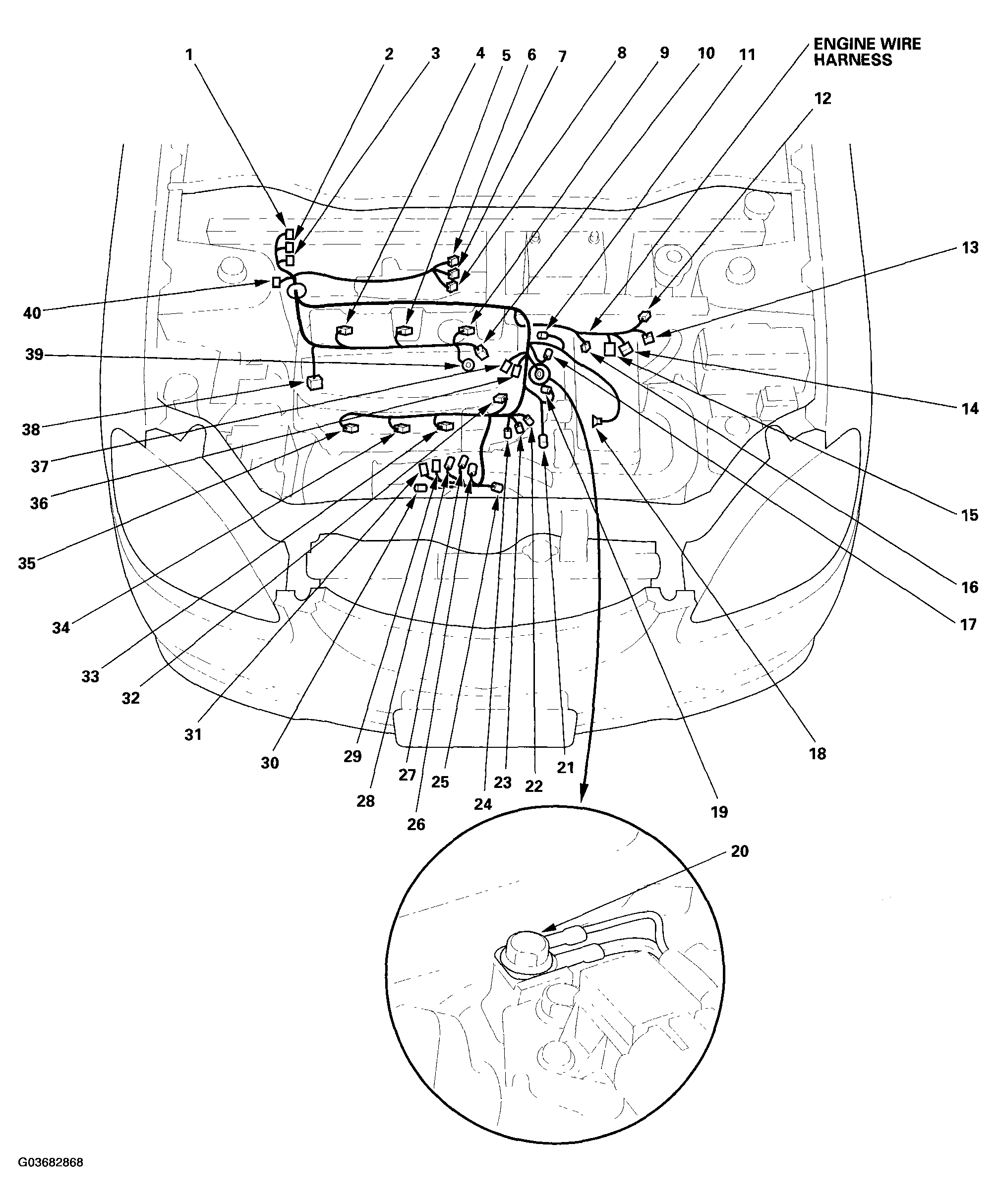

CONNECTOR TO HARNESS INDEX (ENGINE WIRE HARNESS (M/T))
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Air/fuel ratio sensor |
10 |
8 |
Left side of engine compartment |
|
|
| Air/fuel ratio sensor |
10 |
4 |
Left side of engine compartment |
|
|
| Back-up light switch |
16 |
2 |
Transmission housing |
|
|
| CKP sensor |
38 |
2 |
Right side of engine |
|
|
| CMP (TDC) sensor A |
11 |
2 |
Middle of engine |
|
|
| CMP (TDC) sensor B |
23 |
2 |
Middle of engine |
|
|
| ECM connector B |
3 |
25 |
Right side of floor |
|
|
| ECM connector C |
2 |
31 |
Right side of floor |
|
|
| ECM connector D |
1 |
16 |
Right side of floor |
|
|
| EGR valve position sensor and solenoid valve |
32 |
6 |
Middle of engine |
|
|
| Engine coolant temperature (ECT) Sensor |
19 |
2 |
Middle of engine |
|
|
| Engine oil pressure switch |
27 |
1 |
Front of engine |
|
|
| EVAP canister purge valve |
22 |
2 |
Middle of engine |
|
|
| Injector No. 1 |
35 |
2 |
Middle of engine |
|
|
| Injector No. 2 |
34 |
2 |
Middle of engine |
|
|
| Injector No. 3 |
33 |
2 |
Middle of engine |
|
|
| Idle air control (IAC) valve |
26 |
3 |
Front of engine |
|
|
| Ignition coil No. 1 |
4 |
3 |
Middle of engine |
|
|
| Ignition coil No. 2 |
5 |
3 |
Middle of engine |
|
|
| Ignition coil No. 3 |
9 |
3 |
Middle of engine |
|
|
| Intake air temperature (IAT) sensor |
21 |
2 |
Middle of engine |
|
|
| Knock sensor |
28 |
1 |
Front of engine |
|
|
| MAP sensor |
24 |
3 |
Middle of engine |
|
|
| Motor commutation sensor |
15 |
10 |
Left side of engine compartment |
|
|
| Neutral position switch |
12 |
2 |
Left side of engine compartment |
|
|
| Radiator fan switch |
30 |
2 |
Front of engine |
|
|
| Rocker arm oil pressure switch (VTEC oil pressure switch) |
29 |
2 |
Front of engine |
|
|
| Rocker arm oil control solenoid (VTEC solenoid valve) |
31 |
1 |
Front of engine |
|
|
| Secondary heated oxygen sensor (Secondary HO2S) |
13 |
4 |
Left side of engine compartment |
|
|
| Starter solenoid |
18 |
1 |
Middle of engine |
|
|
| Throttle position (TP) sensor |
25 |
3 |
Front of engine |
|
|
| Vehicle speed sensor (VSS) |
14 |
3 |
Transmission housing |
|
|
| C101 |
6 |
4 |
Under middle of dash |
Engine compartment wire harness (see
ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
) |
|
| C101 |
6 |
6 |
Under middle of dash |
Engine compartment wire harness (see
ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
) |
|
| C102 |
7 |
16 |
Under middle of dash |
Dashboard wire harness B (see
DASHBOARD WIRE HARNESS B (LEFT BRANCH)
) |
|
| C103 |
8 |
24 |
Under middle of dash |
Floor wire harness (see
FLOOR WIRE HARNESS
) |
|
| C104 (Junction connector) |
17 |
14 |
Middle of engine |
|
|
| C105 (Junction connector) |
40 |
22 |
Right side of floor |
|
|
| T6 (Terminal joint) |
36 |
|
Middle of engine |
|
|
| T7 (Terminal joint) |
37 |
|
Middle of engine |
|
|
| G101 |
20 |
|
Middle of engine |
Body ground via engine wire Harness |
|
| G102 |
39 |
|
Middle of engine |
Body ground via engine via Harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
