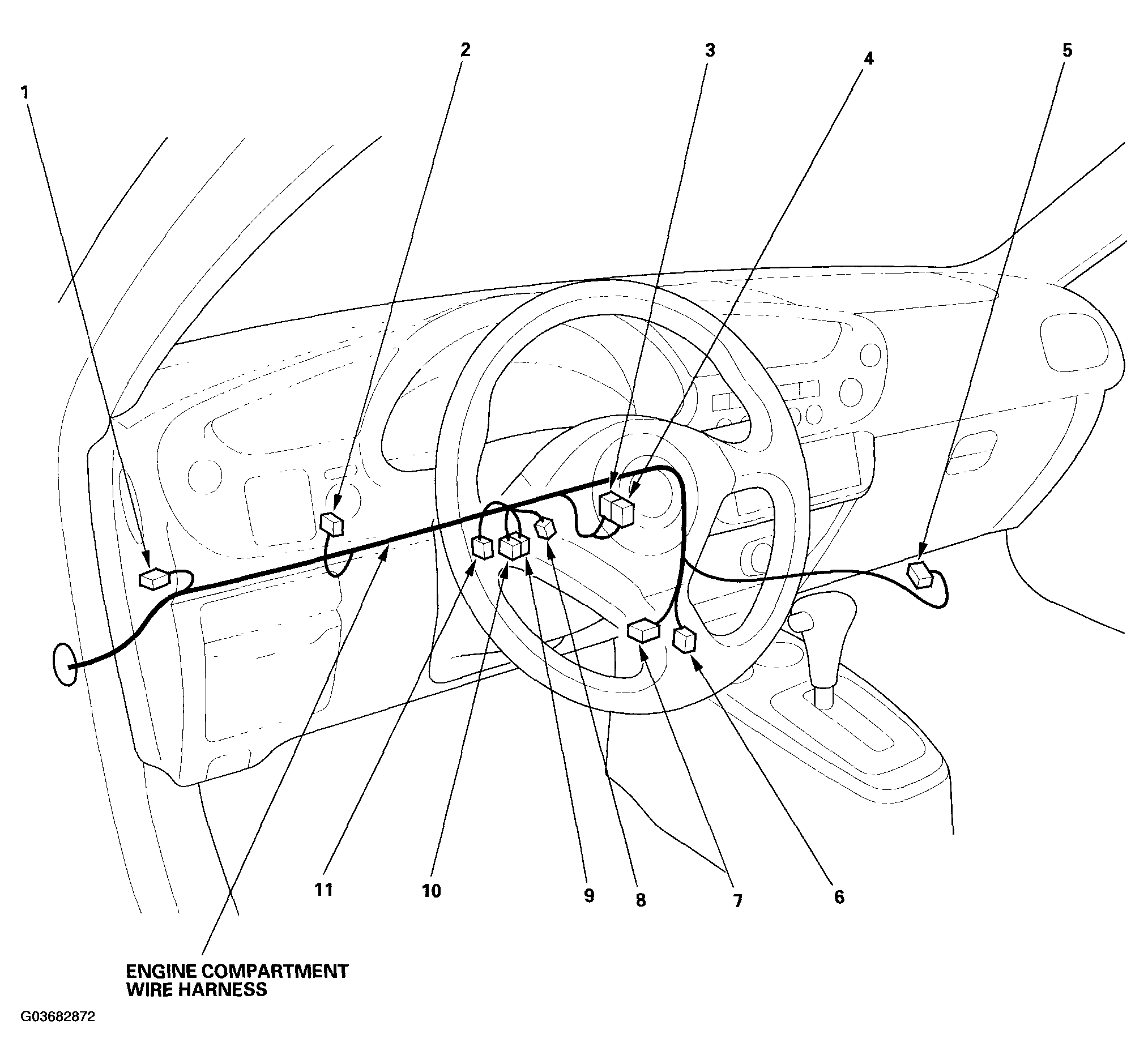

Engine Compartment Wire Harness (dashboard)
CONNECTOR TO HARNESS INDEX (ENGINE COMPARTMENT HARNESS (DASHBOARD))
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A/C diode | 1 | 3 | Under left side of dash | ||||||||||
| ECM connector A | 5 | 32 | Right front of floor | ||||||||||
| PGM-FI main relay (IGP) | 4 | 4 | Under left side of dash | ||||||||||
| Reverse relay | 3 | 4 | Under left side of dash | CVT | |||||||||
| C101 | 6 | 4 | Under middle of dash | Engine wire harness (see ENGINE WIRE HARNESS (M/T) ) | M/T(1) | ||||||||
| C101 | 6 | 6 | Under middle of dash | Engine wire harness (see ENGINE WIRE HARNESS (M/T) ) | M/T(2) | ||||||||
| C101 | 6 | 8 | Under middle of dash | Engine wire harness (see ENGINE WIRE HARNESS (M/T) ) | CTV | ||||||||
| C401 | 2 | 3 | Under left side of dash | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (LEFT BRANCH) ) | |||||||||
| C402 | 9 | 14 | Under left side of dash | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (LEFT BRANCH) ) | (3) | ||||||||
| C402 | 9 | 18 | Under left side of dash | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (LEFT BRANCH) ) | (4) | ||||||||
| C403 | 10 | 16 | Under left side of dash | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (LEFT BRANCH) ) | |||||||||
| C451 | 11 | 1 | Under left side of dash | Wiper subharness (see WIPER SUBHAMESS ) | |||||||||
| C501 | 7 | 16 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS ) | |||||||||
| C531 | 8 | 16 | Under left side of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A ) | |||||||||
|
|||||||||||||
