Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission to the engine. Refer to Transmission Replacement (All Wheel Drive with Diesel Engine, Equinox)Transmission Replacement (Front Wheel Drive with Diesel Engine)Transmission Replacement (All Wheel Drive with Diesel Engine, Terrain)
  2. Position the powertrain and support table under the vehicle.
  3. NOTE:

    A second technician is required.

  4. Slowly and carefully lower the vehicle, ensure the powertrain assembly is free from wiring, hoses and other engine compartment components.

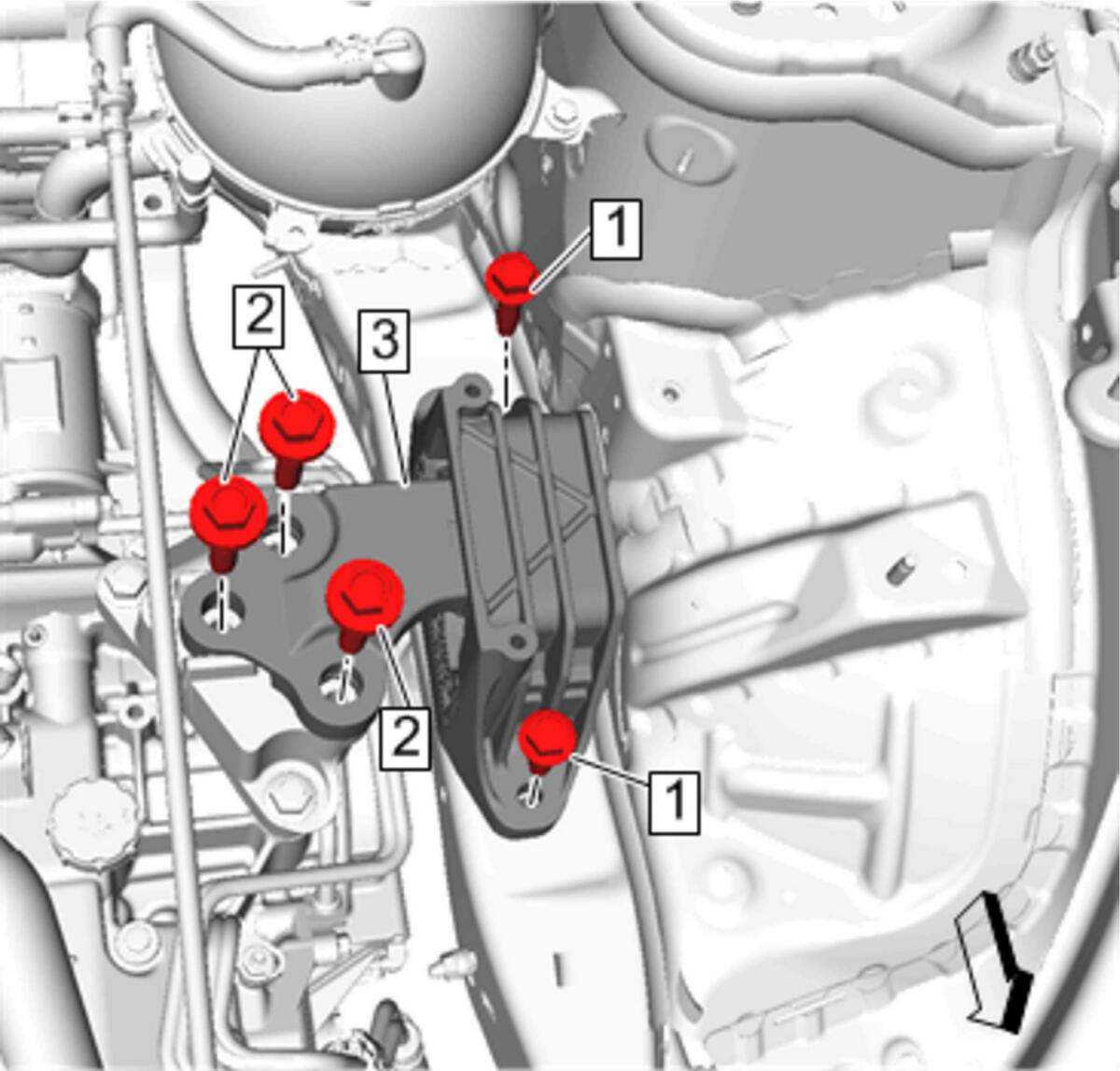

  5. Fig 1: Transmission Mount And Bolts
    GM4572700Courtesy of GENERAL MOTORS COMPANY
  6. Install Transmission Mount Bolts (2) (Qty: 3). Refer to Transmission Mount Replacement - Left Side

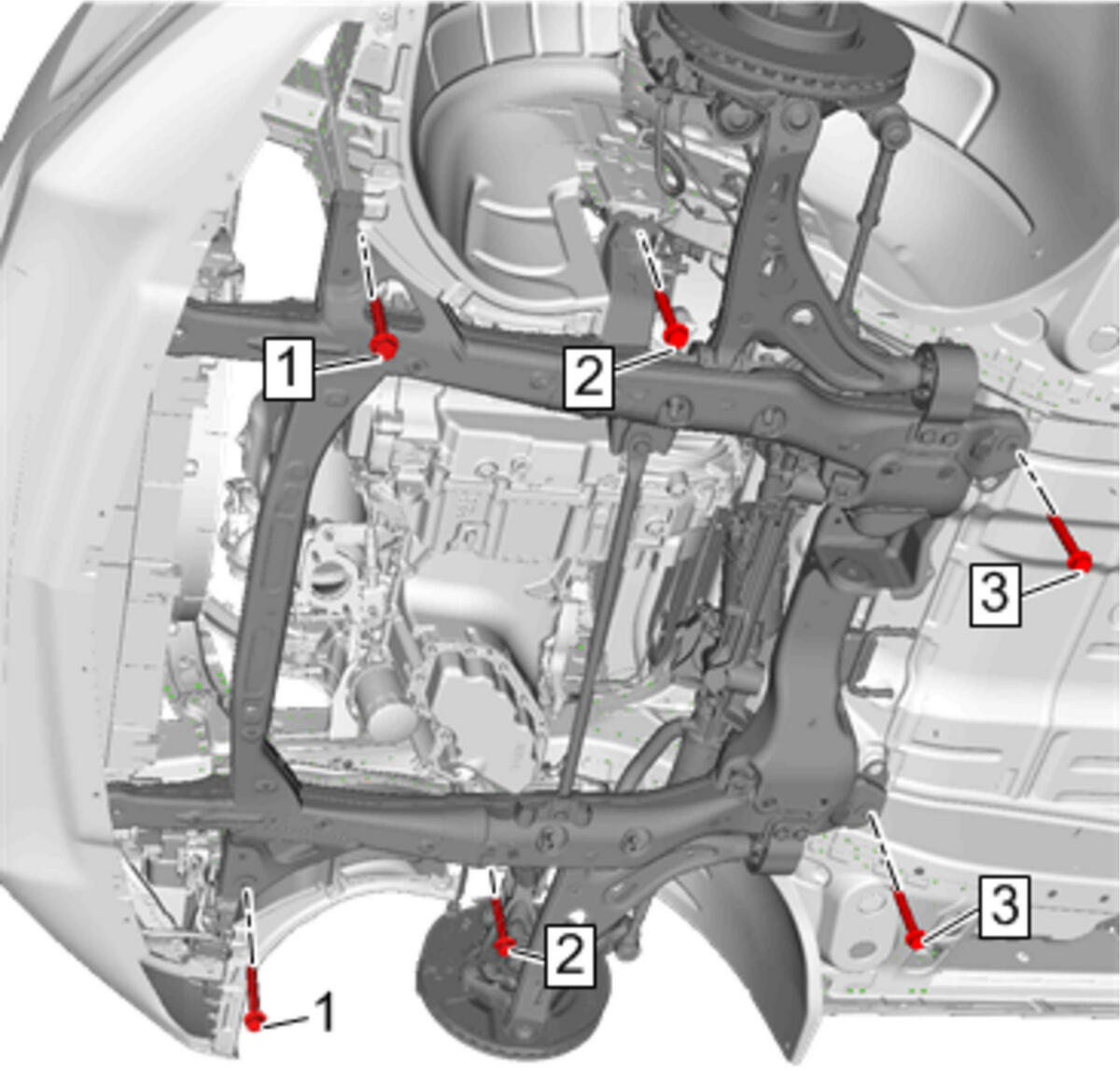

  7. Fig 2: Front Cradle Mounting Bolts
    GM4589451Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a suitable device to hold the cradle while installing the fasteners.

  8. Install fasteners (1) (2) and (3). Refer to Drivetrain and Front Suspension Cradle Replacement (Front Wheel Drive)Drivetrain and Front Suspension Cradle Replacement (All Wheel Drive)
  9. Connect electrical connections, hoses and reposition harnesses as needed.
  10. Install Transmission Fluid Cooler Inlet and Outlet Pipe @ Transmission. Refer to Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MNH, MHG)
  11. Install Radiator Surge Tank. Refer to Radiator Surge Tank Replacement (LH7 FWD)Radiator Surge Tank Replacement (LH7 AWD)

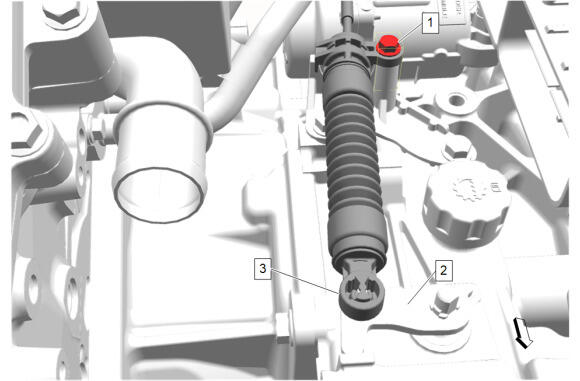

  12. Fig 3: Automatic Transmission Range Selector Lever Cable Terminal, Shift Lever And Clamp Bolt
    GM4592602Courtesy of GENERAL MOTORS COMPANY
  13. Install Automatic Transmission Range Selector Lever Cable Terminal (3) And Clamp Bolt (1) @ Transmission. Refer to Automatic Transmission Range Selector Lever Cable Replacement
  14. Fig 4: Power Steering Assist Motor And Electrical Connectors
    GM4084509Courtesy of GENERAL MOTORS COMPANY
  15. Connect Electrical Connectors (1) (Qty: 2) @ Power Steering Assist Motor (2)
  16. Install Front Wheel Drive Half Shaft-Right Side. Refer to Front Wheel Drive Half Shaft Replacement - Right Side (AWD)Front Wheel Drive Half Shaft Replacement - Right Side (M3U, MHG, MNH, MNK with FWD)

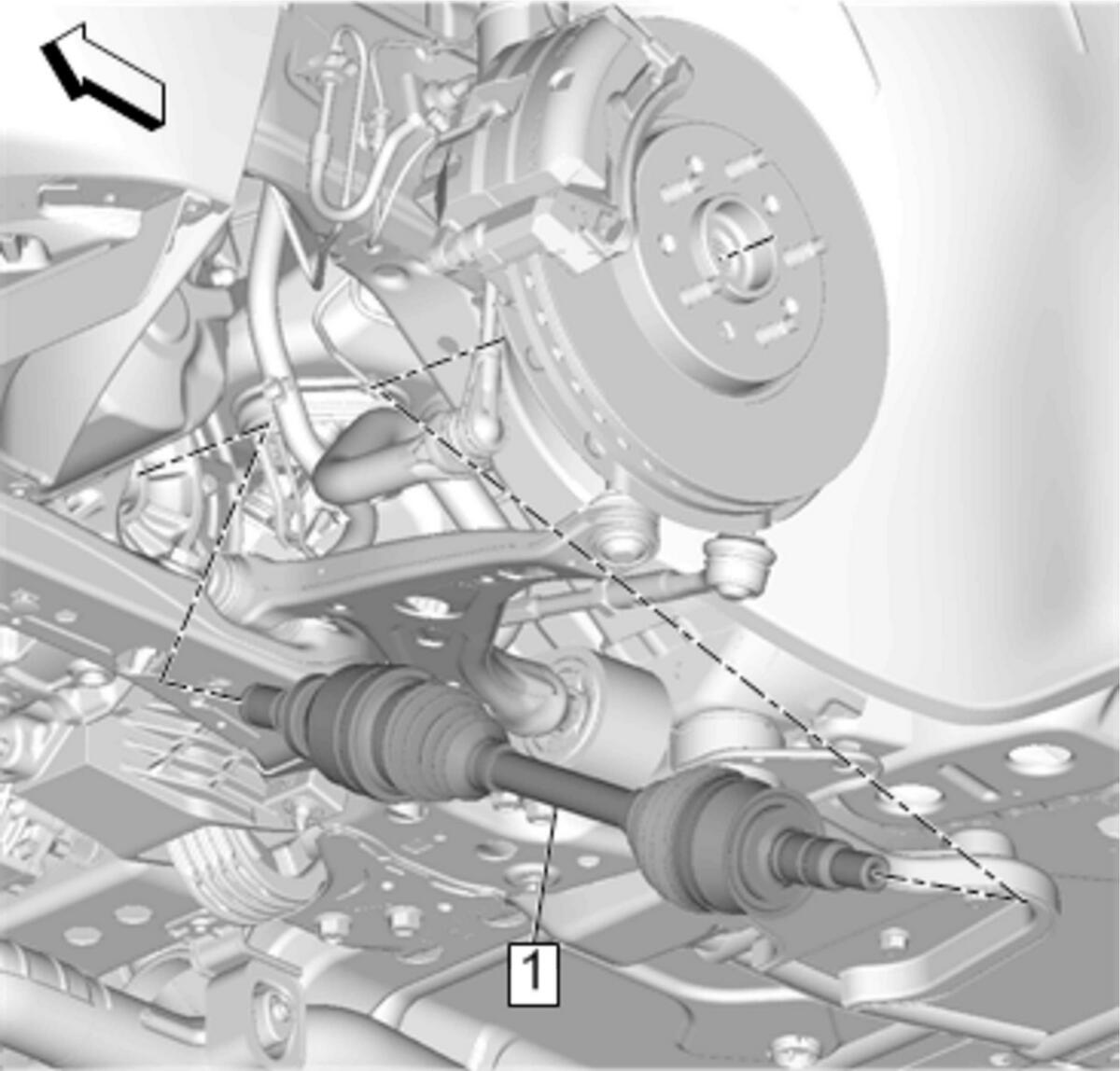

  17. Fig 5: Wheel Drive Shaft
    GM4672923Courtesy of GENERAL MOTORS COMPANY
  18. Install Front Wheel Drive Half Shaft-Left Side (1). Refer to Front Wheel Drive Half Shaft Replacement - Left Side
  19. Connect Stabilizer Shaft Link (Qty: 2) @ Stabilizer Shaft. Refer to Stabilizer Shaft Link Replacement (Equinox)Stabilizer Shaft Link Replacement (Terrain)
  20. Connect the steering intermediate shaft to the steering gear. Refer to Intermediate Steering Shaft Replacement (Equinox)Intermediate Steering Shaft Replacement (Terrain)
  21. Install Power Transfer Unit Case. Refer to Power Transfer Unit Case Replacement (MHG Transmission with LH7 Engine)
  22. CAUTION:

    Do not disconnect the nitrogen oxide sensor from the nitrogen oxide sensor control module. A separation of the two components may cause a defect on the nitrogen oxide sensor control module. Always replace the nitrogen oxide sensor along with the nitrogen oxide sensor control module as an assembly.

  23. Install Nitrogen Oxides Sensor - Position 1. Refer to Nitrogen Oxides Sensor Replacement - Position 1

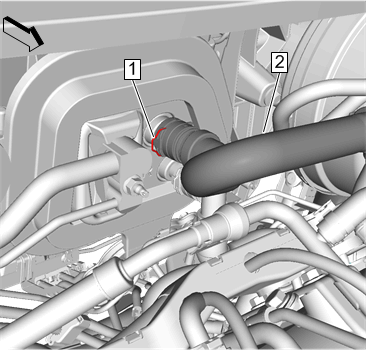

  24. Fig 6: Heater Inlet Hose And Retaining Clip
    GM4690862Courtesy of GENERAL MOTORS COMPANY
  25. Connect Heater Inlet Hose (2) @ Heater Core. Refer to Heater Inlet Hose Replacement (LH7 Terrain)Heater Inlet Hose Replacement (LH7 Equinox)

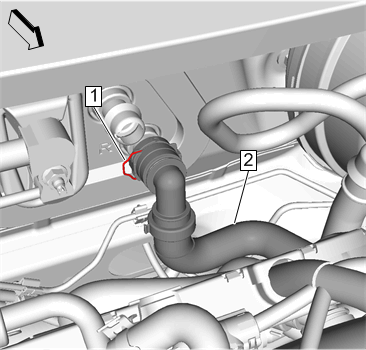

  26. Fig 7: Heater Outlet Hose And Retaining Clip
    GM4690943Courtesy of GENERAL MOTORS COMPANY
  27. Connect Heater Outlet Hose (2) @ Heater Core. Refer to Heater Outlet Hose Replacement (LH7)
  28. Fig 8: Fuel Feed Front Pipe
    GM4699212Courtesy of GENERAL MOTORS COMPANY
  29. Connect Fuel Feed Front Pipe (1) @ Fuel Feed Pipe. Refer to Fuel Feed Front Pipe Replacement
  30. Fig 9: Fuel Return Front Pipe
    GM4676776Courtesy of GENERAL MOTORS COMPANY
  31. Install Fuel Return Front Pipe (1). Refer to Fuel Return Front Pipe Replacement

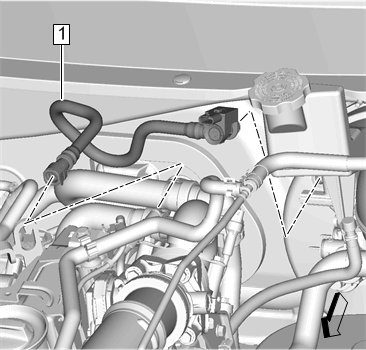

  32. Fig 10: Power Brake Booster Vacuum Pipe
    GM4677785Courtesy of GENERAL MOTORS COMPANY
  33. Install Power Brake Booster Vacuum Pipe (1). Refer to Power Brake Booster Vacuum Pipe Replacement (LH7)
  34. Fig 11: A/C Evaporator Connector Hose/Tube And Compressor Hose, Seals And Retaining Nut
    GM4690484Courtesy of GENERAL MOTORS COMPANY
  35. Connect Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Compressor. Refer to Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose Replacement (LH7)

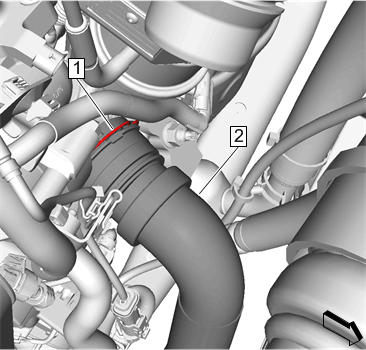

  36. Fig 12: Radiator Outlet Hose And Retaining Clip
    GM4677286Courtesy of GENERAL MOTORS COMPANY
  37. Connect Radiator Outlet Hose (2) @ Engine. Refer to Radiator Outlet Hose Replacement (LH7)

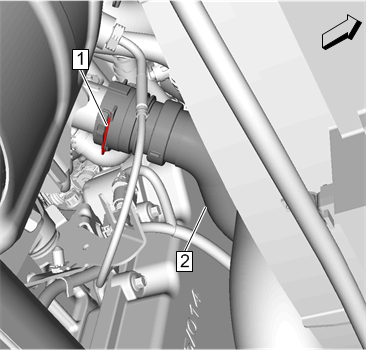

  38. Fig 13: Radiator Inlet Hose And Retaining Clip
    GM4677239Courtesy of GENERAL MOTORS COMPANY
  39. Connect Radiator Inlet Hose (2) @ Engine. Refer to Radiator Inlet Hose Replacement (LH7)

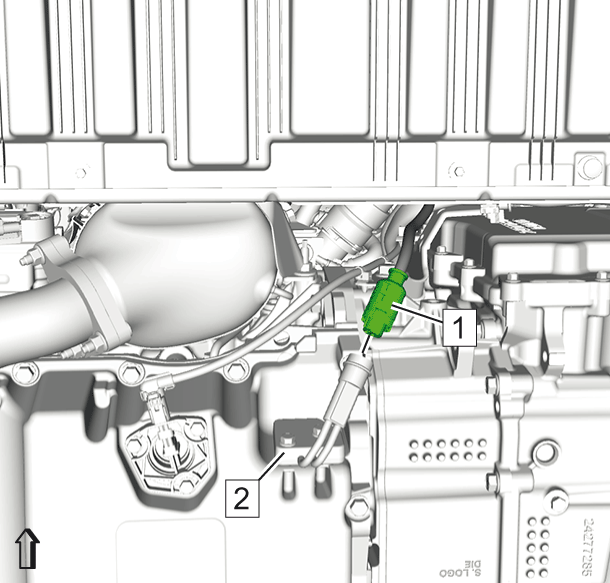

  40. Fig 14: Engine Oil Heater And Electrical Connector
    GM4375985Courtesy of GENERAL MOTORS COMPANY
  41. Connect the electrical connector (1) at the engine oil heater (2).
  42. Fig 15: Charge Air Cooler Outlet Air Tube And Retaining Clip
    GM4695620Courtesy of GENERAL MOTORS COMPANY
  43. Install Charge Air Cooler Outlet Air Tube (2). Refer to Charge Air Cooler Outlet Air Tube Replacement

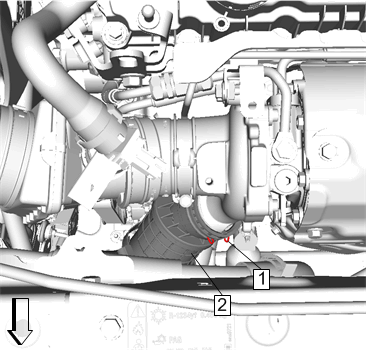

  44. Fig 16: Charge Air Cooler Inlet Air Tube And Retaining Clip
    GM4695617Courtesy of GENERAL MOTORS COMPANY
  45. Install Charge Air Cooler Inlet Air Tube (2). Refer to Charge Air Cooler Inlet Air Tube Replacement
  46. Install Exhaust Front Pipe. Refer to Exhaust Front Pipe Replacement (LH7)
  47. Install Battery Tray. Refer to Battery Tray Replacement
  48. Install Engine Wiring Harness Junction Block. Refer to Engine Wiring Harness Junction Block Replacement
  49. Fig 17: Air Cleaner Assembly And Fastener
    GM4675649Courtesy of GENERAL MOTORS COMPANY
  50. Install the air cleaner assembly (2). Refer to Air Cleaner Assembly Replacement
  51. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
  52. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
  53. Fill the cooling system. Refer to Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (Static)
  54. Recharge the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a)Refrigerant Recovery and Recharging (R-1234yf)
  55. Change the engine oil and filter. Refer to Engine Oil and Oil Filter Replacement
  56. When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References
