Air Cleaner Outlet Duct Replacement
WARNING: This page is about a different variant/trim than selected.

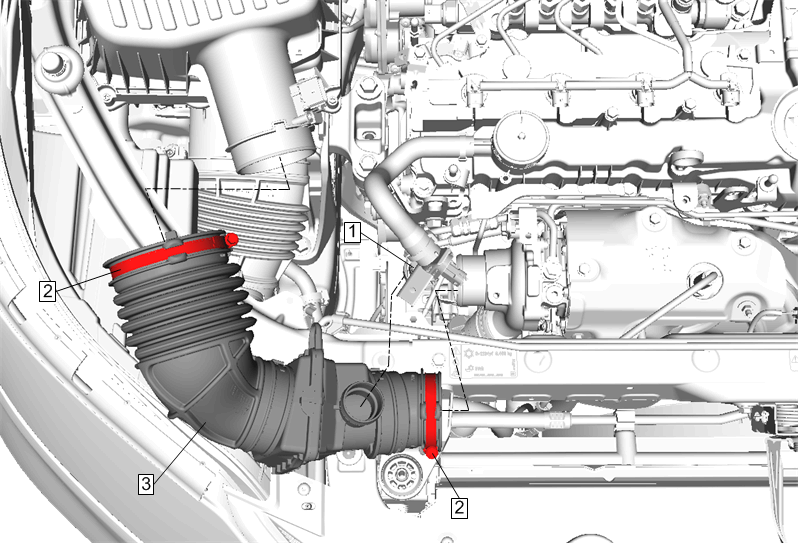

| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation Heater Procedure Disconnect Positive Crankcase Ventilation Heater @ Air Cleaner Outlet Duct |
| 2 | Air Cleaner Outlet Duct Clamp (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in) |
| 3 | Air Cleaner Outlet Duct Procedure Remove wiring harness from air cleaner outlet duct. |
